20UPGFC0134692

MODULE/TAB_CUTTING

Component Information

Serial Number	20UPGFC0134692
ProdDB ID	d3de9a…f081ba
LocalDB ID	65d9303e996084004284a985
Component Type	fe_chip
Parents	20UPGM23211391 20UPGB43200036
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/POST_PARYLENE_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	3 months ago
component ObjectId	65d9303e996084004284a985
Stage	MODULE/POST_PARYLENE_WARM
Test Type	TUNING
Institute ObjectId
User Name	Simpson,Liana Rae
ObjectId of this record	68bb7141274ad5ae5736324f
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
DCSdata	{}
QC_LAYER	L2

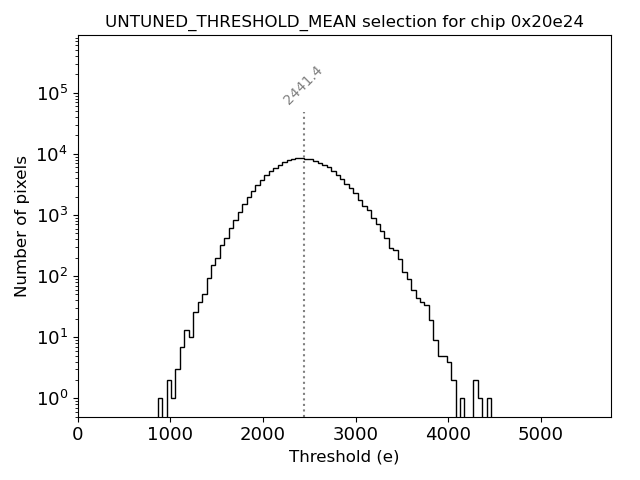

TUNING_UNTUNED_THRESHOLD_MEAN	2441.404
TUNING_UNTUNED_THRESHOLD_95_LOW	1773.226
TUNING_UNTUNED_THRESHOLD_95_HIGH	3164.243
TUNING_UNTUNED_THRESHOLD_SIGMA	352.0
TUNING_UNTUNED_TDAC_MEAN	0.0
TUNING_UNTUNED_TDAC_SIGMA	0.0

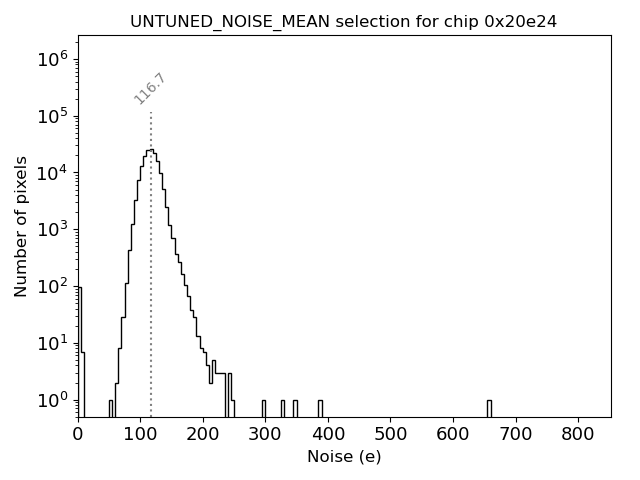

TUNING_UNTUNED_NOISE_MEAN	116.7
TUNING_UNTUNED_NOISE_SIGMA	13.125
TUNING_UNTUNED_NOISE_95_LOW	93.43
TUNING_UNTUNED_NOISE_95_HIGH	142.762

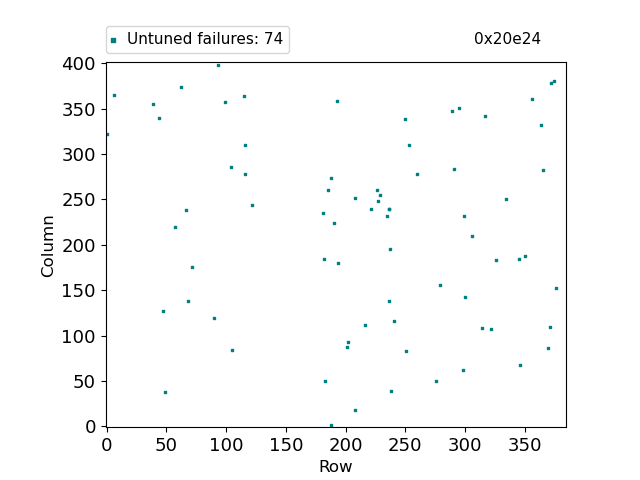

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	74

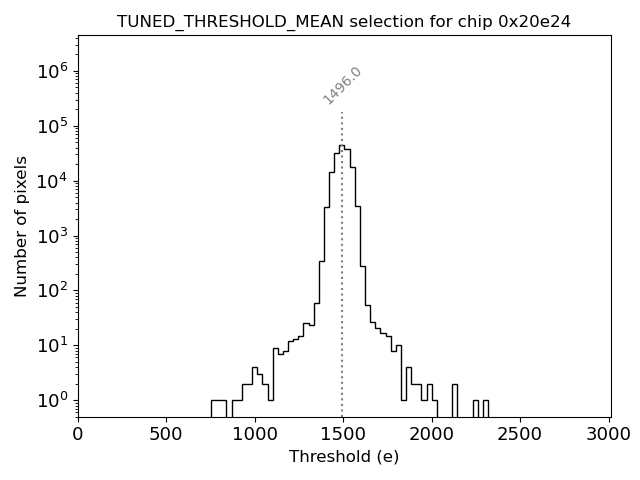

TUNING_TUNED_THRESHOLD_MEAN	1496.0
TUNING_TUNED_THRESHOLD_95_LOW	1421.076
TUNING_TUNED_THRESHOLD_95_HIGH	1565.986
TUNING_TUNED_THRESHOLD_SIGMA	39.0
TUNING_TUNED_TDAC_MEAN	-1.7

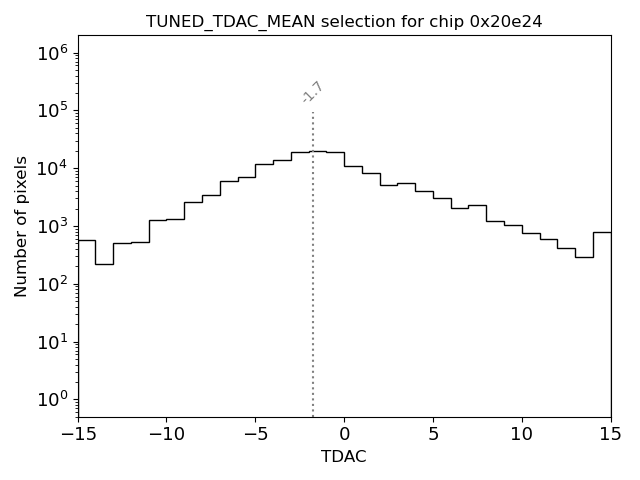

TUNING_TUNED_TDAC_SIGMA	4.351
TUNING_TUNED_NOISE_MEAN	120.617
TUNING_TUNED_NOISE_SIGMA	12.91
TUNING_TUNED_NOISE_95_LOW	96.74
TUNING_TUNED_NOISE_95_HIGH	145.551

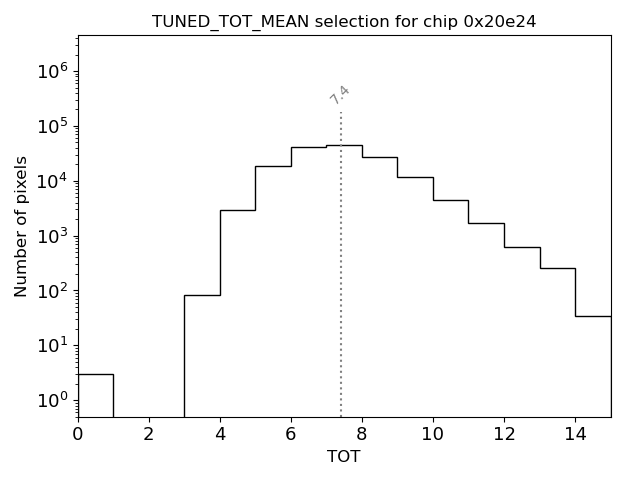

TUNING_TUNED_TOT_MEAN	7.4
TUNING_TUNED_TOT_SIGMA	0.4
TUNING_TUNED_TOT_95_LOW	5.0
TUNING_TUNED_TOT_95_HIGH	10.59

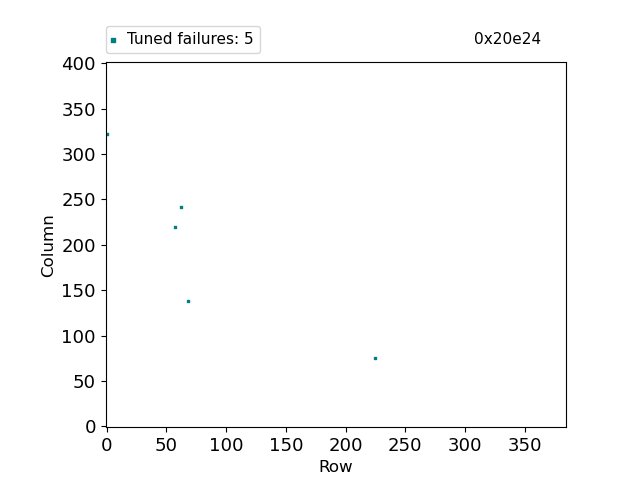

TUNING_TUNED_THRESHOLD_FAILED_FITS	5
ANALYSIS_VERSION	mqat v2.6.4
YARR_VERSION	v1.5.2
MEASUREMENT_DATE	2025-03-07T18:20:46.000+00:00
MEASUREMENT_DURATION	694

Attachments

Filename	Contents
output.log	Download
0x20e24.log	Download
20UPGFC0134692_MODULE__POST_PARYLENE_WARM_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record
