Database for ITk Pixel Module

Serial Number	20UPGFC0133752
ProdDB ID	ed9037…905372
LocalDB ID	65d8eee399608400427c9066
Component Type	fe_chip
Parents	20UPGM23211199 20UPGB43200080
Children	No match.
Flags

Item	Value
Wafer serial number	None

Key	Data
QC Passed	True
Date	8 months ago
component ObjectId	65d8eee399608400427c9066
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	SimoneRavera
ObjectId of this record	680ff505e8df8e3fba80ebc5
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.4.1
YARR_VERSION	v1.5.2-142-g3c65b07f
MEASUREMENT_DATE	2025-01-22T20:28:52.000+00:00
MEASUREMENT_DURATION	-1
QC_LAYER	L2

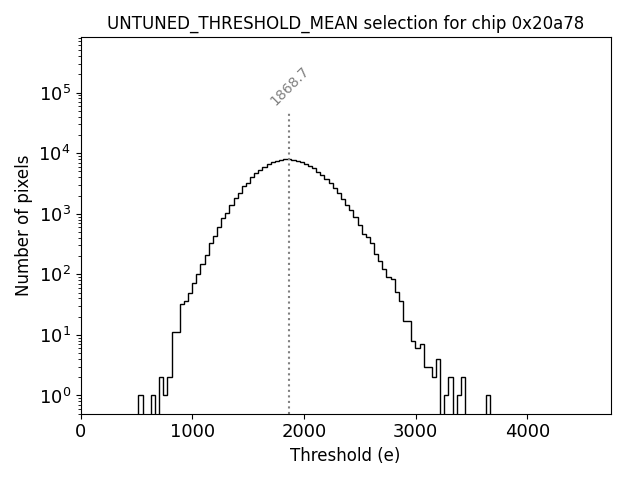

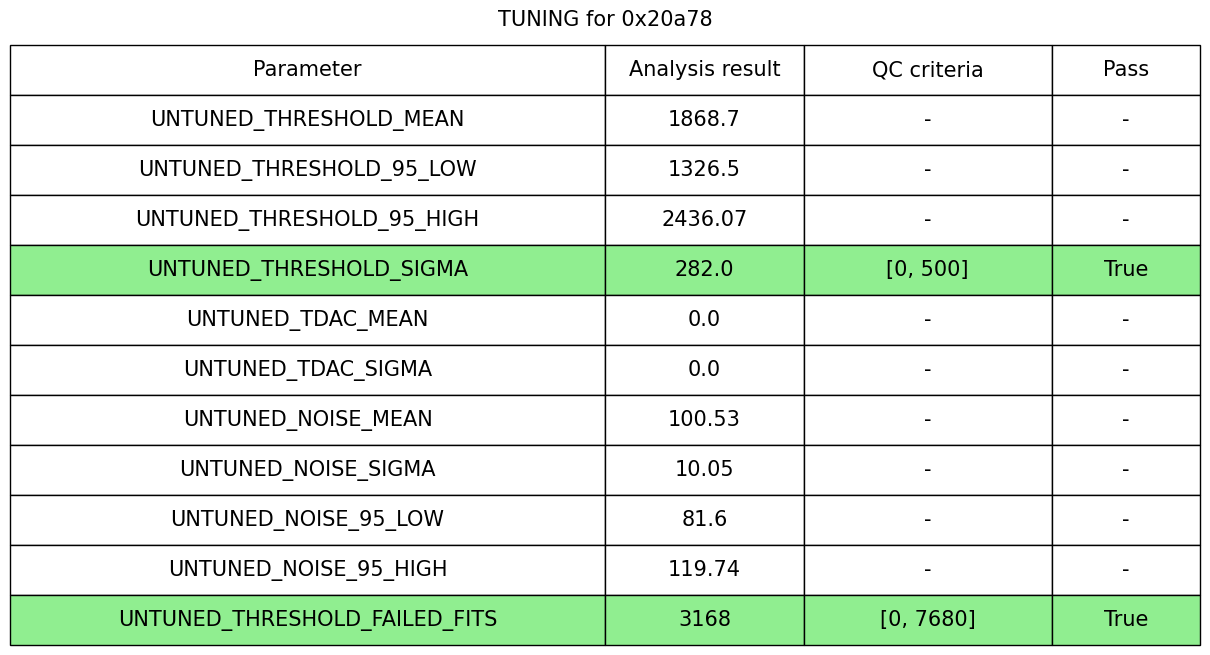

TUNING_UNTUNED_THRESHOLD_MEAN	1868.701
TUNING_UNTUNED_THRESHOLD_95_LOW	1326.505
TUNING_UNTUNED_THRESHOLD_95_HIGH	2436.067
TUNING_UNTUNED_THRESHOLD_SIGMA	282.0
TUNING_UNTUNED_TDAC_MEAN	0.0
TUNING_UNTUNED_TDAC_SIGMA	0.0

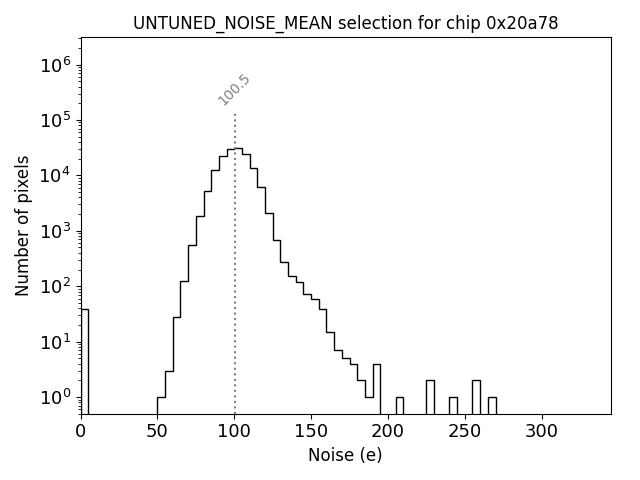

TUNING_UNTUNED_NOISE_MEAN	100.526
TUNING_UNTUNED_NOISE_SIGMA	10.055
TUNING_UNTUNED_NOISE_95_LOW	81.605
TUNING_UNTUNED_NOISE_95_HIGH	119.736
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	3168

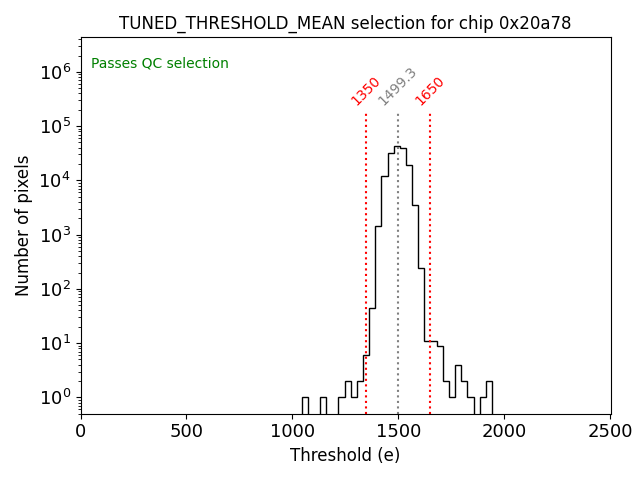

TUNING_TUNED_THRESHOLD_MEAN	1499.3
TUNING_TUNED_THRESHOLD_95_LOW	1431.121
TUNING_TUNED_THRESHOLD_95_HIGH	1566.263
TUNING_TUNED_THRESHOLD_SIGMA	36.0

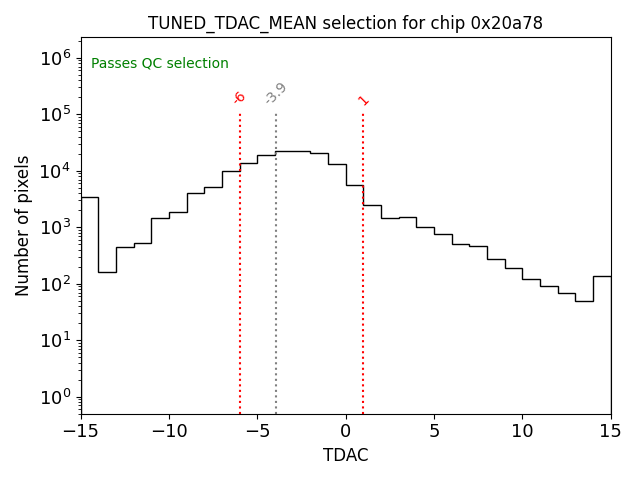

TUNING_TUNED_TDAC_MEAN	-3.9
TUNING_TUNED_TDAC_SIGMA	3.527

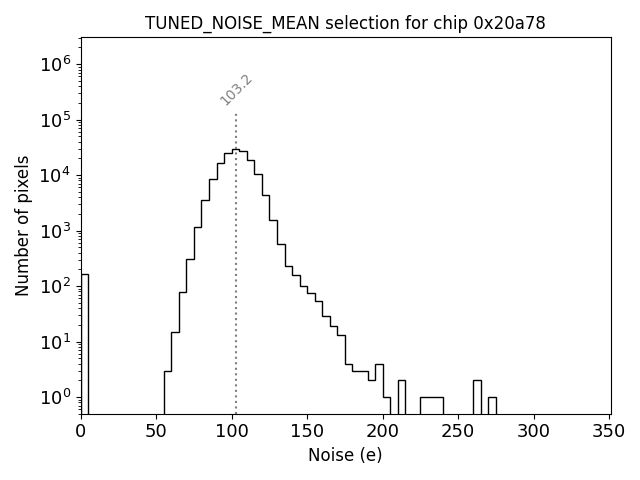

TUNING_TUNED_NOISE_MEAN	103.18
TUNING_TUNED_NOISE_SIGMA	10.878
TUNING_TUNED_NOISE_95_LOW	83.344
TUNING_TUNED_NOISE_95_HIGH	123.339

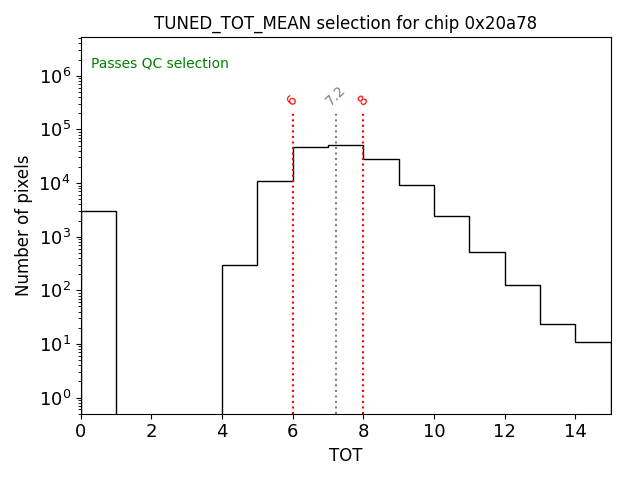

TUNING_TUNED_TOT_MEAN	7.2
TUNING_TUNED_TOT_SIGMA	0.3
TUNING_TUNED_TOT_95_LOW	5.0
TUNING_TUNED_TOT_95_HIGH	9.88
TUNING_TUNED_THRESHOLD_FAILED_FITS	3074

Filename	Contents
output.log	Download
0x20a78.log	Download
20UPGFC0133752_MODULE__INITIAL_WARM_TUNING.zip	Download

Expand ProductionDB Record
