20UPGFC0133515

MODULE/TAB_CUTTING

Component Information

Serial Number	20UPGFC0133515
ProdDB ID	1feba0…660ffe
LocalDB ID	65d8df19ba853e0042613998
Component Type	fe_chip
Parents	20UPGM23211208 20UPGB43200031
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	None
Target Iref trim	None
Target Iref trim version	None

Comments

Test: MIN_HEALTH_TEST QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	8 months ago
component ObjectId	65d8df19ba853e0042613998
Stage	MODULE/FINAL_WARM
Test Type	MIN_HEALTH_TEST
Institute ObjectId
User Name	GiuseppeCarratta
ObjectId of this record	67fd116921e76e82d6f42000
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.4.1
MEASUREMENT_DATE	2025-03-13T09:20:19.000+00:00
MEASUREMENT_DURATION	397
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.2-319-g7fdbc94b
MIN_HEALTH_BAD_ANALOG	1
MIN_HEALTH_BAD_DIGITAL	0
MIN_HEALTH_COLUMN_DISABLED	0
MIN_HEALTH_DEAD_ANALOG	2
MIN_HEALTH_DEAD_DIGITAL	0
MIN_HEALTH_HIGH_ENC	1
MIN_HEALTH_HIGH_ENC_INDEPENDENT	1
MIN_HEALTH_NOISE_MEAN	103.33
MIN_HEALTH_NOISE_SIGMA	10.68
MIN_HEALTH_THRESHOLD_FAILED_FITS	39
MIN_HEALTH_THRESHOLD_FAILED_FITS_INDEPENDENT	42
MIN_HEALTH_THRESHOLD_MEAN	1485.11
MIN_HEALTH_THRESHOLD_SIGMA	35.72
MIN_HEALTH_TOT_MEAN	7.68
MIN_HEALTH_TOT_SIGMA	1.29

Attachments

Filename	Contents
output.log	Download
0x2098b.log	Download
20UPGFC0133515_MODULE__FINAL_WARM_MIN-HEALTH-TEST.zip	Download

ProductionDB Record

Expand ProductionDB Record

67fd129ede23ed694610cf78

state

ready

stateTs

2025-04-14T13:50:22.033Z

stateUserIdentity

8938-2592-1

date

2025-04-14T13:45:00.000Z

testType

id	6393a08a15838700361eec84
code	MIN_HEALTH_TEST
name	Minimal Health Test
state	active

institution

id	5ecf145593e5ee000a0e5acd
code	INFN_BOLOGNA
name	INFN Bologna

user

id	61b33a3e3be1da000a92e660
userIdentity	8938-2592-1
firstName	Giuseppe
middleName
lastName	Carratta

runNumber

67fd116921e76e82d6f42000

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Min Health Test Analysis Version	string	None	True	2.4.1	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-03-13T09:20:19.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	397	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.2-319-g7fdbc94b	None	None

results

code MIN_HEALTH_BAD_ANALOG
name Number of bad pixels from analog scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1
associateChild None
code MIN_HEALTH_BAD_DIGITAL
name Number of bad pixels from digital scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code MIN_HEALTH_COLUMN_DISABLED
name Number of pixels in disabled core columns
order 1
dataType integer
valueType single
arrayDimensions None
additional False
rangeMin None
rangeMax None
value 0
associateChild None
code MIN_HEALTH_DEAD_ANALOG
name Number of dead pixels from analog scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 2
associateChild None
code MIN_HEALTH_DEAD_DIGITAL
name Number of dead pixels from digital scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 0
associateChild None
code MIN_HEALTH_HIGH_ENC
name Number of pixels with High ENC
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1
associateChild None
code MIN_HEALTH_HIGH_ENC_INDEPENDENT
name Number of pixels with High ENC
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1
associateChild None
code MIN_HEALTH_NOISE_MEAN
name Noise mean
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 103.33
associateChild None
code MIN_HEALTH_NOISE_SIGMA
name Noise sigma
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 10.68
associateChild None
code MIN_HEALTH_THRESHOLD_FAILED_FITS
name Number of failed fits from threshold scan
dataType integer
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 39
associateChild None

code	MIN_HEALTH_THRESHOLD_FAILED_FITS_INDEPENDENT
name	Number of failed fits from threshold scan
dataType	integer
valueType	single
arrayDimensions	None
additional	None
rangeMin	None
rangeMax	None
value	42
associateChild	None

code MIN_HEALTH_THRESHOLD_MEAN
name Mean of threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1485.11
associateChild None
code MIN_HEALTH_THRESHOLD_SIGMA
name Sigma of threshold distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 35.72
associateChild None
code MIN_HEALTH_TOT_MEAN
name Mean of ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 7.68
associateChild None
code MIN_HEALTH_TOT_SIGMA
name Sigma of ToT distribution
dataType float
valueType single
arrayDimensions None
additional None
rangeMin None
rangeMax None
value 1.29
associateChild None

cts

2025-04-14T13:50:22.033Z

sys

cts	2025-04-14T13:50:22.033Z
mts	2025-04-14T13:50:22.434Z
rev	1

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

89e01730d69432401cc06f1d92827445

2025-04-14T13:50:22.434Z

TestRun_67fd129ede23ed694610cf78_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_67fd129ede23ed694610cf78_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/8/9/e/89e01730d69432401cc06f1d92827445?authz=zteos64:MDAwMDAyYjh4nO1QvUrDUBilBX_oJE7S6UMcREhyb9o0yYdDB1Ho4GBxChluem_akDb3ktyi1GfwPRwdOwkOfQDBVVxEHVQKvoBpcXBwdPTjcIbDOR-HU5tVa5V84_b9dbZaX0l0qvh2daJ2K3bDErKwmB6yb-6JPOvncqx4UqQWF9oo7ZbKJTd4ZHmWb4nODmOEOS7tGZ4f2walMTFYM_IXFBPq-i3X9k_uKsFhnkBXKAAHiI1OCRdsYjshjBOOtElbHg2WdULoL5QGcYOJCkEnXGQacym1aftNzyUuUmJ7pB0gxuWhQ01KW6bvmZSEkLGRwOUj4BlCWVdjmkcOMKUQBrLQ-HuQyxFLMvyh9IVEKMZcIgGds55AkFkkBmwY4yY87l2ELw_T64_R_k3ncv346PxsGt6fHnS3qp_tdP5W_1_6T5aGp6v589oXax_bWA%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/8/9/e/89e01730d69432401cc06f1d92827445

89e01730d69432401cc06f1d92827445

id	61b33a3e3be1da000a92e660
userIdentity	8938-2592-1
firstName	Giuseppe
middleName
lastName	Carratta

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

trashedUserIdentity

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

65d8df19ba853e0042613998

1feba0e46026c46f15672f4205660ffe

ready

2024-02-23T18:08:25.697Z

9024-6168-1

False

None

False

None

20UPGFC0133515

None

parent

component

6720fc48cdff110042194ad1

code

ba460f101616f32e24fd8beb8d60836c

state

ready

stateTs

2024-10-29T15:16:24.494Z

stateUserIdentity

23-6780-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB43200031

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/FINAL_COLD
name	Final Cold

highestLevelParent

component

67506ad04457d9315d982a1e

code

d84b34080f99885dcb0690f31d9f0438

state

ready

stateTs

2024-12-04T14:44:32.072Z

stateUserIdentity

1291-1033-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM23211208

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/FINAL_COLD
name	Final Cold

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V2
name	ITkpix_V2

None

code	MODULE/FINAL_WARM
name	Final Warm
order	19
initial	False
final	False

code	BONN
name	University of Bonn

Current Stage: Module PCB tab cutting

Test Type	Local Result
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!

Candidate TestRuns of this Stage

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
67fd11…f41f71	INJECTION_CAPACITANCE	Pass	GiuseppeCarratta	9 months ago	8 months ago	2.4.1	No tags	Selected
67fd11…f41f45	LP_MODE	Pass	GiuseppeCarratta	9 months ago	8 months ago	2.4.1	No tags	Selected
67fd11…f42119	TUNING	Pass	GiuseppeCarratta	N/A	8 months ago	2.4.1	No tags	Selected
67fd11…f42222	PIXEL_FAILURE_ANALYSIS	Pass	GiuseppeCarratta	N/A	8 months ago	2.4.1	No tags	Selected
67fd11…f42000	MIN_HEALTH_TEST	Pass	GiuseppeCarratta	N/A	8 months ago	2.4.1	No tags	Selected
67fd11…f42279	DATA_TRANSMISSION	Pass	GiuseppeCarratta	9 months ago	8 months ago	2.4.1	No tags	Selected
67fd11…f41e95	VCAL_CALIBRATION	Pass	GiuseppeCarratta	9 months ago	8 months ago	2.4.1	No tags	Selected
67fd11…f41e5d	SLDO	Pass	GiuseppeCarratta	9 months ago	8 months ago	2.4.1	No tags	Selected
67fd11…f41f0d	ANALOG_READBACK	Pass	GiuseppeCarratta	9 months ago	8 months ago	2.4.1	No tags	Selected
67fd11…f41e35	ADC_CALIBRATION	Pass	GiuseppeCarratta	9 months ago	8 months ago	2.4.1	No tags	Selected

Past QC Stages and Results

Module reception (MODULE/RECEPTION)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	No result	N/A

Module Complete (MODULE/COMPLETE)

Modules damaged, impossible to recover (MODULE/GRAVEYARD)

Stage for QA modules and others not to be considered in yield calculation (MODULE/NOTCONSIDEREDINYIELDS)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Modules failed test, needs investigation (MODULE/UNHAPPY)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Ranking of the module (MODULE/QC_STATUS)

Final flatness measurement (MODULE/FINAL_METROLOGY)

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
Tuning (TUNING)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
6846f7…66a450	MODULE/RECEPTION	DATA_TRANSMISSION	stefaniaSpagnolo	6 months ago	6 months ago	No tags	Selected
6846f8…66a48c	MODULE/RECEPTION	SLDO	stefaniaSpagnolo	6 months ago	6 months ago	No tags	Selected
6846fb…66a799	MODULE/RECEPTION	PIXEL_FAILURE_ANALYSIS	stefaniaSpagnolo	N/A	6 months ago	No tags	Selected
6846fb…66a6ae	MODULE/RECEPTION	MIN_HEALTH_TEST	stefaniaSpagnolo	N/A	6 months ago	No tags	Selected
67fd11…f41e0d	MODULE/FINAL_COLD	DATA_TRANSMISSION	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd11…f41db4	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	GiuseppeCarratta	N/A	8 months ago	No tags	Selected
67fd10…f41b9c	MODULE/FINAL_COLD	MIN_HEALTH_TEST	GiuseppeCarratta	N/A	8 months ago	No tags	Selected
67fd11…f41cac	MODULE/FINAL_COLD	TUNING	GiuseppeCarratta	N/A	8 months ago	No tags	Selected
67fd10…f41ae5	MODULE/FINAL_COLD	LP_MODE	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd10…f41b15	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd10…f41a2d	MODULE/FINAL_COLD	VCAL_CALIBRATION	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd10…f419f1	MODULE/FINAL_COLD	SLDO	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd10…f41aa9	MODULE/FINAL_COLD	ANALOG_READBACK	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd10…f419c5	MODULE/FINAL_COLD	ADC_CALIBRATION	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd11…f41f71	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd11…f41f45	MODULE/FINAL_WARM	LP_MODE	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd11…f42119	MODULE/FINAL_WARM	TUNING	GiuseppeCarratta	N/A	8 months ago	No tags	Selected
67fd11…f42222	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	GiuseppeCarratta	N/A	8 months ago	No tags	Selected
67fd11…f42000	MODULE/FINAL_WARM	MIN_HEALTH_TEST	GiuseppeCarratta	N/A	8 months ago	No tags	Selected
67fd11…f42279	MODULE/FINAL_WARM	DATA_TRANSMISSION	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd11…f41e95	MODULE/FINAL_WARM	VCAL_CALIBRATION	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd11…f41e5d	MODULE/FINAL_WARM	SLDO	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd11…f41f0d	MODULE/FINAL_WARM	ANALOG_READBACK	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67fd11…f41e35	MODULE/FINAL_WARM	ADC_CALIBRATION	GiuseppeCarratta	9 months ago	8 months ago	No tags	Selected
67d83f…ba5323	MODULE/THERMAL_CYCLES	PIXEL_FAILURE_ANALYSIS	CarlaSbarra	N/A	9 months ago	No tags	Selected
67d83f…ba524e	MODULE/THERMAL_CYCLES	MIN_HEALTH_TEST	CarlaSbarra	N/A	9 months ago	No tags	Selected
67d836…ba4d30	MODULE/POST_PARYLENE_COLD	INJECTION_CAPACITANCE	CarlaSbarra	9 months ago	9 months ago	No tags	Selected
67d839…ba4fb7	MODULE/POST_PARYLENE_COLD	PIXEL_FAILURE_ANALYSIS	CarlaSbarra	N/A	9 months ago	No tags	Selected
67d839…ba4eae	MODULE/POST_PARYLENE_COLD	TUNING	CarlaSbarra	N/A	9 months ago	No tags	Selected
67d837…ba4dd7	MODULE/POST_PARYLENE_COLD	MIN_HEALTH_TEST	CarlaSbarra	N/A	9 months ago	No tags	Selected
67d836…ba4c66	MODULE/POST_PARYLENE_COLD	SLDO	CarlaSbarra	9 months ago	9 months ago	No tags	Selected
67d836…ba4d71	MODULE/POST_PARYLENE_COLD	DATA_TRANSMISSION	CarlaSbarra	9 months ago	9 months ago	No tags	Selected
67d836…ba4c9a	MODULE/POST_PARYLENE_COLD	LP_MODE	CarlaSbarra	9 months ago	9 months ago	No tags	Selected
67d836…ba4ce0	MODULE/POST_PARYLENE_COLD	VCAL_CALIBRATION	CarlaSbarra	9 months ago	9 months ago	No tags	Selected
67d836…ba4bfa	MODULE/POST_PARYLENE_COLD	ANALOG_READBACK	CarlaSbarra	9 months ago	9 months ago	No tags	Selected
67d836…ba4b6a	MODULE/POST_PARYLENE_COLD	ADC_CALIBRATION	CarlaSbarra	9 months ago	9 months ago	No tags	Selected
67b609…75cf1f	MODULE/POST_PARYLENE_WARM	LP_MODE	AnnaRaquel Petri	10 months ago	9 months ago	No tags	Selected
67b6fe…75d2b2	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	AnnaRaquel Petri	N/A	9 months ago	No tags	Selected
67b610…75d16e	MODULE/POST_PARYLENE_WARM	TUNING	AnnaRaquel Petri	N/A	9 months ago	No tags	Selected
67b60d…75cfab	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	AnnaRaquel Petri	N/A	9 months ago	No tags	Selected
67b607…75cef9	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	AnnaRaquel Petri	10 months ago	9 months ago	No tags	Selected
67b609…75cf47	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	AnnaRaquel Petri	10 months ago	9 months ago	No tags	Selected
67b607…75cec4	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	AnnaRaquel Petri	10 months ago	9 months ago	No tags	Selected
67b604…75ce85	MODULE/POST_PARYLENE_WARM	SLDO	AnnaRaquel Petri	10 months ago	9 months ago	No tags	Selected
67c5df…4d94ac	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	AnnaRaquel Petri	10 months ago	9 months ago	No tags	Selected
67b5f3…75cdbc	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	AnnaRaquel Petri	10 months ago	9 months ago	No tags	Selected
679cfb…86c96c	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	AnnaRaquel Petri	N/A	10 months ago	No tags	Selected
679cf4…86c809	MODULE/INITIAL_WARM	TUNING	AnnaRaquel Petri	N/A	10 months ago	No tags	Selected
679cf2…86c712	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	AnnaRaquel Petri	N/A	10 months ago	No tags	Selected
679ceb…86c552	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	AnnaRaquel Petri	11 months ago	10 months ago	No tags	Selected
679cec…86c5d0	MODULE/INITIAL_WARM	DATA_TRANSMISSION	AnnaRaquel Petri	11 months ago	10 months ago	No tags	Selected
679cec…86c5a6	MODULE/INITIAL_WARM	LP_MODE	AnnaRaquel Petri	11 months ago	10 months ago	No tags	Selected
679cea…86c506	MODULE/INITIAL_WARM	VCAL_CALIBRATION	AnnaRaquel Petri	11 months ago	10 months ago	No tags	Selected
679ce7…86c4ba	MODULE/INITIAL_WARM	SLDO	AnnaRaquel Petri	11 months ago	10 months ago	No tags	Selected
679ce3…86c43d	MODULE/INITIAL_WARM	ANALOG_READBACK	AnnaRaquel Petri	11 months ago	10 months ago	No tags	Selected
679cd7…86c225	MODULE/INITIAL_WARM	ADC_CALIBRATION	AnnaRaquel Petri	11 months ago	10 months ago	No tags	Selected
65d8e0…7c683b	TESTONWAFER	FECHIP_TEST	KonstantinMauer	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0133515

MODULE/TAB_CUTTING

Component Information

Wafer

Properties

Comments

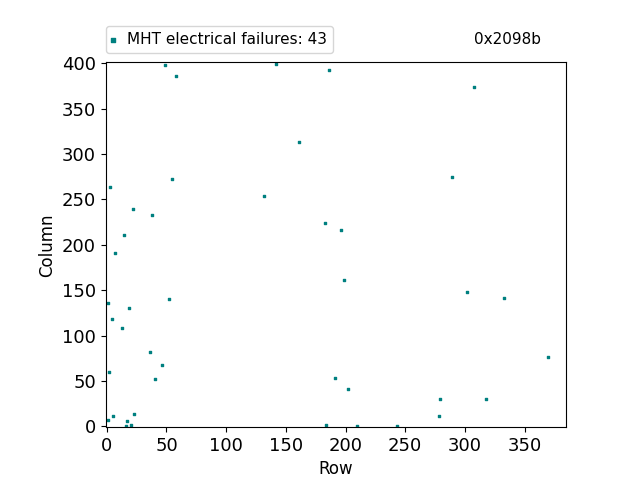

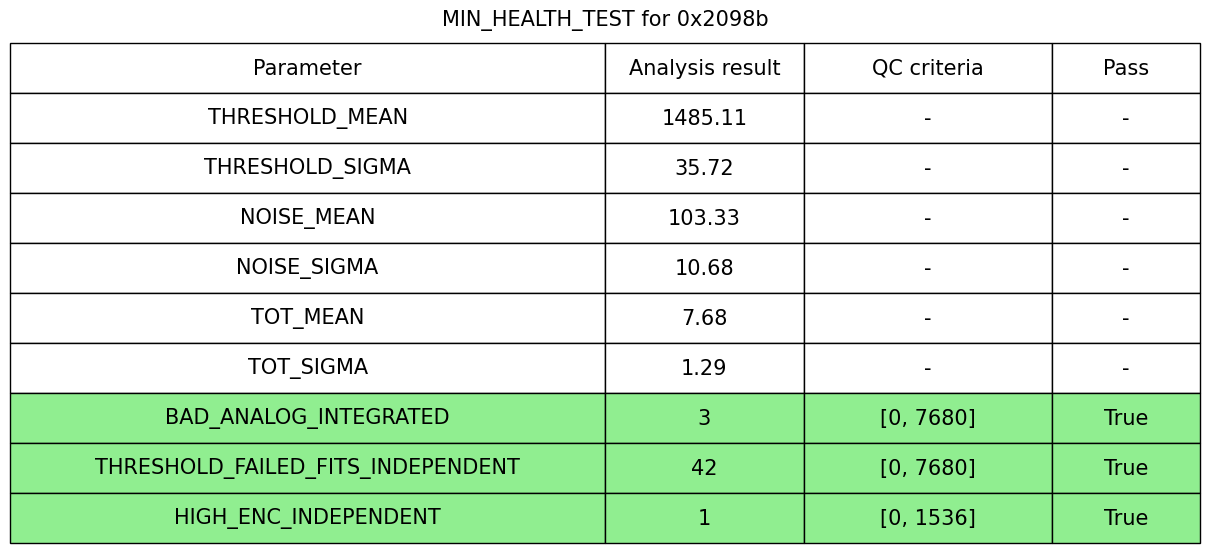

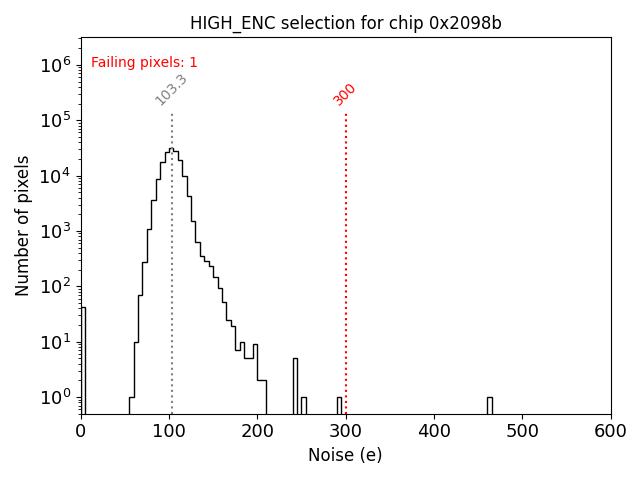

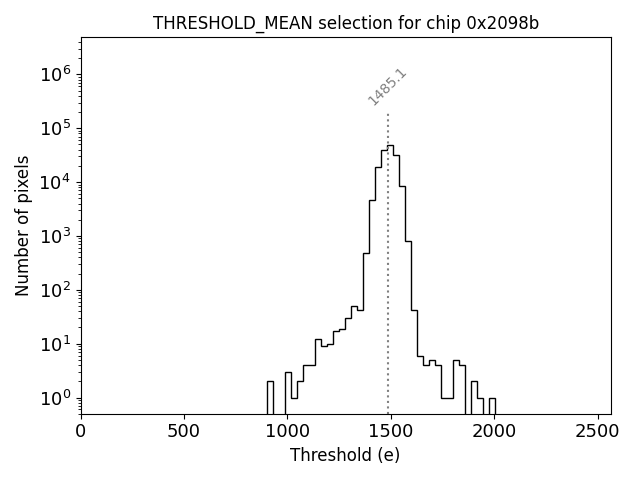

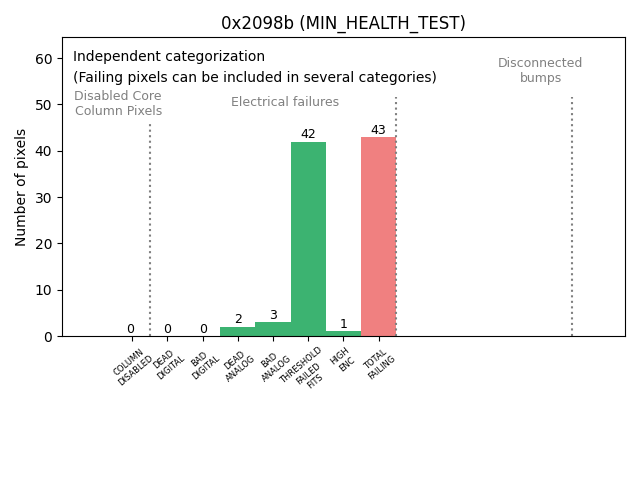

Test: MIN_HEALTH_TEST QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Module PCB tab cutting

Candidate TestRuns of this Stage

Past QC Stages and Results

Module reception (MODULE/RECEPTION)

Module Complete (MODULE/COMPLETE)

Modules damaged, impossible to recover (MODULE/GRAVEYARD)

Stage for QA modules and others not to be considered in yield calculation (MODULE/NOTCONSIDEREDINYIELDS)

Modules failed test, needs investigation (MODULE/UNHAPPY)

Ranking of the module (MODULE/QC_STATUS)

Final flatness measurement (MODULE/FINAL_METROLOGY)

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
