Database for ITk Pixel Module

Serial Number	20UPGFC0136026
ProdDB ID	ee9f07…1d33e8
LocalDB ID	657b1118822c6e00428f3bf8
Component Type	fe_chip
Parents	20UPIR63102150 20UPGBS3936026
Children	No match.
Flags

Item	Value
Wafer serial number	None

Key	Data
QC Passed	False
Date	a year ago
component ObjectId	657b1118822c6e00428f3bf8
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	NirajKakoty
ObjectId of this record	6759764d5872447d76dca6db
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.9
MEASUREMENT_DATE	2024-12-05T15:00:00.000+00:00
YARR_VERSION	v1.5.2

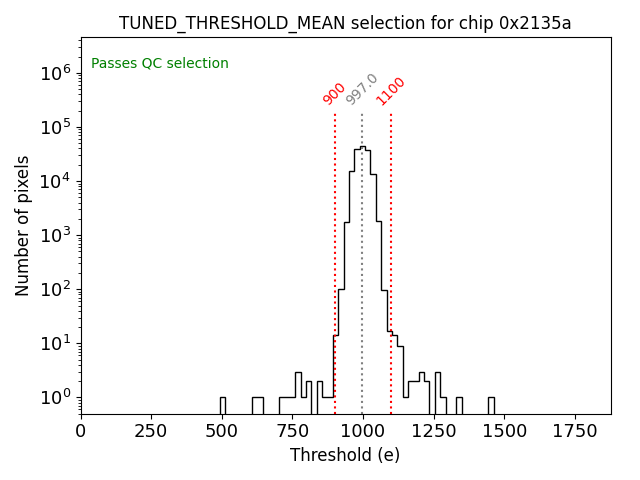

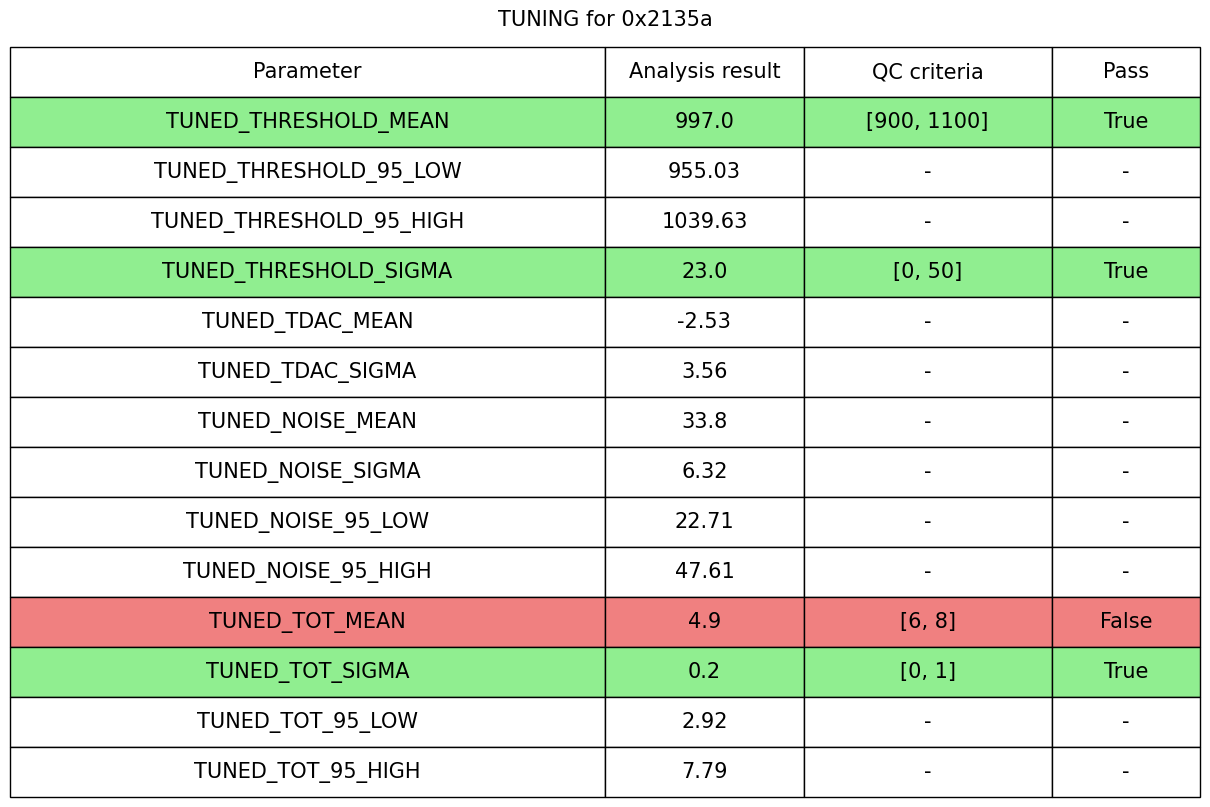

TUNING_TUNED_NOISE_95_HIGH	47.606
TUNING_TUNED_NOISE_95_LOW	22.709

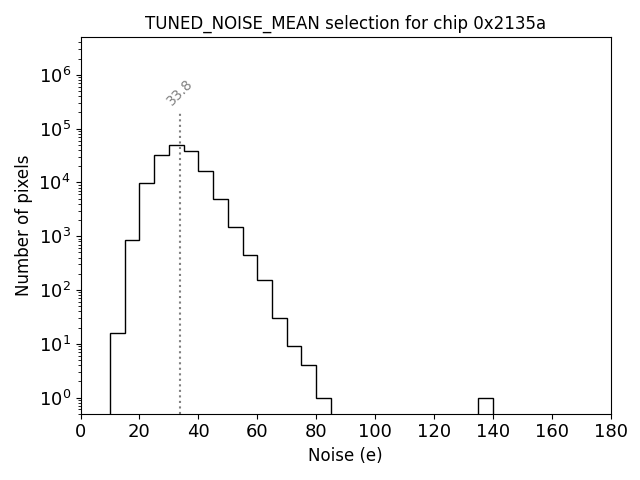

TUNING_TUNED_NOISE_MEAN	33.801
TUNING_TUNED_NOISE_SIGMA	6.319
TUNING_TUNED_TDAC_MEAN	-2.53
TUNING_TUNED_TDAC_SIGMA	3.558
TUNING_TUNED_THRESHOLD_95_HIGH	1039.632
TUNING_TUNED_THRESHOLD_95_LOW	955.029
TUNING_TUNED_THRESHOLD_FAILED_FITS	1
TUNING_TUNED_THRESHOLD_MEAN	997
TUNING_TUNED_THRESHOLD_SIGMA	23
TUNING_TUNED_TOT_95_HIGH	7.79
TUNING_TUNED_TOT_95_LOW	2.92

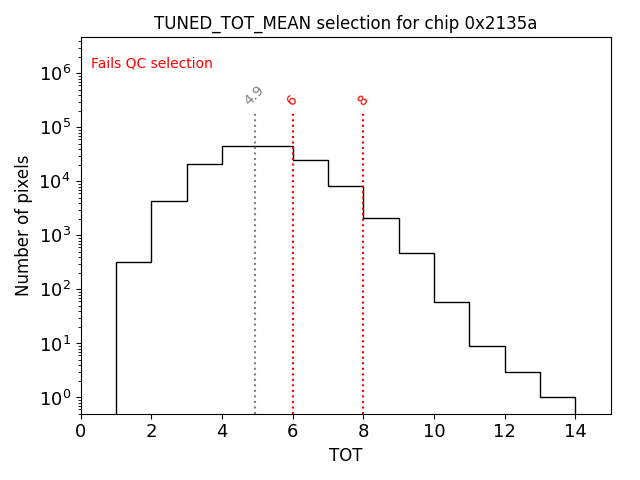

TUNING_TUNED_TOT_MEAN	4.9
TUNING_TUNED_TOT_SIGMA	0.2
TUNING_UNTUNED_NOISE_95_HIGH	47.651
TUNING_UNTUNED_NOISE_95_LOW	2.313

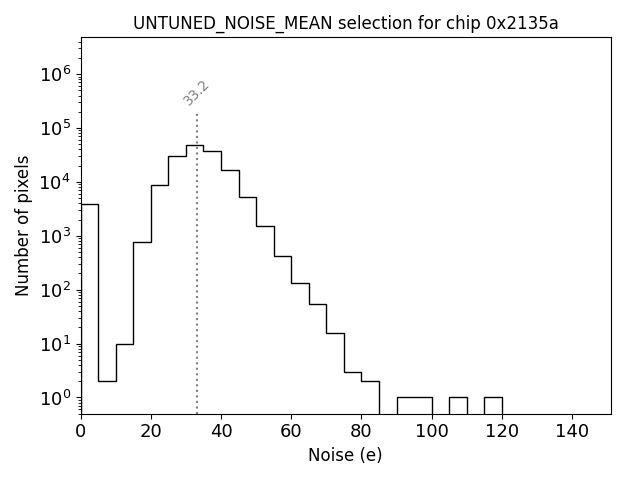

TUNING_UNTUNED_NOISE_MEAN	33.19
TUNING_UNTUNED_NOISE_SIGMA	8.128

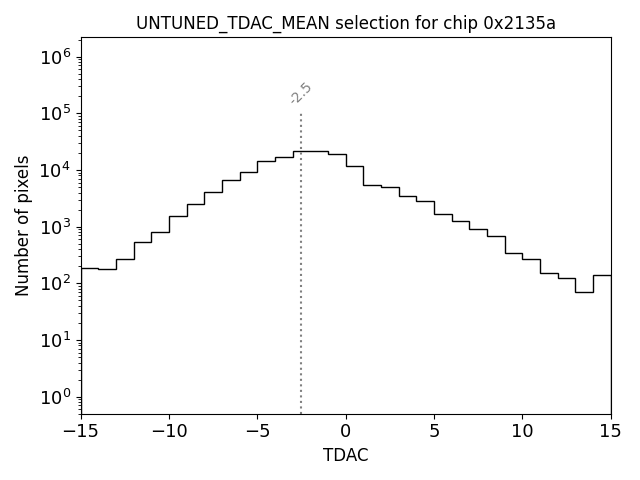

TUNING_UNTUNED_TDAC_MEAN	-2.53
TUNING_UNTUNED_TDAC_SIGMA	3.558

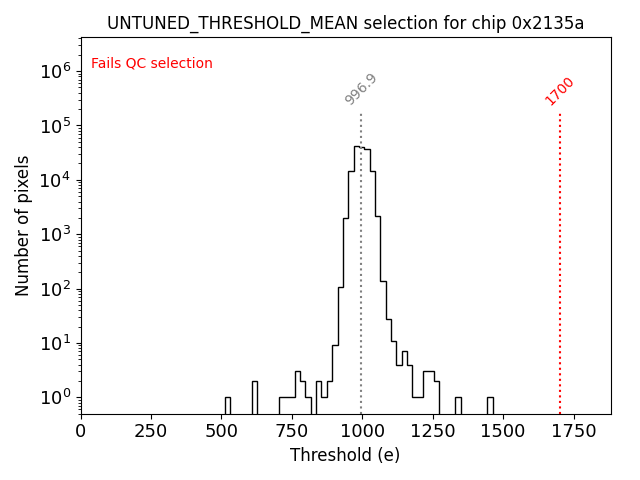

TUNING_UNTUNED_THRESHOLD_95_HIGH	1041.148
TUNING_UNTUNED_THRESHOLD_95_LOW	955.265

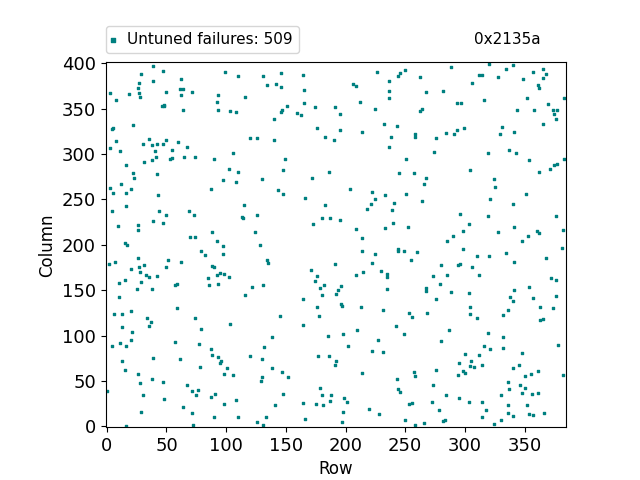

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	509
TUNING_UNTUNED_THRESHOLD_MEAN	997
TUNING_UNTUNED_THRESHOLD_SIGMA	23

Filename	Contents
0x2135a_L0_warm.json	Download
output.log	Download
0x2135a.log	Download
20UPGFC0136026_MODULE__INITIAL_WARM_TUNING.zip	Download
