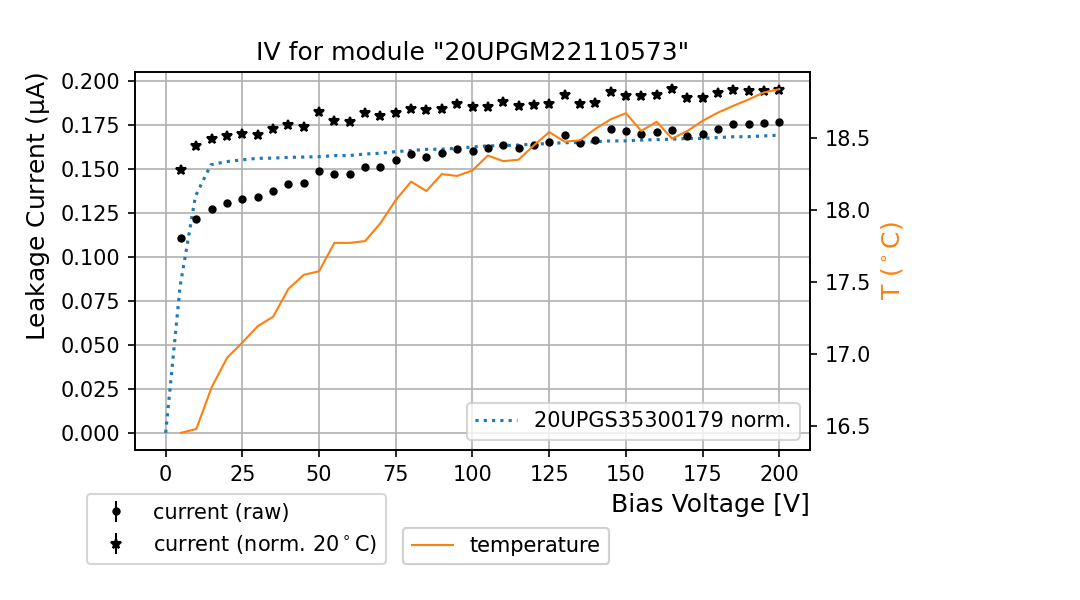

20UPGM22110573 (ANL_ITkPix_4)

MODULE/POST_PARYLENE_WARM

View QC Summary

Component Information

Serial Number 20UPGM22110573
ProdDB ID  ef59a6…c39d5a
LocalDB ID 64dfb1d80cdc7a004235d635
Component Type MODULE
Parents No match.
Children 20UPGB42000070 Bare Module 20UPGPQ2110573 PCB 20UPGFC0084915 FE Chip 20UPGFC0084917 FE Chip 20UPGFC0084916 FE Chip 20UPGFC0084939 FE Chip
Flags
Distribution of chips on wafer

 Properties

Item Value
PCB-Bare Orientation isNormal True
FE chip version 2
Wirebond protection roof presence False
Alternative ID ANL_ITkPix_4
Rank None

 Comments


Test: IV_MEASURE QC Passed

(Stage: MODULE/FINAL_WARM)


Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key Data
QC Passed True
Date 7 months ago
component ObjectId 64dfb1d80cdc7a004235d635
Stage MODULE/FINAL_WARM
Test Type IV_MEASURE
Institute ObjectId
User Name None
ObjectId of this record 682cd20301ed4b36be8d2e90
ObjectId of RAW record 682cd20001ed4b36be8d2e89
Tags No tags

Results

Key Data
ANALYSIS_VERSION mqat v2.4.1
TEMP 18.03
HUM 0
MEASUREMENT_DATE 2025-05-20T18:51:59.000+00:00
MEASUREMENT_DURATION 684
MEASUREMENT_VERSION 2.4.1
QC_LAYER L2
INSTITUTION LBNL
MODULE_SN 20UPGM22110573
IV_ARRAY {'time': [11.083491563796997, 26.03550124168396, 40.95466732978821, 56.26479530334473, 71.64017724990845, 87.04168653488159, 102.39033699035645, 117.72608757019043, 133.17651677131653, 148.56993579864502, 163.9567847251892, 179.357497215271, 194.7125060558319, 210.05148839950562, 225.3716959953308, 240.88837933540344, 256.24258494377136, 271.5971727371216, 287.0763535499573, 302.496440410614, 317.7534189224243, 333.34653329849243, 348.6260802745819, 364.07556676864624, 379.5272698402405, 394.960565328598, 410.3305130004883, 425.652539730072, 441.1372904777527, 456.4440047740936, 471.8664472103119, 487.2470073699951, 502.6747033596039, 518.0074889659882, 533.4151968955994, 548.9650852680206, 564.3060340881348, 579.7034947872162, 595.0508413314819, 610.42240691185, 625.8838715553284], 'voltage': [0.024, 4.98, 9.974, 14.994, 20.042, 24.982, 30.0, 34.994, 39.996, 44.986, 49.988, 54.986, 59.988, 64.982, 69.992, 74.986, 79.992, 84.992, 90.002, 94.998, 100.012, 105.01, 110.016, 115.01, 120.016, 125.016, 130.022, 135.02, 140.018, 145.018, 150.016, 155.016, 160.018, 165.02, 170.02, 175.02, 180.022, 185.022, 190.016, 195.014, 200.01], 'current': [0.0005, 0.11100000000000002, 0.1215, 0.1275, 0.131, 0.133, 0.134, 0.1375, 0.1415, 0.14200000000000002, 0.149, 0.1475, 0.14700000000000002, 0.151, 0.1515, 0.155, 0.1585, 0.157, 0.159, 0.1615, 0.1605, 0.162, 0.164, 0.162, 0.164, 0.16550000000000004, 0.1695, 0.165, 0.1665, 0.17300000000000001, 0.1715, 0.16999999999999998, 0.171, 0.17249999999999996, 0.169, 0.16983333333333334, 0.17300000000000001, 0.1755, 0.1755, 0.17650000000000002, 0.17700000000000005], 'sigma current': [0.0, 1.3234889800848443e-17, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 2.6469779601696886e-17, 0.0, 0.0, 0.0, 0.0, 0.0, 2.6469779601696886e-17, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 2.6469779601696886e-17, 0.0, 0.00023570226039550858, 0.0, 2.6469779601696886e-17, 2.6469779601696886e-17, 0.0, 2.6469779601696886e-17], 'temperature': [16.415942611082713, 16.450371123133742, 16.476686868765608, 16.767278240944638, 16.972560128013818, 17.077773824070967, 17.191667753696596, 17.25647453104646, 17.450398384112244, 17.54845426564301, 17.57309674434678, 17.770602899673676, 17.770602899673676, 17.78268190858312, 17.907332049963184, 18.06803991462354, 18.196139372186266, 18.13103415895253, 18.248784472637322, 18.235863379061172, 18.274642571918836, 18.377955128779973, 18.33871621737714, 18.348687574094377, 18.447908385708615, 18.540753257596297, 18.474598236110925, 18.482943464233685, 18.56283592658498, 18.62917727113967, 18.671803485399987, 18.548781522682344, 18.612411169641636, 18.495632456615684, 18.548112422207332, 18.619116535516053, 18.67617006796247, 18.72323336886718, 18.767335239013764, 18.816560176456523, 18.838837954695375], 'humidity': []}
BREAKDOWN_VOLTAGE -999
BREAKDOWN_REDUCTION 0.0
NO_BREAKDOWN_VOLTAGE_OBSERVED True
MAXIMUM_VOLTAGE 200.01
LEAK_CURRENT 0.1854498753343533
LEAK_INCREASE_FACTOR 1.37
LEAK_PER_AREA 0.01
