Database for ITk Pixel Module

Serial Number	20UPGFC0097959
ProdDB ID	78402e…8002fc
LocalDB ID	6232fde8a3cd8a000a66fd28
Component Type	fe_chip
Parents	20UPIMS2102142 20UPGB12100050
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000382

Key	Data
QC Passed	False
Date	a year ago
component ObjectId	6232fde8a3cd8a000a66fd28
Stage	MODULE/INITIAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	JuanIgnacioCarlotto
ObjectId of this record	66696e9ba2332dec72e60453
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.5rc1

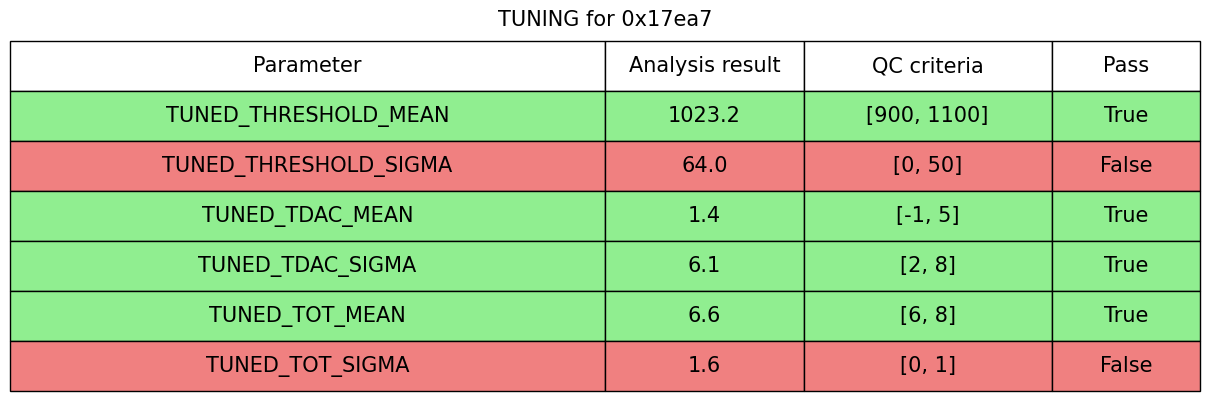

TUNING_TUNED_NOISE_95_HIGH	62.383
TUNING_TUNED_NOISE_95_LOW	31.772

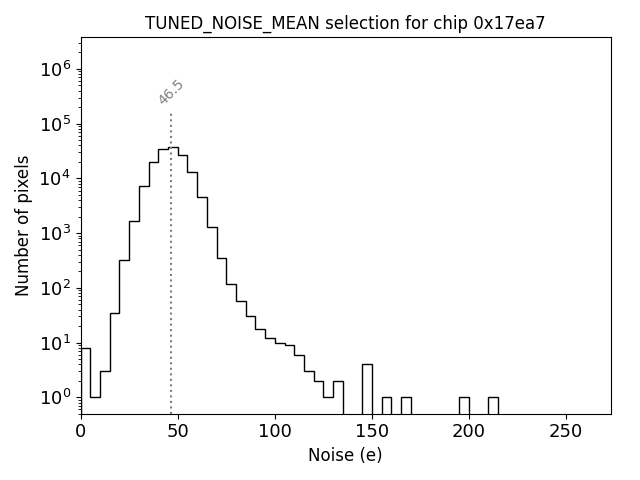

TUNING_TUNED_NOISE_MEAN	46.512
TUNING_TUNED_NOISE_SIGMA	7.931
TUNING_TUNED_TDAC_MEAN	1.4
TUNING_TUNED_TDAC_SIGMA	6.1
TUNING_TUNED_THRESHOLD_95_HIGH	1085.22
TUNING_TUNED_THRESHOLD_95_LOW	957.14

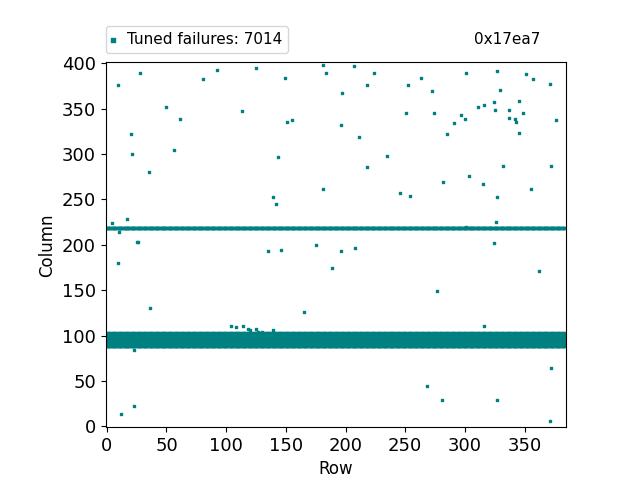

TUNING_TUNED_THRESHOLD_FAILED_FITS	7014

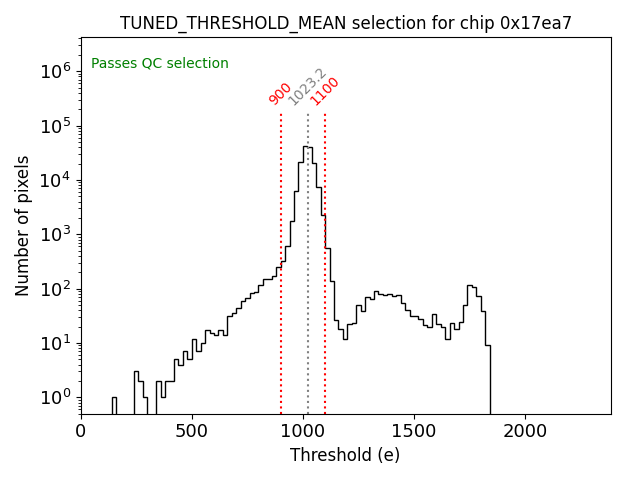

TUNING_TUNED_THRESHOLD_MEAN	1023.2
TUNING_TUNED_THRESHOLD_SIGMA	64
TUNING_TUNED_TOT_95_HIGH	7
TUNING_TUNED_TOT_95_LOW	0

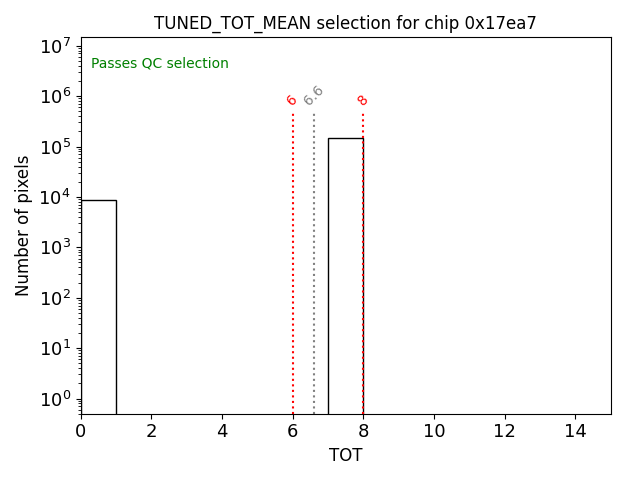

TUNING_TUNED_TOT_MEAN	6.6
TUNING_TUNED_TOT_SIGMA	1.6
TUNING_UNTUNED_NOISE_95_HIGH	69.749
TUNING_UNTUNED_NOISE_95_LOW	33.506

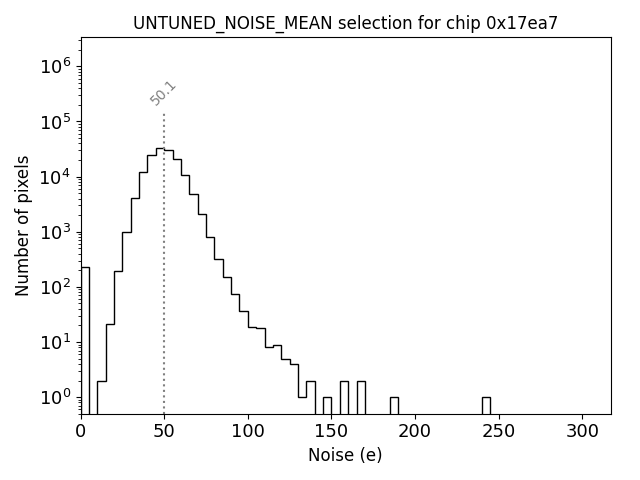

TUNING_UNTUNED_NOISE_MEAN	50.073
TUNING_UNTUNED_NOISE_SIGMA	9.428
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2921.517
TUNING_UNTUNED_THRESHOLD_95_LOW	1368.262

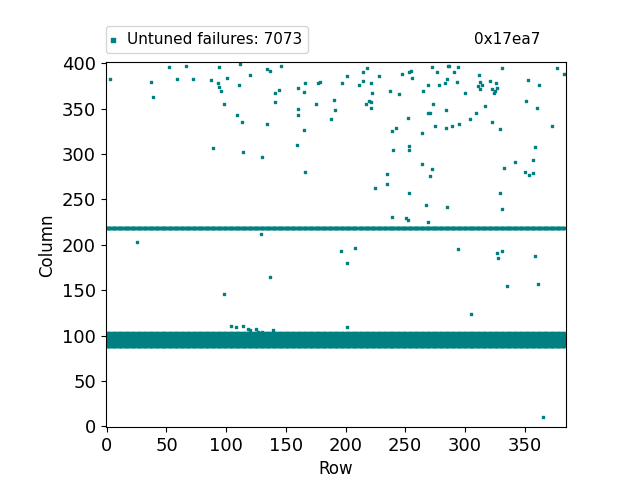

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	7073

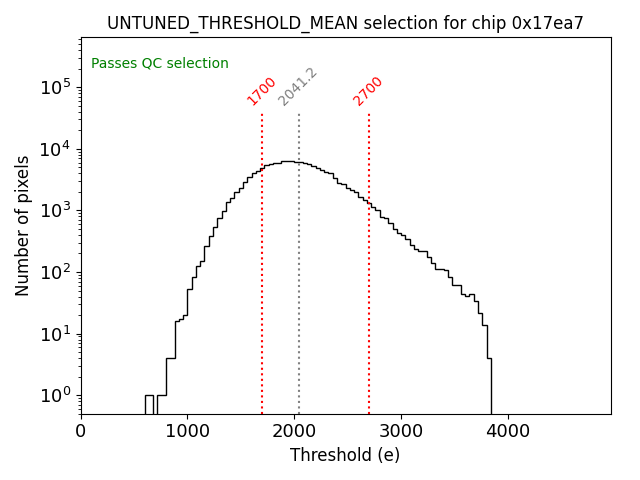

TUNING_UNTUNED_THRESHOLD_MEAN	2041
TUNING_UNTUNED_THRESHOLD_SIGMA	394

Filename	Contents
0x17ea7_MODULE/INITIAL_COLD_L0_cold.json	Download
0x17ea7.log	Download
output.log	Download
20UPGFC0097959_MODULE__INITIAL_COLD_TUNING.zip	Download
