20UPGFC0099675

MODULE/COMPLETE

Component Information

Serial Number	20UPGFC0099675
ProdDB ID	0de4d0…ec4cc8
LocalDB ID	622cea1bbe7827000a0db371
Component Type	fe_chip
Parents	20UPGM22601067 20UPGB42307034
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	20UPGFW0000389
Target Iref trim	None
Target Iref trim version	None

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a year ago
component ObjectId	622cea1bbe7827000a0db371
Stage	MODULE/FINAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	Shift-LeaderHayashi-REPIC-KEK
ObjectId of this record	671ef5d0c447bfb7e214f603
ObjectId of RAW record	None
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.2.6
MEASUREMENT_DATE	None
YARR_VERSION	None
TUNING_TUNED_NOISE_95_HIGH	113.291
TUNING_TUNED_NOISE_95_LOW	73.327

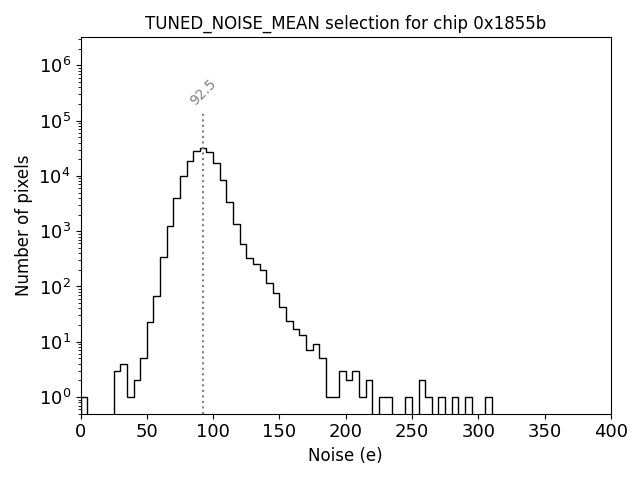

TUNING_TUNED_NOISE_MEAN	92.528
TUNING_TUNED_NOISE_SIGMA	10.554

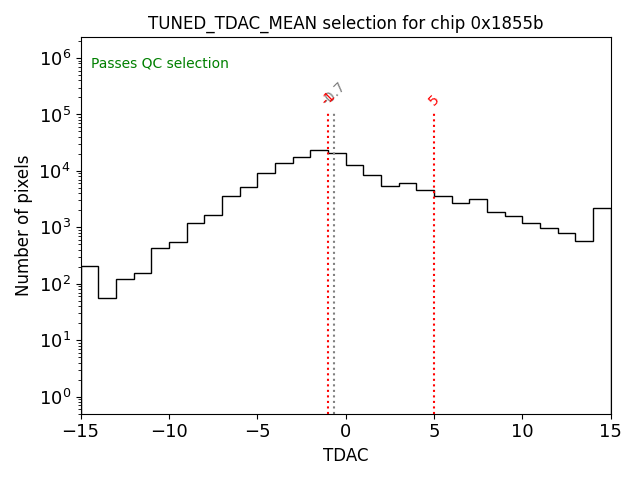

TUNING_TUNED_TDAC_MEAN	-0.7
TUNING_TUNED_TDAC_SIGMA	4.5
TUNING_TUNED_THRESHOLD_95_HIGH	1567.085
TUNING_TUNED_THRESHOLD_95_LOW	1441.179

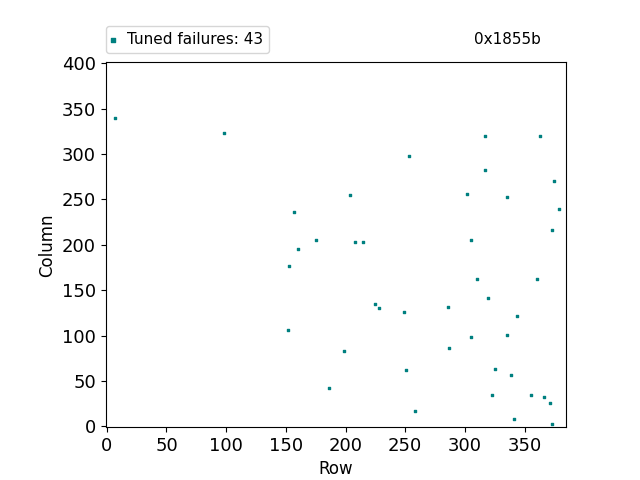

TUNING_TUNED_THRESHOLD_FAILED_FITS	43

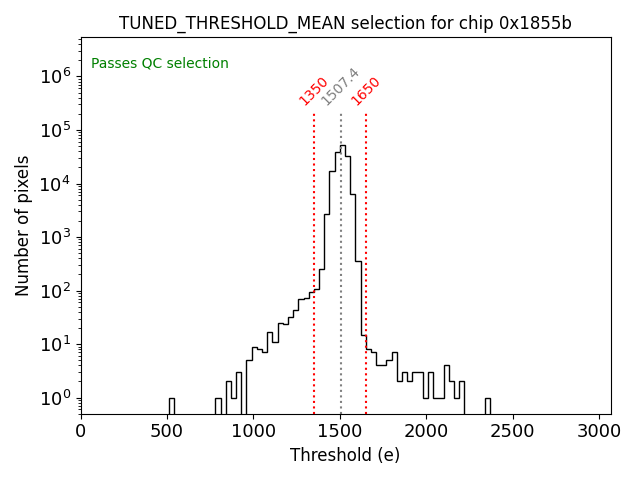

TUNING_TUNED_THRESHOLD_MEAN	1507.4
TUNING_TUNED_THRESHOLD_SIGMA	37

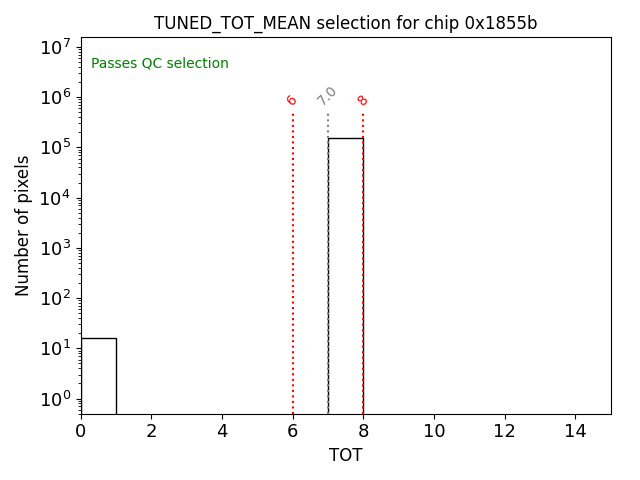

TUNING_TUNED_TOT_95_HIGH	7
TUNING_TUNED_TOT_95_LOW	7
TUNING_TUNED_TOT_MEAN	7
TUNING_TUNED_TOT_SIGMA	0.1
TUNING_UNTUNED_NOISE_95_HIGH	121.097
TUNING_UNTUNED_NOISE_95_LOW	77.069

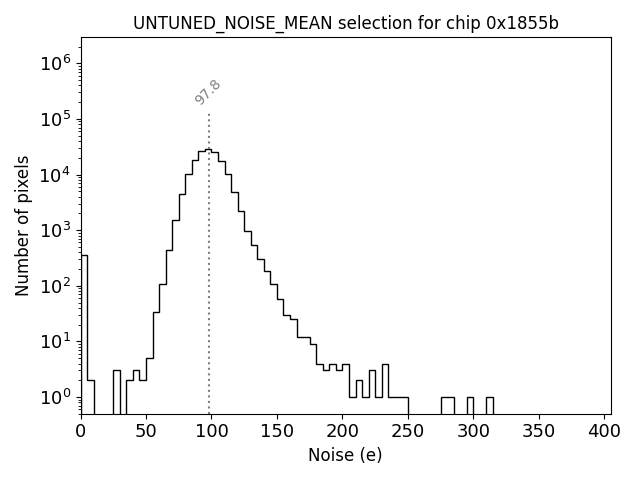

TUNING_UNTUNED_NOISE_MEAN	97.81
TUNING_UNTUNED_NOISE_SIGMA	12.207
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

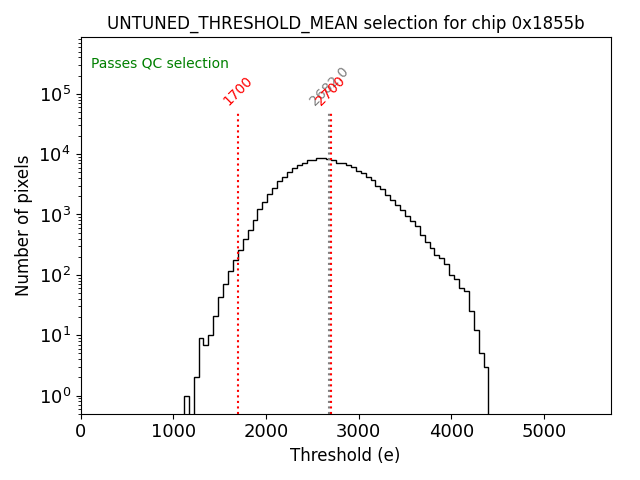

TUNING_UNTUNED_THRESHOLD_95_HIGH	3524.674
TUNING_UNTUNED_THRESHOLD_95_LOW	1966.754

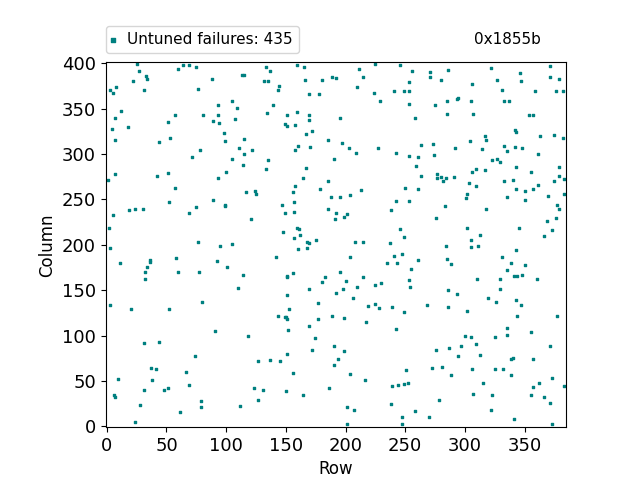

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	435
TUNING_UNTUNED_THRESHOLD_MEAN	2682
TUNING_UNTUNED_THRESHOLD_SIGMA	396

Attachments

Filename	Contents
0x1855b_L2_cold.json	Download
output.log	Download
0x1855b.log	Download
20UPGFC0099675_MODULE__FINAL_COLD_TUNING.zip	Download

ProductionDB Record

Expand ProductionDB Record

673e0e082da8f055682d1ef3

state

ready

stateTs

2024-11-20T16:27:52.032Z

stateUserIdentity

9833-9995-1

date

2024-10-28T02:24:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	64229fe1b8fd040036839f29
code	HR
name	Hayashi-Repic Co.

user

id	6704b3f3f081870042f075da
userIdentity	9833-9995-1
firstName	Shift-Leader
middleName
lastName	Hayashi-REPIC-KEK

runNumber

671ef5d0c447bfb7e214f603

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.2.6	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	None	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	113.291	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	73.327	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	92.528	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	10.554	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-0.7	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.5	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1567.085	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1441.179	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	43	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1507.4	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	37	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0.1	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	121.097	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	77.069	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	97.81	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	12.207	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	3524.674	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1966.754	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	435	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2682	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	396	None

cts

2024-11-20T16:27:52.032Z

sys

cts	2024-11-20T16:27:52.032Z
mts	2024-11-20T16:28:10.036Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

a699cabcdeb4986741341d22023b3a79

2024-11-20T16:28:00.866Z

0x1855b_L2_cold.json

{"_id":"671b1a3536736b36d89c395e","serialNumber":"20UPGFC0099675","stage":"MODULE/FINAL_COLD","branch":"cold","current_revision_id":"671ef898784cf49f0a22f0ae"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/a/6/9/a699cabcdeb4986741341d22023b3a79?authz=zteos64:MDAwMDAyYjZ4nO1QrU7EQBhMLwFxghDkqS8EEkzb3e3f9VOAIUGCONFUbG_7l7vrlnZr7h0IKJ4CEgjgERc0Cg9PAAkEHJQLAoFEMmLEZGYyme6s09Wq5eOr69libyFXo1KsdqblhsYsM5a1ydWYf_Mwroq0kk0p8npkiljprd0sKyl0EZncdE1_d80miWV7nOluYjk6pQnRue8PdW5HCaGe73rM37vTgn2uYKtJARgQhpSi5QIjzAmhyQVSm7p9GsznhJB-KRbxgmkZgspFXCispFSGxyzHdls38ZzNADFpgQ41KHUNv29QEkLBJzHOe0AUCO1ahaMqcoCXJUIma4W_B4Wc8LzAH0oaS4S6ERIJqIoPYwRZRHHGxwmuwNLg9pBtDN6zc5Hdn1ymHxdHOy_Ppw_T7af13uuB1vs_-i-Ohrebx7POJ0nt2Z4%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/a/6/9/a699cabcdeb4986741341d22023b3a79

a699cabcdeb4986741341d22023b3a79

id	6704b3f3f081870042f075da
userIdentity	9833-9995-1
firstName	Shift-Leader
middleName
lastName	Hayashi-REPIC-KEK

79452de0c306db27245a47b7b9e5b21d

2024-11-20T16:28:10.036Z

TestRun_673e0e082da8f055682d1ef3_Attachment_Pack.zip

/nas/db/localdb-tools/viewer/static/cache/thumbnail/TestRun_673e0e082da8f055682d1ef3_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/7/9/4/79452de0c306db27245a47b7b9e5b21d?authz=zteos64:MDAwMDAyYjV4nO1QP0vDUBykBR06iWMV-aEduiQvL3-bHw52dVS3EPAlL0lD27yYvIAUnfwCTk5-ABe3Cg6CIP0ALoKbo-Ci4hcwFgcHR0dvuOG4O45rzZqtRrF0Or2aLbYXUjnM-XpzkncbukEiURImR-ybw6jIkkJUOU_LIeGRVGo7yQvBFR4Qh7jE3O6YlDIrdHuKHRuWQmmsKSw0bIWZQaxRx7Ud3d25b3i7TEK_SgB00HSkFA0bdE23fKhSjtSkdo968zk-JF-KoTneJPdBpjzKJBZCSNXRDcuu04ZJ3S0PMa6BFlUptVW3p1LNh4yNI5z3AM8Q6rUSh0VgActzhIEoJf4e5GLM0gx_KEkkEMqKC9RAFiyMEEQWRAM2inEZjk76G4_Pne70PTm8XCXXxfHaw_7b-d3ZzevH5sXeQfv_6L84Gl6eblc-Abmb2JE%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/7/9/4/79452de0c306db27245a47b7b9e5b21d

79452de0c306db27245a47b7b9e5b21d

id	6704b3f3f081870042f075da
userIdentity	9833-9995-1
firstName	Shift-Leader
middleName
lastName	Hayashi-REPIC-KEK

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

622cea1bbe7827000a0db371

0de4d08d1a1c825f40a714c690ec4cc8

ready

2022-03-12T18:44:43.027Z

9198-3887-1

False

None

False

None

20UPGFC0099675

None

parent

component

649290dfa0f5c00042e4bd40

code

f6ff9a952249c40fd03bd6418a803546

state

ready

stateTs

2023-06-21T05:55:43.968Z

stateUserIdentity

24-6238-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB42307034

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/FINAL_WARM
name	Final Warm

highestLevelParent

component

64ed37e6c96c32004230ef1f

code

f0dd42cb70997a03eb37b202e98ea3a1

state

ready

stateTs

2023-08-29T00:12:22.218Z

stateUserIdentity

24-779-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM22601067

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/FINAL_WARM
name	Final Warm

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V11
name	ITkpix_V1.1

code	name	dataType	required	default	value
WAFERSN	Wafer serial number	string	False	False	20UPGFW0000389

code	MODULE/FINAL_COLD
name	Final Cold
order	20
initial	False
final	False

code	BONN
name	University of Bonn

Current Stage: Module Complete

No tests are allocated for this stage.

Past QC Stages and Results

Modules damaged, impossible to recover (MODULE/GRAVEYARD)

Stage for QA modules and others not to be considered in yield calculation (MODULE/NOTCONSIDEREDINYIELDS)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Modules failed test, needs investigation (MODULE/UNHAPPY)

Ranking of the module (MODULE/QC_STATUS)

Final flatness measurement (MODULE/FINAL_METROLOGY)

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
Tuning (TUNING)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
673cd1…66c3fa	MODULE/FINAL_COLD	DATA_TRANSMISSION	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
671ef7…14f71a	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
671ef3…14f56d	MODULE/FINAL_COLD	MIN_HEALTH_TEST	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
671ef5…14f603	MODULE/FINAL_COLD	TUNING	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
673cd1…66c39c	MODULE/FINAL_COLD	LP_MODE	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c3ce	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c31c	MODULE/FINAL_COLD	VCAL_CALIBRATION	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c2e2	MODULE/FINAL_COLD	SLDO	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c370	MODULE/FINAL_COLD	ANALOG_READBACK	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c2b4	MODULE/FINAL_COLD	ADC_CALIBRATION	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c22c	MODULE/FINAL_WARM	LP_MODE	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
671afb…14d911	MODULE/FINAL_WARM	TUNING	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
671afa…14d8e4	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
671afa…14d7c9	MODULE/FINAL_WARM	MIN_HEALTH_TEST	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
673cd1…66c292	MODULE/FINAL_WARM	DATA_TRANSMISSION	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c262	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c1a4	MODULE/FINAL_WARM	VCAL_CALIBRATION	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c166	MODULE/FINAL_WARM	SLDO	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c1fc	MODULE/FINAL_WARM	ANALOG_READBACK	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
673cd1…66c134	MODULE/FINAL_WARM	ADC_CALIBRATION	Shift-LeaderHayashi-REPIC-KEK	a year ago	a year ago	No tags	Selected
6719d1…14bc5f	MODULE/LONG_TERM_STABILITY_TEST	PIXEL_FAILURE_ANALYSIS	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
6719d0…14bba7	MODULE/LONG_TERM_STABILITY_TEST	MIN_HEALTH_TEST	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
6719ae…14b5e5	MODULE/THERMAL_CYCLES	PIXEL_FAILURE_ANALYSIS	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
6719ad…14b570	MODULE/THERMAL_CYCLES	MIN_HEALTH_TEST	Shift-LeaderHayashi-REPIC-KEK	N/A	a year ago	No tags	Selected
66784c…d1d8a7	MODULE/INITIAL_COLD	OVERVOLTAGE_PROTECTION	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784c…d1d88b	MODULE/INITIAL_COLD	LP_MODE	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784c…d1d8d5	MODULE/INITIAL_COLD	INJECTION_CAPACITANCE	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784c…d1d7d7	MODULE/INITIAL_COLD	VCAL_CALIBRATION	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784c…d1d7aa	MODULE/INITIAL_COLD	SLDO	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784c…d1d76d	MODULE/INITIAL_COLD	ADC_CALIBRATION	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784b…d1d737	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784b…d1d709	MODULE/INITIAL_WARM	OVERVOLTAGE_PROTECTION	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784b…d1d6ed	MODULE/INITIAL_WARM	LP_MODE	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784b…d1d5ff	MODULE/INITIAL_WARM	SLDO	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784a…d1d5cf	MODULE/INITIAL_WARM	ADC_CALIBRATION	HideyukiOide	2 years ago	a year ago	No tags	Selected
622ced…0dc443	TESTONWAFER	FECHIP_TEST	MarkStandke	N/A	a year ago	No tags	Selected
66784c…d1d852	MODULE/INITIAL_COLD	ANALOG_READBACK	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784b…d1d639	MODULE/INITIAL_WARM	VCAL_CALIBRATION	HideyukiOide	2 years ago	a year ago	No tags	Selected
66784b…d1d6b4	MODULE/INITIAL_WARM	ANALOG_READBACK	HideyukiOide	2 years ago	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0099675

MODULE/COMPLETE

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Module Complete

Past QC Stages and Results

Modules damaged, impossible to recover (MODULE/GRAVEYARD)

Stage for QA modules and others not to be considered in yield calculation (MODULE/NOTCONSIDEREDINYIELDS)

Modules failed test, needs investigation (MODULE/UNHAPPY)

Ranking of the module (MODULE/QC_STATUS)

Final flatness measurement (MODULE/FINAL_METROLOGY)

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
