Database for ITk Pixel Module

Serial Number	20UPGFC0096201
ProdDB ID	6c5316…227a3d
LocalDB ID	622cdf17be7827000a0d88dc
Component Type	fe_chip
Parents	20UPIMS2102148 20UPGB12200068
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000375

Key	Data
QC Passed	False
Date	a year ago
component ObjectId	622cdf17be7827000a0d88dc
Stage	MODULE/LONG_TERM_STABILITY_TEST
Test Type	PIXEL_FAILURE_ANALYSIS
Institute ObjectId
User Name	NirajKakoty
ObjectId of this record	669fbfe59c8630de5755f5b6
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.6
PIXEL_FAILURE_BAD_ANALOG	60
PIXEL_FAILURE_BAD_DIGITAL	0
PIXEL_FAILURE_DEAD_ANALOG	139
PIXEL_FAILURE_DEAD_DIGITAL	0
PIXEL_FAILURE_DISCONNECTED_BUMPS_SOURCE_SCAN	0
PIXEL_FAILURE_DISCONNECTED_BUMPS_XTALK_SCAN	1085

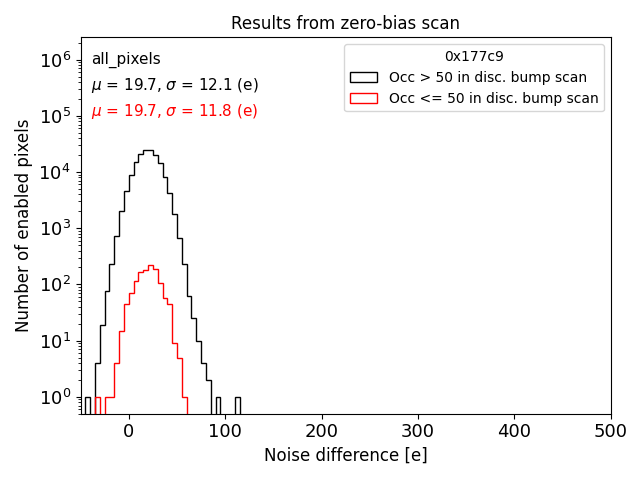

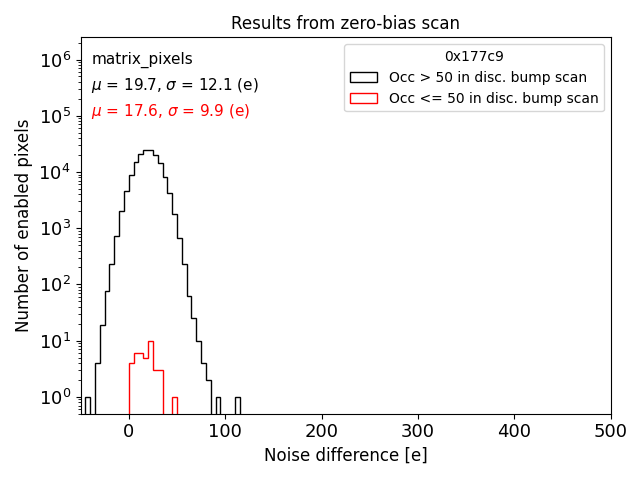

PIXEL_FAILURE_DISCONNECTED_BUMPS_ZERO_BIAS_SCAN	0
PIXEL_FAILURE_DISCONNECTED_PIXELS	1085
PIXEL_FAILURE_DISC_PIXEL_ALL_ELEC	1395
PIXEL_FAILURE_ELECTRICALLY_FAILED	871

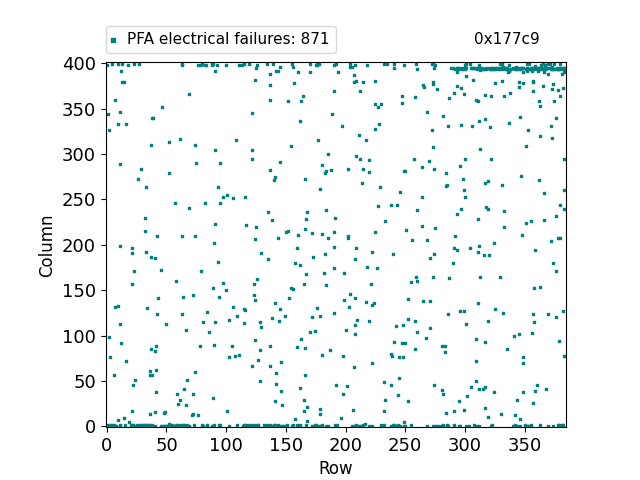

PIXEL_FAILURE_FAILING_PIXELS	1956

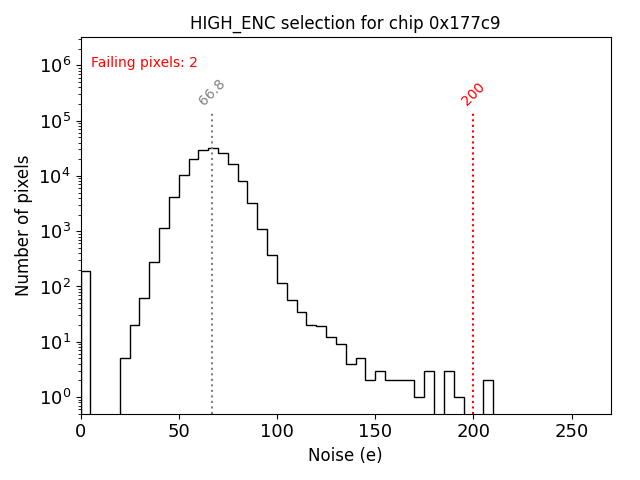

PIXEL_FAILURE_HIGH_ENC	2
PIXEL_FAILURE_HIGH_NOISE	71
PIXEL_FAILURE_MERGED_BUMPS	0

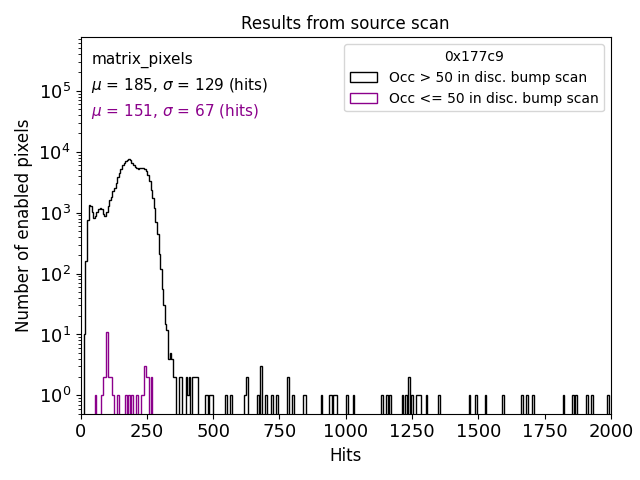

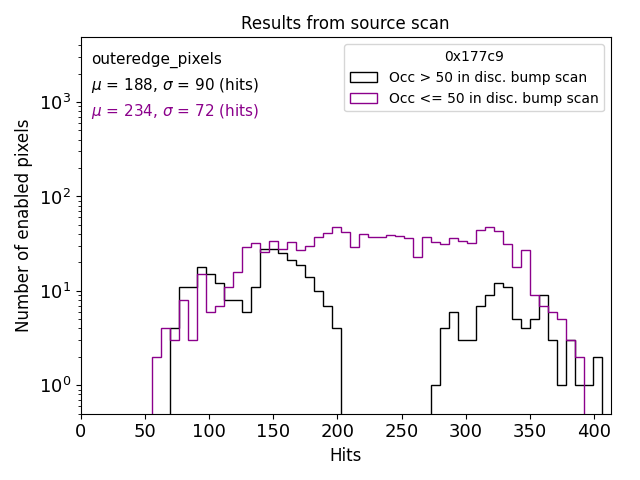

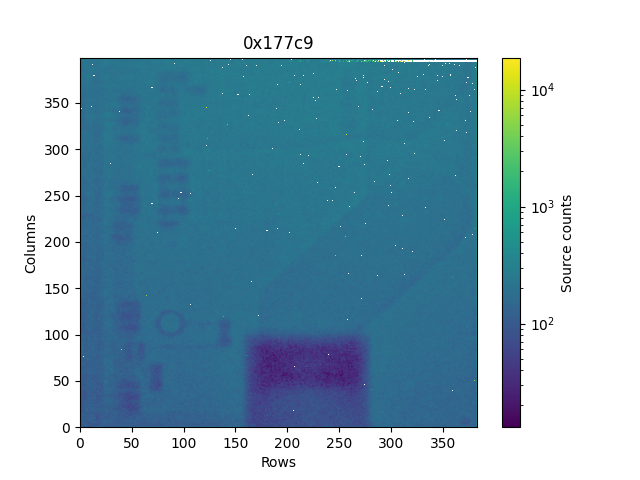

PIXEL_FAILURE_SOURCE_SCAN_DONE	True
PIXEL_FAILURE_TUNING_BAD	599

Filename	Contents
0x177c9.log	Download
output.log	Download
20UPGFC0096201_MODULE__LONG_TERM_STABILITY_TEST_PIXEL-FAILURE-ANALYSIS.zip	Download
