Database for ITk Pixel Module

Serial Number	20UPGFC0096363
ProdDB ID	a6c849…4924f8
LocalDB ID	622cbbbfbe7827000a0d2b4b
Component Type	fe_chip
Parents	20UPIM02202117 20UPGB12200127
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000376

Key	Data
QC Passed	False
Date	9 months ago
component ObjectId	622cbbbfbe7827000a0d2b4b
Stage	MODULE/FINAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	SimonHuiberts
ObjectId of this record	67cac99f7e57bc42d4c47414
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.3.0
MEASUREMENT_DATE	2025-03-06T13:15:51.000+00:00
MEASUREMENT_DURATION	None
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.2-71-gce544977
TUNING_TUNED_NOISE_95_HIGH	90.666
TUNING_TUNED_NOISE_95_LOW	48.628
TUNING_TUNED_NOISE_MEAN	68.328
TUNING_TUNED_NOISE_SIGMA	11.186

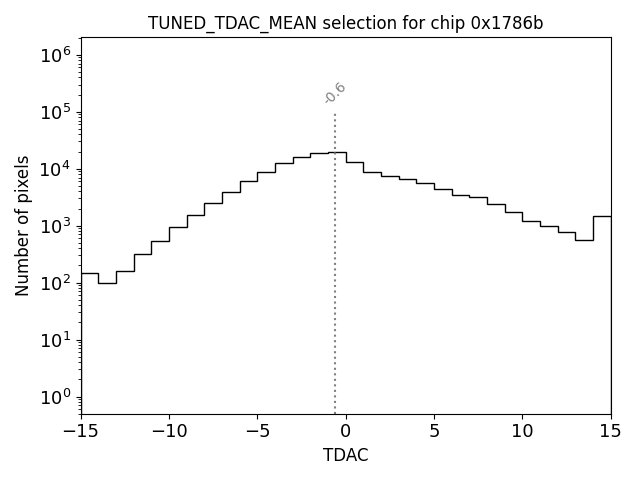

TUNING_TUNED_TDAC_MEAN	-0.617
TUNING_TUNED_TDAC_SIGMA	4.574
TUNING_TUNED_THRESHOLD_95_HIGH	1072.261
TUNING_TUNED_THRESHOLD_95_LOW	929.634

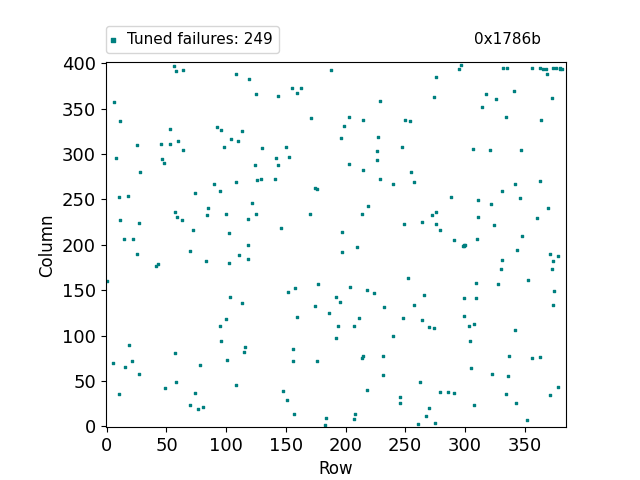

TUNING_TUNED_THRESHOLD_FAILED_FITS	249

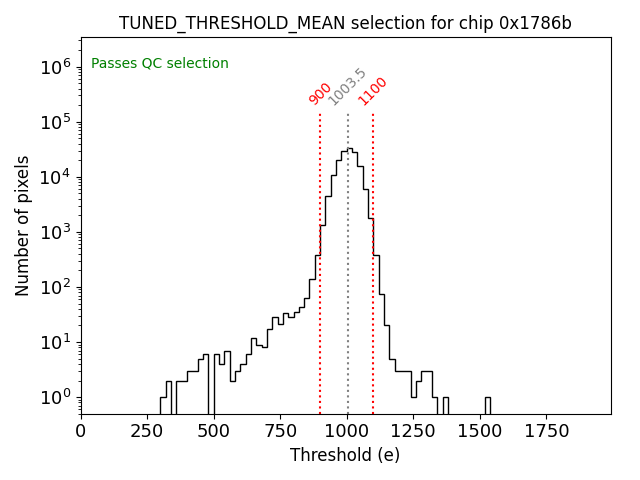

TUNING_TUNED_THRESHOLD_MEAN	1003.5
TUNING_TUNED_THRESHOLD_SIGMA	39
TUNING_TUNED_TOT_95_HIGH	-999
TUNING_TUNED_TOT_95_LOW	-999
TUNING_TUNED_TOT_MEAN	-999
TUNING_TUNED_TOT_SIGMA	-999
TUNING_UNTUNED_NOISE_95_HIGH	111.426
TUNING_UNTUNED_NOISE_95_LOW	53.449

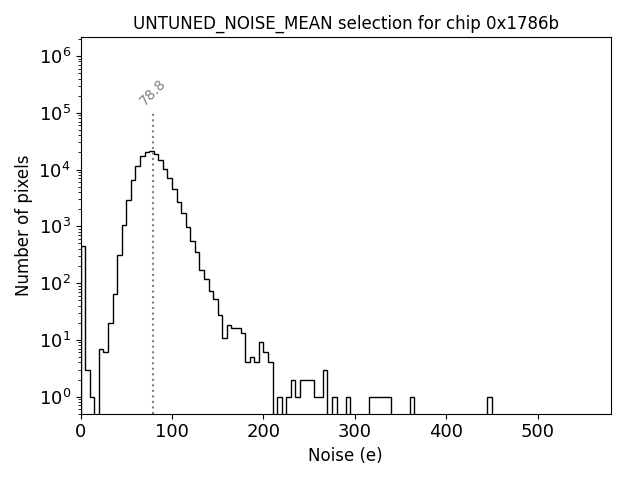

TUNING_UNTUNED_NOISE_MEAN	78.752
TUNING_UNTUNED_NOISE_SIGMA	15.517
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	4358.399
TUNING_UNTUNED_THRESHOLD_95_LOW	2086.33

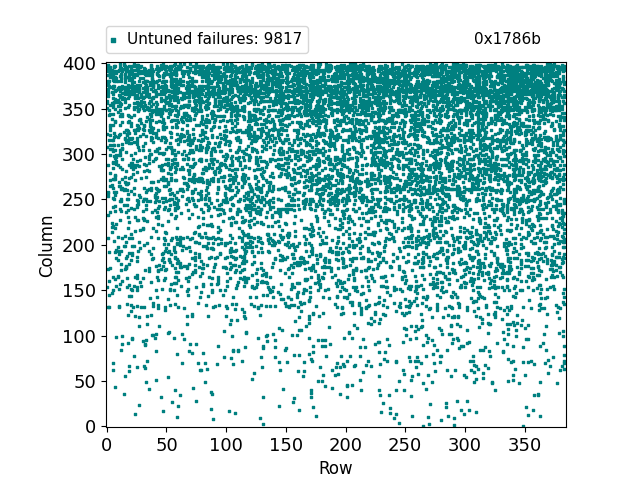

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	9817

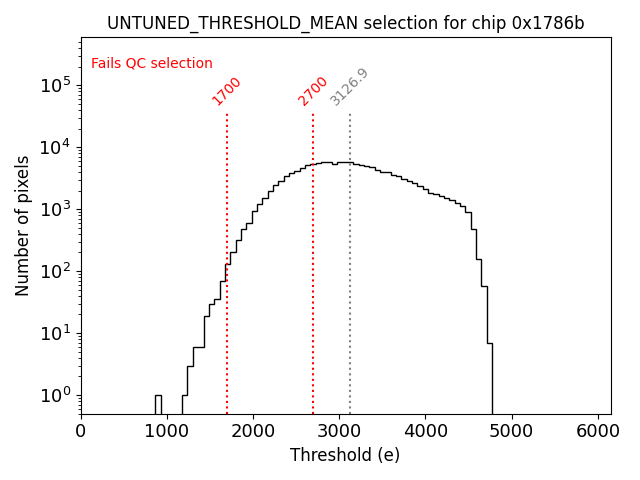

TUNING_UNTUNED_THRESHOLD_MEAN	3127
TUNING_UNTUNED_THRESHOLD_SIGMA	594

Filename	Contents
0x1786b_R0_cold.json	Download
output.log	Download
0x1786b.log	Download
20UPGFC0096363_MODULE__FINAL_COLD_TUNING.zip	Download

Expand ProductionDB Record

67cacc935ae416616e3093c1

state

ready

stateTs

2025-03-07T10:38:11.979Z

stateUserIdentity

24-7187-1

date

2025-03-07T10:25:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5d318a25df98f20009738a14
code	UNIBERGEN
name	University of Bergen

user

id	5d3185f4df98f200097386cb
userIdentity	24-7187-1
firstName	Simon
middleName	None
lastName	Huiberts

runNumber

67cac99f7e57bc42d4c47414

passed

False

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.3.0	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-03-06T13:15:51.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	None	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.2-71-gce544977	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	90.666	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	48.628	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	68.328	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	11.186	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	-0.617	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.574	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1072.261	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	929.634	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	249	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1003.5	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	39	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	-999	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	-999	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	-999	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	-999	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	111.426	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	53.449	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	78.752	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	15.517	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	4358.399	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	2086.33	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	9817	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	3127	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	594	None
