Database for ITk Pixel Module

Serial Number	20UPGFC0086730
ProdDB ID	8363cd…9ccfbb
LocalDB ID	6225078180e95c000a571e4f
Component Type	fe_chip
Parents	20UPGM22110271 20UPGB42000018
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000338

Key	Data
QC Passed	True
Date	a year ago
component ObjectId	6225078180e95c000a571e4f
Stage	MODULE/POST_PARYLENE_WARM
Test Type	ADC_CALIBRATION
Institute ObjectId
User Name	JennyLunde
ObjectId of this record	66f131ca59d6b60dd10763d5
ObjectId of RAW record	66f131c659d6b60dd10763ce
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.7
YARR_VERSION	None

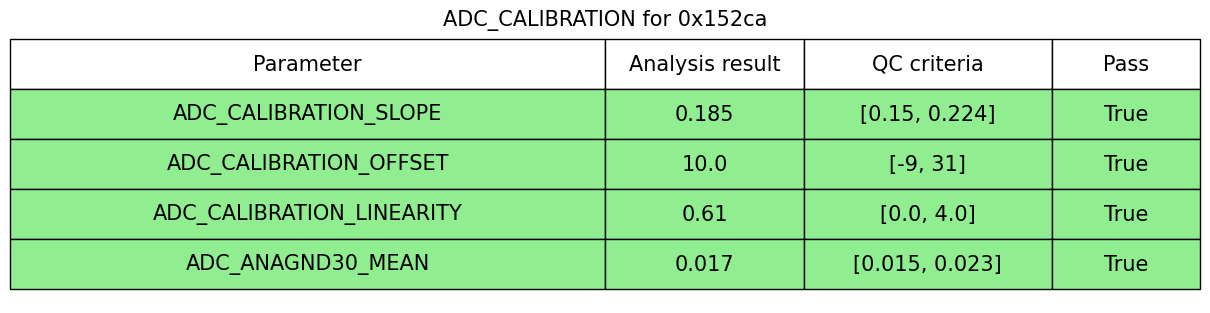

ADC_ANAGND30_MEAN	0.017
ADC_ANAGND30_STD	3.469446951953614e-18
ADC_CALIBRATION_LINEARITY	0.61
ADC_CALIBRATION_OFFSET	10
ADC_CALIBRATION_SLOPE	0.185

Filename	Contents
output.log	Download

_id

66f131c659d6b60dd10763ce

raw

serialNumber

testType

subtestType

results

stage

component

dbVersion

address

sys

20UPGFC0086730

ADC_CALIBRATION

property

YARR_VERSION	v1.5.2
ADC_CALIBRATION_MEASUREMENT_VERSION	2.2.7.dev13

comment

Measurements

DACs_input

X	True
Unit	Count
Values	500.0 700.0 900.0 1100.0 1300.0 1500.0 1700.0 1900.0 2100.0 2300.0 2500.0 2700.0 2900.0 3100.0 3300.0

Vmux8

X	False
Unit	V
Values	0.11557 0.1552 0.194691 0.233644 0.273226 0.312432 0.351991 0.391301 0.431139 0.470599 0.509868 0.549701 0.589189 0.629232 0.668968

Vmux30

X	False
Unit	V
Values	0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145 0.0173145

ADC_Vmux8

X	False
Unit	Count
Values	477 690 904 1115 1326 1539 1751 1964 2180 2395 2609 2826 3033 3240 3459

ADC_Vmux30

X	False
Unit	Count
Values	0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

Metadata

FirmwareVersion

FirmwareIdentifier

ChannelConfig

SoftwareVersion

ChipConfigs

RD53B

GlobalConfig

AiRegionRow	0
AuroraActiveLanes	1
AuroraCBSend	0
AuroraCBWait0	4095
AuroraCBWait1	0
AuroraCCSend	3
AuroraCCWait	25
AuroraEnPrbs	0
AuroraInitWait	32
AutoRead0	137
AutoRead1	133
AutoRead2	121
AutoRead3	122
AutoRead4	124
AutoRead5	127
AutoRead6	126
AutoRead7	125
BcidCnt	0
BitFlipErrCnt	0
BitFlipWngCnt	0
CapMeasEn	0
CapMeasEnPar	0
CdrClkSel	0
CdrCp	40
CdrCpBuff	200
CdrCpFd	400
CdrOverwriteLimit	0
CdrPhaseDetSel	0
CdrVco	1023
CdrVcoBuff	500
ChSyncLockThr	31
CmdErrCnt	0
CmlBias0	800
CmlBias1	400
CmlBias2	0
DataEnBcid	0
DataEnBinaryRo	0
DataEnEos	1
DataEnHitRemoval	0
DataEnIsoHitRemoval	0
DataEnL1id	0
DataEnRaw	0
DataMaxHits	0
DataMaxTot	0
DataMergeEn	0
DataMergeEnBond	0
DataMergeEnClkGate	0
DataMergeInMux0	0
DataMergeInMux1	1
DataMergeInMux2	2
DataMergeInMux3	3
DataMergeInPol	0
DataMergeOutMux0	0
DataMergeOutMux1	1
DataMergeOutMux2	2
DataMergeOutMux3	3
DataMergeSelClk	0
DataReadDelay	0
DiffComp	500
DiffFbCapEn	0
DiffLcc	100
DiffLccEn	0
DiffPreComp	350
DiffPreampL	550
DiffPreampM	550
DiffPreampR	550
DiffPreampT	550
DiffPreampTL	550
DiffPreampTR	550
DiffTh1L	311
DiffTh1M	246
DiffTh1R	311
DiffTh2	50
DiffVff	60
EfuseConfig	3855
EfuseReadData0	51728
EfuseReadData1	4434
EfuseWriteData0	0
EfuseWriteData1	0
EnChipId	0
EnCoreCol0	65535
EnCoreCol1	65535
EnCoreCol2	65535
EnCoreCol3	63
EnCoreColCal0	0
EnCoreColCal1	0
EnCoreColCal2	0
EnCoreColCal3	0
ErrWngMask	0
EvenMask	0
FineDelayClk	0
FineDelayData	0
GcrDefaultConfig	44149
GcrDefaultConfigB	21386
GlobalPulseConf	0
GlobalPulseWidth	10
GpCmosDs	0
GpCmosEn	1
GpCmosRoute	34
GpLvdsBias	7
GpLvdsEn	15
GpLvdsPad0	0
GpLvdsPad1	1
GpLvdsPad2	33
GpLvdsPad3	35
GpValReg	5
HitOrCnt0	0
HitOrCnt1	0
HitOrCnt2	0
HitOrCnt3	0
HitOrMask0	0
HitOrMask1	0
HitOrMask2	0
HitOrMask3	0
InjAnaMode	0
InjDigEn	0
InjFineDelay	5
InjVcalHigh	416
InjVcalMed	200
InjVcalRange	1
Latency	500
LinComp	110
LinCompTa	110
LinFc	20
LinGdacL	408
LinGdacM	408
LinGdacR	408
LinKrumCurr	50
LinLdac	100
LinPreampL	300
LinPreampM	300
LinPreampR	300
LinPreampT	300
LinPreampTL	300
LinPreampTR	300
LinRefKrum	300
LockLossCnt	0
MonAdcTrim	0
MonSensAcbDem	0
MonSensAcbEn	0
MonSensAcbSelBias	0
MonSensSldoAnaDem	0
MonSensSldoAnaEn	0
MonSensSldoAnaSelBias	0
MonSensSldoDigDem	0
MonSensSldoDigEn	0
MonSensSldoDigSelBias	0
MonitorEnable	1
MonitorI	63
MonitorV	63
MonitoringDataAdc	0
NtcDac	100
NumOfEventsInStream	1
OddMask	0
PixAutoRow	1
PixBroadcast	0
PixConfMode	1
PixDefaultConfig	40162
PixDefaultConfigB	25373
PixPortal	40373
PixRegionCol	199
PixRegionRow	0
PtotCoreColEn0	0
PtotCoreColEn1	0
PtotCoreColEn2	0
PtotCoreColEn3	0
RdWrFifoErrCnt	0
ReadTrigCnt	0
ReadTrigLatency	1000
RingOscAClear	0
RingOscAEn	0
RingOscAOut	0
RingOscARoute	0
RingOscBClear	0
RingOscBEnBl	0
RingOscBEnBr	0
RingOscBEnCapA	0
RingOscBEnFf	0
RingOscBEnLvt	0
RingOscBOut	0
RingOscBRoute	0
RstCoreCol0	0
RstCoreCol1	0
RstCoreCol2	0
RstCoreCol3	0
SelfTrigDelay	512
SelfTrigDigThr	1
SelfTrigDigThrEn	0
SelfTrigEn	0
SelfTrigMulti	4
SelfTrigPattern	65534
SerEnLane	1
SerEnTap	1
SerInvTap	1
SerSelOut0	1
SerSelOut1	1
SerSelOut2	1
SerSelOut3	1
ServiceBlockEn	1
ServiceBlockPeriod	50
SkippedTrigCnt	0
SldoEnUndershuntA	0
SldoEnUndershuntD	0
SldoTrimA	7
SldoTrimD	6
TotEn6b4b	0
TotEn80	0
TotEnPtoa	0
TotEnPtot	0
TotPtotLatency	500
TrigCnt	0
TruncTimeoutConf	0
TwoLevelTrig	0
VrefIn	1
VrefRsensBot	0
VrefRsensTop	0

Parameter

ADCcalPar	10.0 0.185 4990.0
ChipId	13
EnforceNameIdCheck	True
InjCap	7.42
IrefTrim	8
KSenseInA	21502.682
KSenseInD	21367.424
KSenseShuntA	1040.0
KSenseShuntD	1040.0
KShuntA	1040.0
KShuntD	1040.0
Name	0x152ca
NfACB	1.284414
NfASLDO	1.286784
NfDSLDO	1.2874017
NtcCalPar	0.0007489 0.0002769 7.0595e-08
VcalPar	-1.0 0.2

SoftwareType

ChipID

Name

0x152ca

Institution

CERN_PIXEL_MODULES

ModuleSN

20UPGM22110271

VMUX30_ADC

IMUX63_ADC

TimeStart

1727082864

TimeEnd

1727082945

MODULE/POST_PARYLENE_WARM

6225078180e95c000a571e4f

1.01

64657cef8d79bac1f3f0056a

mts	2024-09-23 09:15:50.167000
cts	2024-09-23 09:15:50.167000
rev	0

rawHash

bca9430d96fdfd44db25ca80bb94219d

stage

MODULE/POST_PARYLENE_WARM
