Database for ITk Pixel Module

Serial Number	20UPGFC0086726
ProdDB ID	9ca7f5…f896ea
LocalDB ID	6225077d80e95c000a571e43
Component Type	fe_chip
Parents	20UPGM22210120 20UPGB42000017
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000338
Target Iref trim	None
Target Iref trim version	None

Key	Data
QC Passed	True
Date	9 months ago
component ObjectId	6225077d80e95c000a571e43
Stage	MODULE/FINAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	Md ArifAbdullaSamy
ObjectId of this record	67d2c8680f1e9cdb0e69cf5b
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.3.0
MEASUREMENT_DATE	2025-03-13T11:33:36.000+00:00
MEASUREMENT_DURATION	None
MEASUREMENT_VERSION	None
YARR_VERSION	v1.5.2
TUNING_TUNED_NOISE_95_HIGH	67.857
TUNING_TUNED_NOISE_95_LOW	34.309

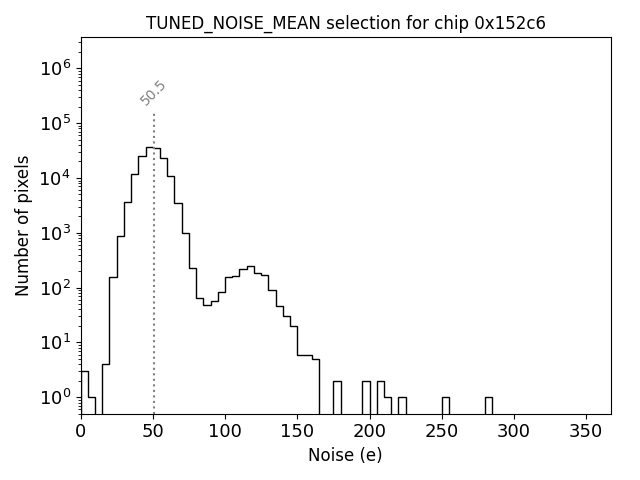

TUNING_TUNED_NOISE_MEAN	50.534
TUNING_TUNED_NOISE_SIGMA	10.529

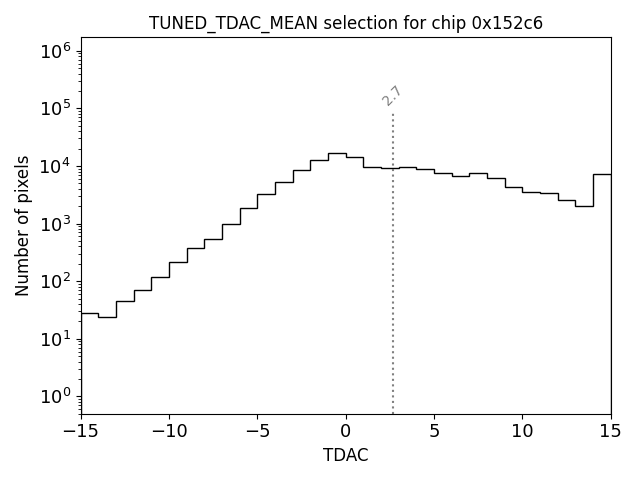

TUNING_TUNED_TDAC_MEAN	2.665
TUNING_TUNED_TDAC_SIGMA	5.308
TUNING_TUNED_THRESHOLD_95_HIGH	1549.745
TUNING_TUNED_THRESHOLD_95_LOW	1400.765
TUNING_TUNED_THRESHOLD_FAILED_FITS	4

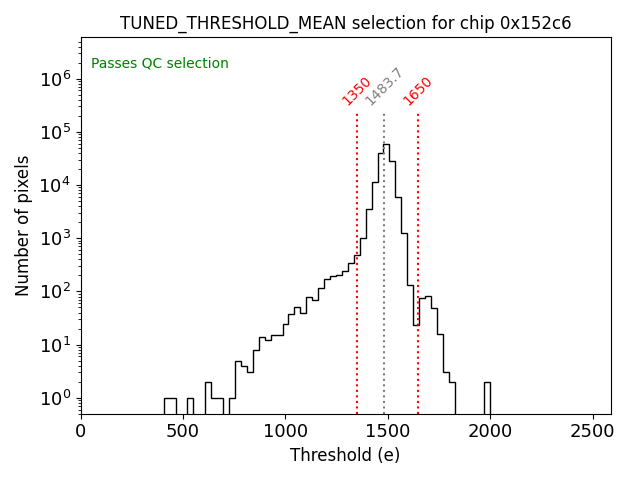

TUNING_TUNED_THRESHOLD_MEAN	1483.7
TUNING_TUNED_THRESHOLD_SIGMA	46
TUNING_TUNED_TOT_95_HIGH	7
TUNING_TUNED_TOT_95_LOW	7
TUNING_TUNED_TOT_MEAN	7
TUNING_TUNED_TOT_SIGMA	0
TUNING_UNTUNED_NOISE_95_HIGH	72.016
TUNING_UNTUNED_NOISE_95_LOW	35.684

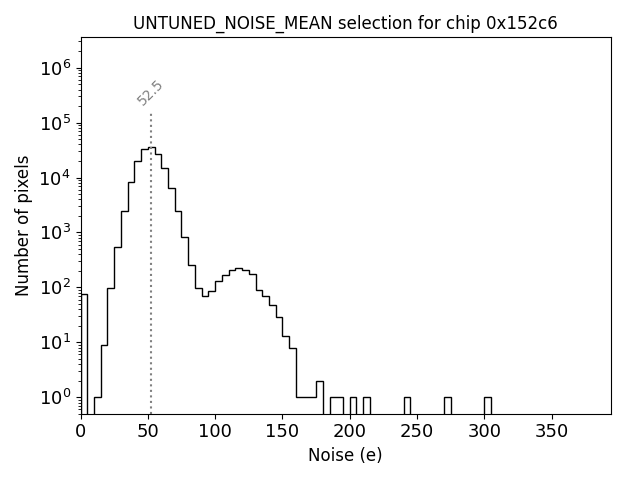

TUNING_UNTUNED_NOISE_MEAN	52.548
TUNING_UNTUNED_NOISE_SIGMA	10.98
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2785.308
TUNING_UNTUNED_THRESHOLD_95_LOW	1288.556

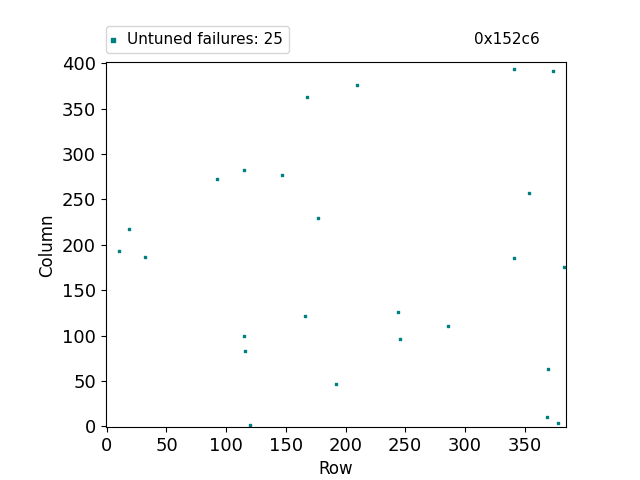

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	25

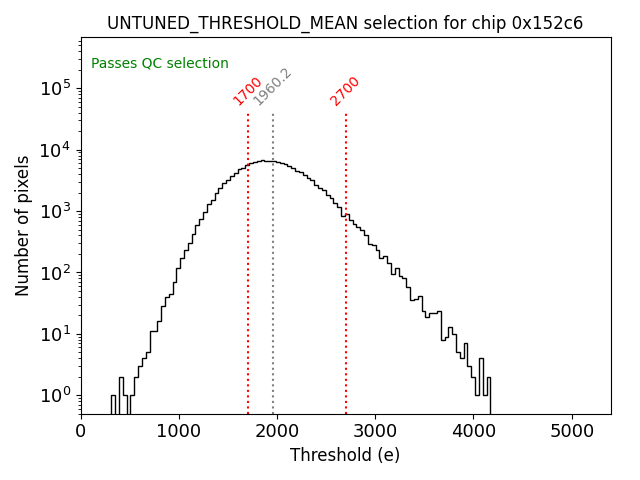

TUNING_UNTUNED_THRESHOLD_MEAN	1960
TUNING_UNTUNED_THRESHOLD_SIGMA	379

Filename	Contents
0x152c6_L2_cold.json	Download
output.log	Download
0x152c6.log	Download
20UPGFC0086726_MODULE__FINAL_COLD_TUNING.zip	Download

Expand ProductionDB Record

67d2eb2a2717b3491d94a759

state

ready

stateTs

2025-03-13T14:26:50.942Z

stateUserIdentity

8665-7663-1

date

2025-03-13T11:58:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	59d60ee4ed67730005160cd9
code	GL
name	Glasgow University

user

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

runNumber

67d2c8680f1e9cdb0e69cf5b

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.3.0	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2025-03-13T11:33:36.000+00:00	None	None
MEASUREMENT_DURATION	Measurement duration	integer	None	False	None	None	None
MEASUREMENT_VERSION	Measurement version	string	None	False	None	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.2	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	67.857	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	34.309	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	50.534	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	10.529	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	2.665	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	5.308	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1549.745	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1400.765	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	4	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1483.7	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	46	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	72.016	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	35.684	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	52.548	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	10.98	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2785.308	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1288.556	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	25	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	1960	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	379	None

cts

2025-03-13T14:26:50.942Z

sys

cts	2025-03-13T14:26:50.942Z
mts	2025-03-13T14:27:03.791Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

825bd937c23a4c3885aec115fa1930b1

2025-03-13T14:26:55.918Z

0x152c6_L2_cold.json

{"_id":"67d2b2f70f1e9cdb0e69c53a","serialNumber":"20UPGFC0086726","stage":"MODULE/FINAL_COLD","branch":"cold","current_revision_id":"67d2cf745c0dd6cf44ae482f"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/8/2/5/825bd937c23a4c3885aec115fa1930b1?authz=zteos64:MDAwMDAyYjZ4nO1QP0vDUBykBaV0Eheh0w9x6JLkvZf_Pxx0EgQXBZeQ4SUvSUPbvJC8gDr7OdydxKGjW3GuONVvIIJgN3GxFgcHR0dvuOG4O47rTtvdVrXxeDuZrvfWcjUsxXb7ouy3mGkksja4GvFvjpOqyCrZlCKvh4ZIlLa0G2UlhSYiwzOYYR_ueJYpIi-ONSc1LY3SlGg-c3yNW1FKqOs7LvOPZ63ghCvYbzIABoQhcZD6wAizQ2hygdSijkeD1ZwQsi_FJG5wUYagcpEUCisple4yYjOGlHkm3QsQ0yXQpjqlju57OiUhFHyc4KoHRIGwXKtwWEU28LJEGMha4e9BIcc8L_CHkiUSoW6ERAKq4nGCIIsoGfBRipvQXbzedd77z-T-Q5u9nF-fLuZnB2-T8cNWc9TZdW96_0f_xdFw9XQ5b38CZ_rZuw%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/8/2/5/825bd937c23a4c3885aec115fa1930b1

825bd937c23a4c3885aec115fa1930b1

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

ffefb699dbb76ceb7ab8ede0e32a479c

2025-03-13T14:27:03.791Z

TestRun_67d2eb2a2717b3491d94a759_Attachment_Pack.zip

/home/rd53a/localdb-tools/viewer/static/cache/thumbnail/TestRun_67d2eb2a2717b3491d94a759_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/f/f/e/ffefb699dbb76ceb7ab8ede0e32a479c?authz=zteos64:MDAwMDAyYjZ4nO2QvUvDUBTFaUWHTiI42OkqDi5J3st3Lg4q0qGjTlIivvS9pKFtXkheloKzs6ubg-Dawf-go-DX3-AsdHHUWBwcHB29B-7w49zL4bRmzVajWH2Z3s1W2supGuZ8qznJdxqmZQhZGkyN2PfuiyJLClnlPC2HBhdKq-1GXkiu8ciIa4nutm-7tqCxrbmxZWuUxkSLBDc1ZkcxoV7gemZw9NjoHTMF-1UCYAIxkbhIAzCJ6YRQpRypTV2f9hZxQki-iEW83iQPQaVcZAoLKZXumcSxfKTUI-5eDzGuBx2qU-rqga9TEkLGxgIXf4BnCHVahcMicoDlOcJAlgp_P-RyzNIMf5BESISy4hIJqIL1BYLMIjFgoxjXYLf7Ot38OD9oXt3exPPuaP3-ZLfTOTt8f5ufPkQbF-3_ov-iaLi-fH5a-gQ5p9le

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/f/f/e/ffefb699dbb76ceb7ab8ede0e32a479c

ffefb699dbb76ceb7ab8ede0e32a479c

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

6225077d80e95c000a571e43

9ca7f57d8d38067544e6ea30bdf896ea

ready

2022-03-06T19:11:57.713Z

9198-3887-1

False

None

False

None

20UPGFC0086726

None

parent

component

63d148b20499130036777fc9

code

70d38898e2d0bb74b7f86ece54cb9968

state

ready

stateTs

2023-01-25T15:20:18.290Z

stateUserIdentity

4709-4605-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB42000017

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/FINAL_WARM
name	Final Warm

highestLevelParent

component

6721134aa98f0200435738ea

code

10f76ecf106edcb6e9d93c0df37150d4

state

ready

stateTs

2024-10-29T16:54:34.589Z

stateUserIdentity

24-7185-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM22210120

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/FINAL_WARM
name	Final Warm

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V11
name	ITkpix_V1.1

code	name	dataType	required	default	value
WAFERSN	Wafer serial number	string	False	False	20UPGFW0000338

code	MODULE/FINAL_COLD
name	Final Cold
order	20
initial	False
final	False

code	BONN
name	University of Bonn

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
Tuning (TUNING)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
67d2bf…69ce38	MODULE/FINAL_COLD	DATA_TRANSMISSION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2d1…69d17a	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2c6…69cee9	MODULE/FINAL_COLD	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2c8…69cf5b	MODULE/FINAL_COLD	TUNING	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2bf…69ce12	MODULE/FINAL_COLD	LP_MODE	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2bf…69c9a8	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2be…69c6a4	MODULE/FINAL_COLD	VCAL_CALIBRATION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2bd…69c666	MODULE/FINAL_COLD	SLDO	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2bc…69c5e7	MODULE/FINAL_COLD	ANALOG_READBACK	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2b6…69c5a7	MODULE/FINAL_COLD	ADC_CALIBRATION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d273…69c179	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d273…69c1cb	MODULE/FINAL_WARM	LP_MODE	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2af…69c354	MODULE/FINAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2b0…69c47f	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2ad…69c281	MODULE/FINAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d273…69c1f1	MODULE/FINAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d272…69c11b	MODULE/FINAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d271…69c0c1	MODULE/FINAL_WARM	SLDO	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d270…69c027	MODULE/FINAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d26a…69bfcb	MODULE/FINAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d266…69be42	MODULE/LONG_TERM_STABILITY_TEST	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d269…69bf04	MODULE/LONG_TERM_STABILITY_TEST	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d164…69b385	MODULE/THERMAL_CYCLES	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d163…69b340	MODULE/THERMAL_CYCLES	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
6745f8…60fa03	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6745f8…60fa6f	MODULE/INITIAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
67364e…fc7a12	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
673632…fc7961	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
67363d…fc79c2	MODULE/INITIAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
674702…60fc0e	MODULE/INITIAL_WARM	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
673632…fc791f	MODULE/INITIAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6745f5…60f94f	MODULE/INITIAL_WARM	SLDO	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6745e8…60f8b4	MODULE/INITIAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6745dd…60f854	MODULE/INITIAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
622508…57422c	TESTONWAFER	FECHIP_TEST	MarkStandke	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0086726

MODULE/FINAL_METROLOGY

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/FINAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Final flatness measurement

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
