Database for ITk Pixel Module

Serial Number	20UPGFC0086724
ProdDB ID	45c83a…618ecb
LocalDB ID	6225077c80e95c000a571e3d
Component Type	fe_chip
Parents	20UPGM22210120 20UPGB42000017
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000338
Target Iref trim	None
Target Iref trim version	None

Key	Data
QC Passed	True
Date	a year ago
component ObjectId	6225077c80e95c000a571e3d
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	Md ArifAbdullaSamy
ObjectId of this record	6745f8d094bf3cb95f60fa54
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.9
MEASUREMENT_DATE	2024-11-15T09:54:01.000+00:00
YARR_VERSION	v1.5.2

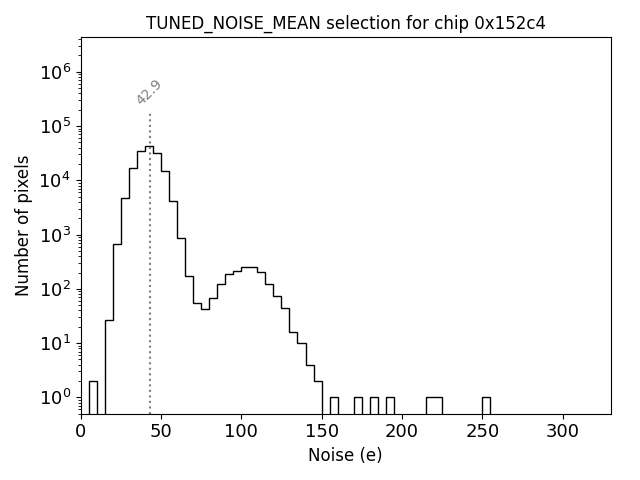

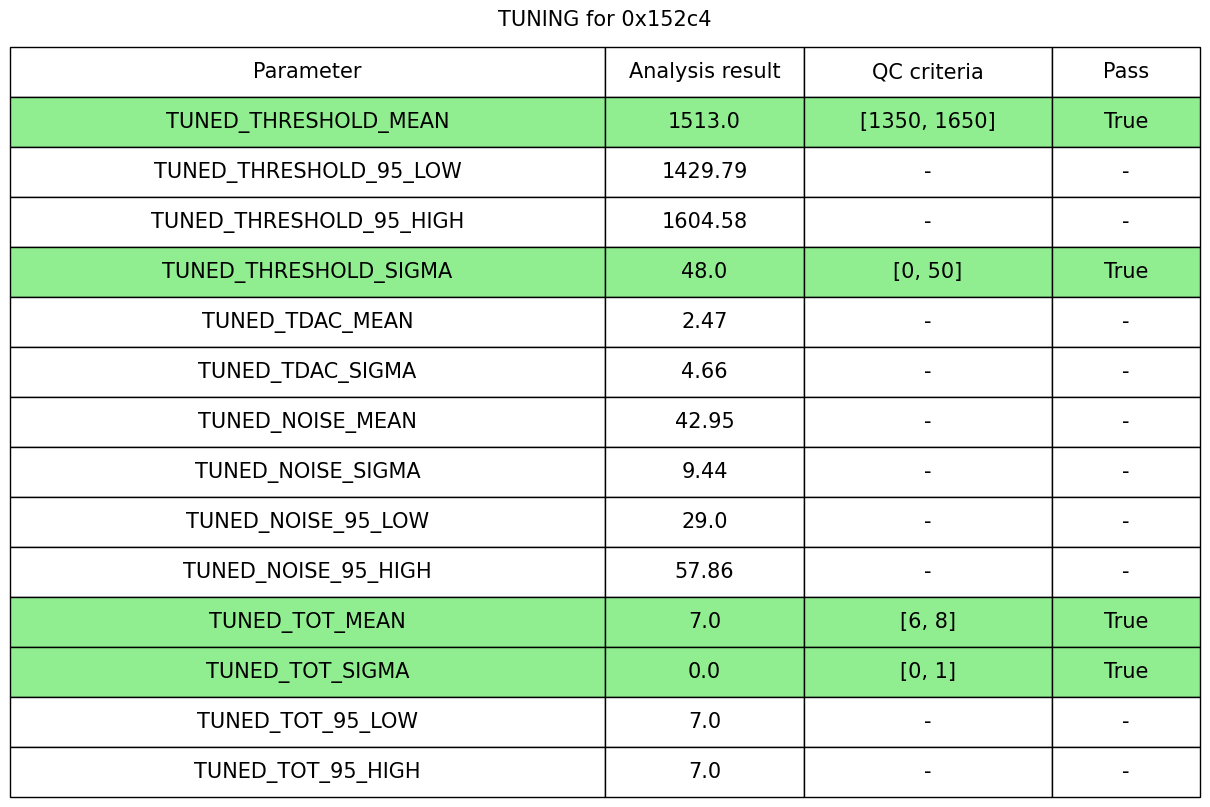

TUNING_TUNED_NOISE_95_HIGH	57.859
TUNING_TUNED_NOISE_95_LOW	29
TUNING_TUNED_NOISE_MEAN	42.948
TUNING_TUNED_NOISE_SIGMA	9.441
TUNING_TUNED_TDAC_MEAN	2.466
TUNING_TUNED_TDAC_SIGMA	4.658

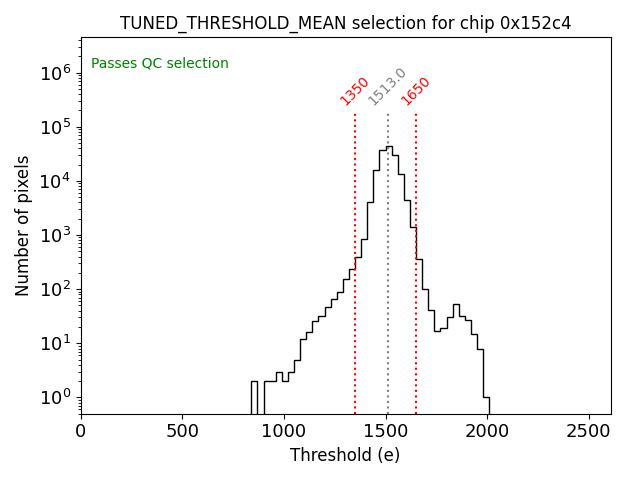

TUNING_TUNED_THRESHOLD_95_HIGH	1604.581
TUNING_TUNED_THRESHOLD_95_LOW	1429.792
TUNING_TUNED_THRESHOLD_FAILED_FITS	2
TUNING_TUNED_THRESHOLD_MEAN	1513
TUNING_TUNED_THRESHOLD_SIGMA	48

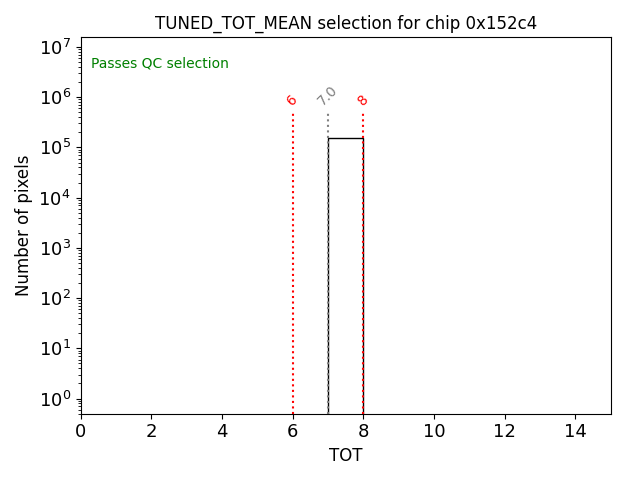

TUNING_TUNED_TOT_95_HIGH	7
TUNING_TUNED_TOT_95_LOW	7
TUNING_TUNED_TOT_MEAN	7
TUNING_TUNED_TOT_SIGMA	0

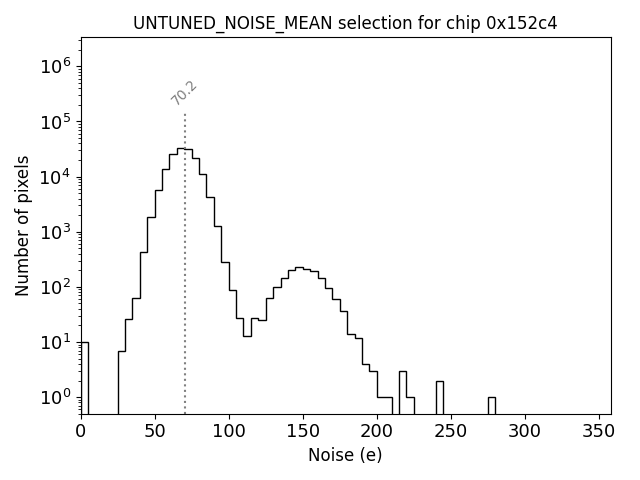

TUNING_UNTUNED_NOISE_95_HIGH	88.901
TUNING_UNTUNED_NOISE_95_LOW	51.922
TUNING_UNTUNED_NOISE_MEAN	70.179
TUNING_UNTUNED_NOISE_SIGMA	12.195
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

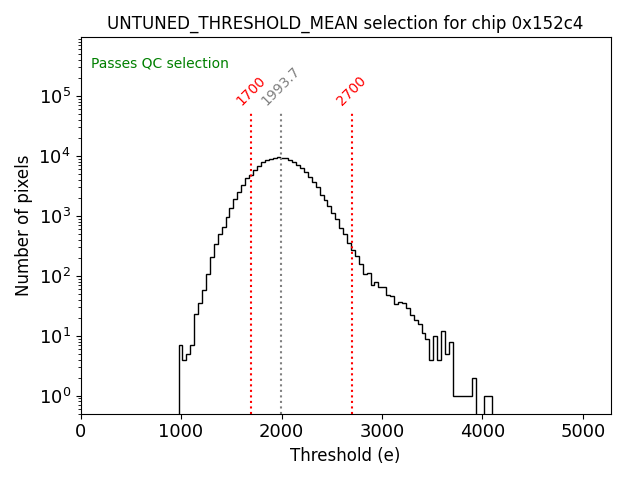

TUNING_UNTUNED_THRESHOLD_95_HIGH	2536.604
TUNING_UNTUNED_THRESHOLD_95_LOW	1510.087
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	5
TUNING_UNTUNED_THRESHOLD_MEAN	1994
TUNING_UNTUNED_THRESHOLD_SIGMA	264

Filename	Contents
0x152c4_L2_warm.json	Download
output.log	Download
0x152c4.log	Download
20UPGFC0086724_MODULE__INITIAL_WARM_TUNING.zip	Download

Expand ProductionDB Record

674703796cdccbcd6b3b0355

state

ready

stateTs

2024-11-27T11:33:13.786Z

stateUserIdentity

8665-7663-1

date

2024-11-26T16:35:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	59d60ee4ed67730005160cd9
code	GL
name	Glasgow University

user

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

runNumber

6745f8d094bf3cb95f60fa54

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.2.9	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2024-11-15T09:54:01.000+00:00	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.2	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	57.859	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	29	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	42.948	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	9.441	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	2.466	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.658	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1604.581	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1429.792	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	2	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1513	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	48	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	88.901	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	51.922	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	70.179	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	12.195	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2536.604	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1510.087	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	5	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	1994	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	264	None

cts

2024-11-27T11:33:13.786Z

sys

cts	2024-11-27T11:33:13.786Z
mts	2024-11-27T11:33:23.275Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

26cfeb98a93c8db60568a981ab9eda0d

2024-11-27T11:33:19.085Z

0x152c4_L2_warm.json

{"_id":"673616f469277b0512fc7769","serialNumber":"20UPGFC0086724","stage":"MODULE/INITIAL_WARM","branch":"warm","current_revision_id":"6745f52594bf3cb95f60f999"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/2/6/c/26cfeb98a93c8db60568a981ab9eda0d?authz=zteos64:MDAwMDAyYjZ4nO1QMUvDUBikBTt0EsGl04cIKpLkvZcmab5J1446hggveUka2uaF5AWhgzh27iSODoJ7xT-QHyA4OLgLDl36C4zFwcHR0RtuOO6O47p1u9sqth-Wj3Wnt5WqcS722rP8sMVMI5KlwdWEf3MYFVlSyCoXaTk2RKS0xm7khRSaCAxm2EY43LdI3xLmINTs2LQ0SmOiuSHlGu8HMaGOazvMPXtueedcwWmVADAgDClDQoERZvlQpQJpn9oD6m3m-JB8KSZxvFnug0pFlCkspFS6w0zHIU3aMd0TDzFugBbVKbV1d6BT4kPGpxFuekBkCM1aheMisIDnOcJIlgp_Dwo55WmGP5QkkghlJSQSUAUPIwSZBdGIT2LcgfqeLN52jxYvq4Pr9-H86uL18qlarmsy6Rx_xHer3v_Rf3E03Mxv11uf7n3Zbw%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/2/6/c/26cfeb98a93c8db60568a981ab9eda0d

26cfeb98a93c8db60568a981ab9eda0d

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

426ef5eab3ff90c31c1680d23ad0b1f3

2024-11-27T11:33:23.275Z

TestRun_674703796cdccbcd6b3b0355_Attachment_Pack.zip

/home/rd53a/localdb-tools/viewer/static/cache/thumbnail/TestRun_674703796cdccbcd6b3b0355_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/2/6/426ef5eab3ff90c31c1680d23ad0b1f3?authz=zteos64:MDAwMDAyYjZ4nO1QvUoDQRgkES0igiRdmnyIiCiX2937_xAxbUpthHDF3u3e5Ui8Pe72CuND2FtaiCh28Q1irT6DL2IMFhaWlk4xxTAzDNNaNFuNcvth_rzY6K5nelKIneas2G8wy5SqMrme8m-OZZmnpaoLkVUTU0htLO1mUSphiMi0TWa6w12HuDIObG64ieUYlCbEiGImDW5HCaFe4HosOH1rjM64hkGdAjAgDClDwoAR5oRQZwKpTV2fjlZzQki_FIt4o1kRgs6EzDWWSum-xyzPd5ES5gcnI8RkCXRon1K3H_h9SkLI-YXEVQ-IHGG5VuOkjBzgRYEwVpXG34NCXfAsxx9KKhVCVQuFBHTJY4mg8kiO-TTBNlwNby8H8_f6YO-4p5u9u4_O1uHw5gjam4_nneBp0f0_-i-OhpfX6_u1T1xZ0-c%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/2/6/426ef5eab3ff90c31c1680d23ad0b1f3

426ef5eab3ff90c31c1680d23ad0b1f3

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

6225077c80e95c000a571e3d

45c83a2f607742dee15e39ae1d618ecb

ready

2022-03-06T19:11:56.120Z

9198-3887-1

False

None

False

None

20UPGFC0086724

None

parent

component

63d148b20499130036777fc9

code

70d38898e2d0bb74b7f86ece54cb9968

state

ready

stateTs

2023-01-25T15:20:18.290Z

stateUserIdentity

4709-4605-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB42000017

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/WIREBONDING
name	Wire Bonding

highestLevelParent

component

6721134aa98f0200435738ea

code

10f76ecf106edcb6e9d93c0df37150d4

state

ready

stateTs

2024-10-29T16:54:34.589Z

stateUserIdentity

24-7185-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM22210120

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/WIREBONDING
name	Wire Bonding

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V11
name	ITkpix_V1.1

code	name	dataType	required	default	value
WAFERSN	Wafer serial number	string	False	False	20UPGFW0000338

code	MODULE/INITIAL_WARM
name	Initial Warm
order	8
initial	False
final	False

code	BONN
name	University of Bonn

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
Tuning (TUNING)	No result	N/A

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
Tuning (TUNING)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
67d2bf…69ce59	MODULE/FINAL_COLD	DATA_TRANSMISSION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2d1…69d1a1	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2c6…69cede	MODULE/FINAL_COLD	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2c8…69cf76	MODULE/FINAL_COLD	TUNING	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2bf…69ce2d	MODULE/FINAL_COLD	LP_MODE	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2bf…69cb81	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2be…69c6d7	MODULE/FINAL_COLD	VCAL_CALIBRATION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2bd…69c693	MODULE/FINAL_COLD	SLDO	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2bc…69c656	MODULE/FINAL_COLD	ANALOG_READBACK	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2b6…69c5c2	MODULE/FINAL_COLD	ADC_CALIBRATION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d273…69c1bb	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d273…69c1e6	MODULE/FINAL_WARM	LP_MODE	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d2af…69c305	MODULE/FINAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2b0…69c42e	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d2ad…69c259	MODULE/FINAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d274…69c227	MODULE/FINAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d272…69c163	MODULE/FINAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d271…69c103	MODULE/FINAL_WARM	SLDO	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d270…69c0ab	MODULE/FINAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d26a…69bffb	MODULE/FINAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	9 months ago	9 months ago	No tags	Selected
67d265…69bdcc	MODULE/LONG_TERM_STABILITY_TEST	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d269…69bee2	MODULE/LONG_TERM_STABILITY_TEST	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d164…69b3ba	MODULE/THERMAL_CYCLES	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
67d163…69b343	MODULE/THERMAL_CYCLES	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	9 months ago	No tags	Selected
6745f8…60fa1e	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6745f8…60fa54	MODULE/INITIAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
67364e…fc7a3d	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
673633…fc798e	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
67363d…fc79e3	MODULE/INITIAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
674703…60fc51	MODULE/INITIAL_WARM	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
673632…fc7952	MODULE/INITIAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6745f5…60f991	MODULE/INITIAL_WARM	SLDO	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6745e9…60f938	MODULE/INITIAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6745dd…60f884	MODULE/INITIAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
622508…574196	TESTONWAFER	FECHIP_TEST	MarkStandke	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0086724

MODULE/FINAL_METROLOGY

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Final flatness measurement

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
