Database for ITk Pixel Module

Serial Number	20UPGFC0086710
ProdDB ID	a36344…2474b0
LocalDB ID	6225077680e95c000a571e28
Component Type	fe_chip
Parents	20UPGM22110271 20UPGB42000018
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000338

Key	Data
QC Passed	True
Date	a year ago
component ObjectId	6225077680e95c000a571e28
Stage	MODULE/INITIAL_WARM
Test Type	TUNING
Institute ObjectId
User Name	JennyLunde
ObjectId of this record	66a9f96165180edc47d404bb
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.6

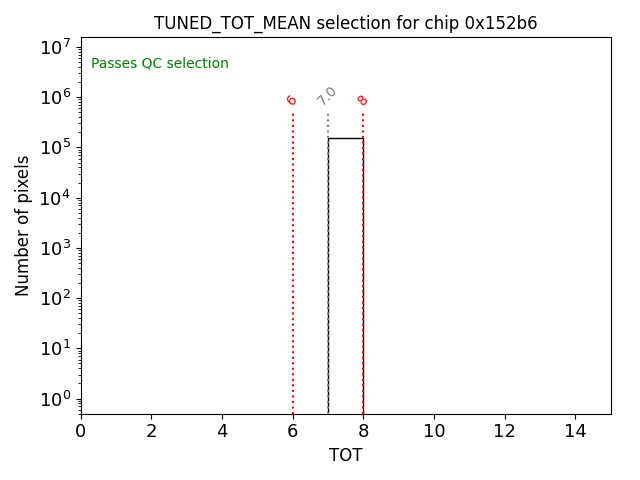

TUNING_TUNED_NOISE_95_HIGH	55.3
TUNING_TUNED_NOISE_95_LOW	27.957

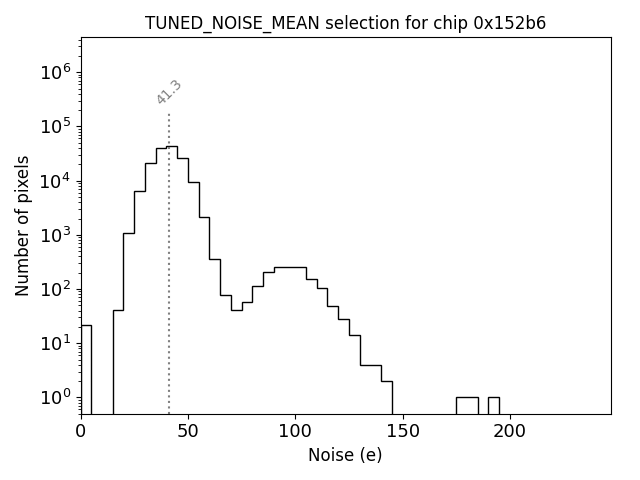

TUNING_TUNED_NOISE_MEAN	41.291
TUNING_TUNED_NOISE_SIGMA	8.738

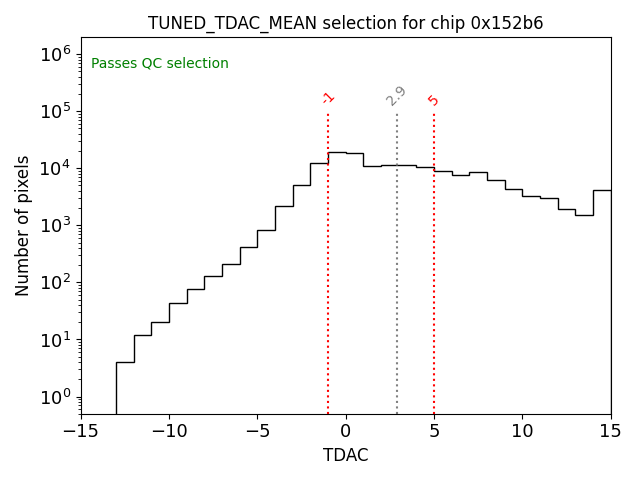

TUNING_TUNED_TDAC_MEAN	2.9
TUNING_TUNED_TDAC_SIGMA	4.5
TUNING_TUNED_THRESHOLD_95_HIGH	1577.754
TUNING_TUNED_THRESHOLD_95_LOW	1444.02

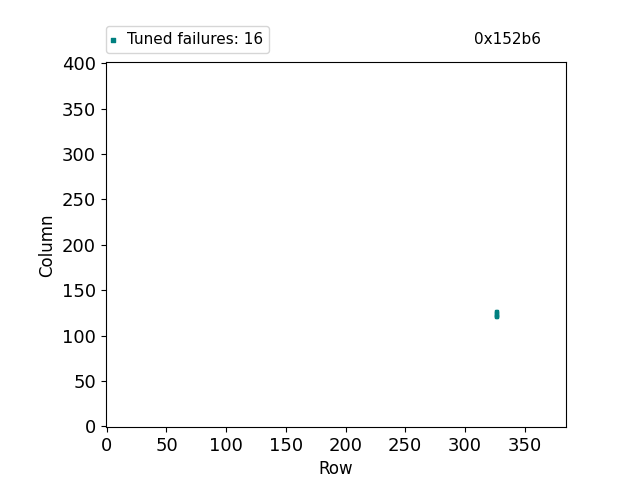

TUNING_TUNED_THRESHOLD_FAILED_FITS	16

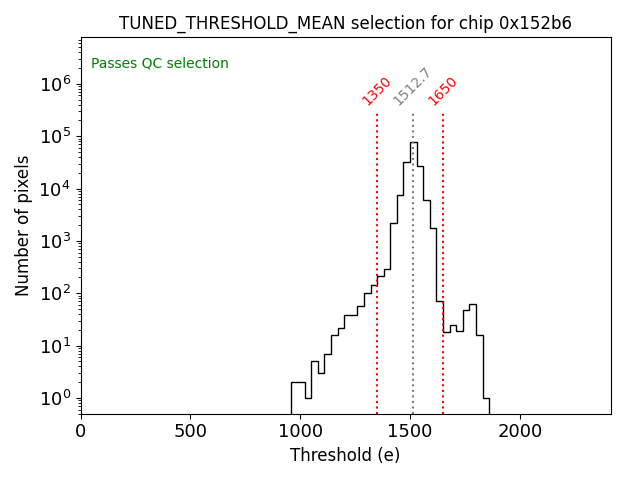

TUNING_TUNED_THRESHOLD_MEAN	1512.7
TUNING_TUNED_THRESHOLD_SIGMA	33
TUNING_TUNED_TOT_95_HIGH	7
TUNING_TUNED_TOT_95_LOW	7
TUNING_TUNED_TOT_MEAN	7
TUNING_TUNED_TOT_SIGMA	0
TUNING_UNTUNED_NOISE_95_HIGH	56.991
TUNING_UNTUNED_NOISE_95_LOW	28.845

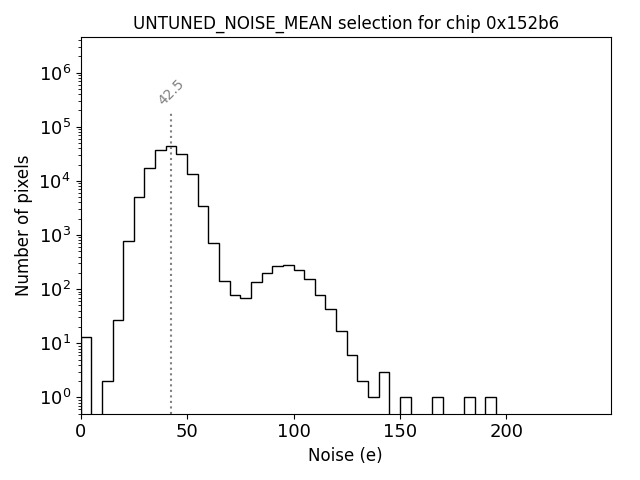

TUNING_UNTUNED_NOISE_MEAN	42.493
TUNING_UNTUNED_NOISE_SIGMA	8.709

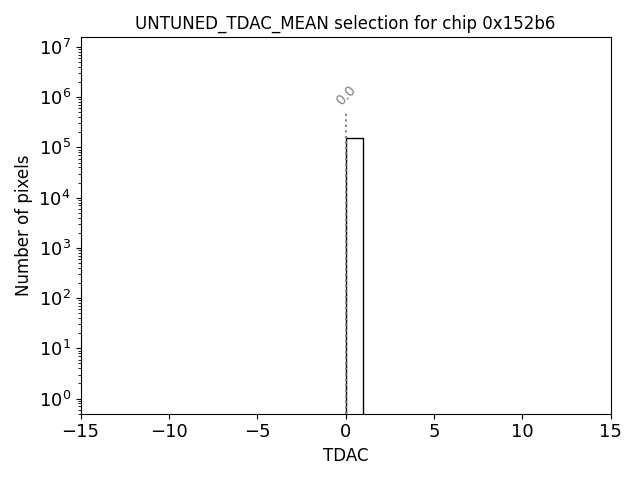

TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0

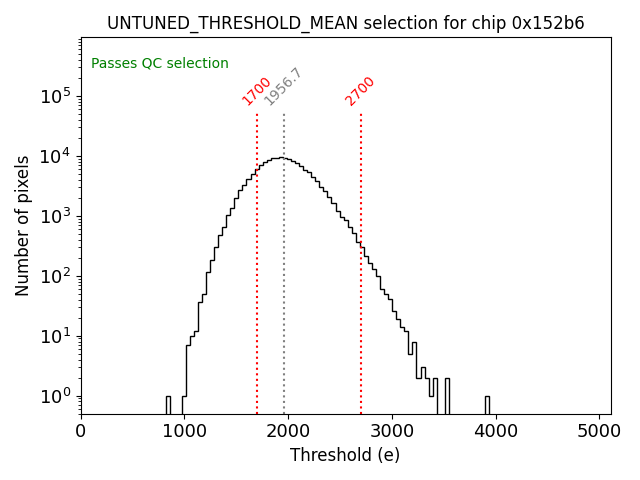

TUNING_UNTUNED_THRESHOLD_95_HIGH	2520.804
TUNING_UNTUNED_THRESHOLD_95_LOW	1472.084
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	17
TUNING_UNTUNED_THRESHOLD_MEAN	1957
TUNING_UNTUNED_THRESHOLD_SIGMA	265

Filename	Contents
0x152b6_MODULE/INITIAL_WARM_L2_warm.json	Download
output.log	Download
0x152b6.log	Download
20UPGFC0086710_MODULE__INITIAL_WARM_TUNING.zip	Download

Expand ProductionDB Record

66aa2351481d360042b49dab

state

ready

stateTs

2024-07-31T11:43:13.029Z

stateUserIdentity

1753-6308-1

date

2024-07-31T08:44:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	5b97b8cab937ae0009206750
code	CERN
name	CERN

user

id	651d2b1af0937c0038e520a9
userIdentity	1753-6308-1
firstName	Jenny
middleName
lastName	Lunde

runNumber

66a9f96165180edc47d404bb

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.2.6	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	55.3	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	27.957	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	41.291	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	8.738	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	2.9	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.5	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1577.754	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1444.02	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	16	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1512.7	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	33	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	56.991	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	28.845	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	42.493	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	8.709	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2520.804	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1472.084	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	17	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	1957	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	265	None

cts

2024-07-31T11:43:13.030Z

sys

cts	2024-07-31T11:43:13.030Z
mts	2024-07-31T11:43:18.443Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

6f5ac2283c24afd96dc2e7a83b7aa87a

2024-07-31T11:43:15.357Z

0x152b6_MODULE/INITIAL_WARM_L2_warm.json

{"_id":"6630feab79b1d10f8b47e799","serialNumber":"20UPGFC0086710","stage":"MODULE/INITIAL_WARM","branch":"warm","current_revision_id":"66a9fec130162dd401340a21"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/f/5/6f5ac2283c24afd96dc2e7a83b7aa87a?authz=zteos64:MDAwMDAyOTl4nOPaxsTFWCRw-d_NnWxSrJkl2QUpSkxVBRqMRsb6qfnF-oklOYlQMjm1KC-9KL-0ICWzOFs_JbVEF6hcv6AoP0U3JUnfTD9N39RLJcXQLC3ZzDhRN9EoxVLX0DA1TdfCLNlSN9EkKc3A0NzSzNzIMugQY3RIRqmCX36ZgqGJgpGxlYmxlYG5gpGBkUmsQmlmipWhiaGZhWE02DmxCukgEWMD8-iqgliFksyU1LwSq6L8_BI9I1MLQ1MjIysLIzOHaCurNCCwMjXUMzQ007O00DM0iFXIS8xNtQIbo5CSZ6UAdGyJVXZRkqlCYkGBlUJGfnGJFXaNKfm5iZl5Vkgi6an5VgamhsYKxaUpQJaQQrzaFdUd0dNX3_84WVDylPiyoMZK9-OnFecE1lensWT_0ZAaDVryglZh2fstkQARY87M

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/f/5/6f5ac2283c24afd96dc2e7a83b7aa87a

6f5ac2283c24afd96dc2e7a83b7aa87a

id	651d2b1af0937c0038e520a9
userIdentity	1753-6308-1
firstName	Jenny
middleName
lastName	Lunde

43267acf581dcf4cf99b91fb41c851cd

2024-07-31T11:43:18.443Z

TestRun_66aa2351481d360042b49dab_Attachment_Pack.zip

/home/data/viewer/static/cache/thumbnail/TestRun_66aa2351481d360042b49dab_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/3/2/43267acf581dcf4cf99b91fb41c851cd?authz=zteos64:MDAwMDAyOWF4nO2QvUvEQBDFuUMFFUTsvGoQC5t87OZ7KmsLC7ELKTa3m7twXnZJNoJXCFb-HyI2NlaC7bWWViJYCIIIgohoJ8bDwsLK2ikew483w-PNnbfnWuXi1cf1xUxnOtcDxVfaI7XWoo4lZGUxvcO-tSvKolfKWvG8GlhcaKOxW6qU3OCp5VqORTdWOYmijPmhwSiPDEJEZqQeCwzmpplNgsgPaLQ1bsXb_Ro25S4QF6iDroN2ANSmbgJ1zpG4xA9JPImTQO-LOHYQj1QCOuei0FhKqU3qhcTzIgypvx4jZs2gR0xCfDMKTWInULChwMkb4AVCE1bjoEw9YEoh9GWl8fdDLocsL_AH6QmJtkccqGrebEswXkiNu9vX_bP5DPoP7aPj073H98uqy2fflm8OD547_9X-rVp4uj95mfoEQgjRlA%3d%3d

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/4/3/2/43267acf581dcf4cf99b91fb41c851cd

43267acf581dcf4cf99b91fb41c851cd

id	651d2b1af0937c0038e520a9
userIdentity	1753-6308-1
firstName	Jenny
middleName
lastName	Lunde

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

6225077680e95c000a571e28

a36344c07bed5ca08d581b2dcb2474b0

ready

2022-03-06T19:11:50.450Z

9198-3887-1

False

None

False

None

20UPGFC0086710

None

parent

component

63d148b29eb28800363f2084

code

f3dac899929613330809034d51cf9ba2

state

ready

stateTs

2023-01-25T15:20:18.399Z

stateUserIdentity

4709-4605-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB42000018

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/INITIAL_WARM
name	Initial Warm

highestLevelParent

component

64f5e0f6703d130042de00c4

code

9fb82e0b8c0b5b50b1b4041a0ccc85b8

state

ready

stateTs

2023-09-04T13:51:50.947Z

stateUserIdentity

4709-4605-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM22110271

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/INITIAL_WARM
name	Initial Warm

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V11
name	ITkpix_V1.1

code	name	dataType	required	default	value
WAFERSN	Wafer serial number	string	False	False	20UPGFW0000338

code	MODULE/INITIAL_WARM
name	Initial Warm
order	8
initial	False
final	False

code	BONN
name	University of Bonn

Test Type	Local Result
Minimal Health Test (MIN_HEALTH_TEST)	No TestRun!
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No TestRun!

LDB ID	TestRun Code	QC Passed	Inspector	Measurement Date	Analysis Date	Analysis Version	Tags	QC Registration
66a8fb…d402aa	INJECTION_CAPACITANCE	Pass	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected
66a8fd…d4034a	DATA_TRANSMISSION	Pass	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected
66a8fd…d40327	UNDERSHUNT_PROTECTION	Pass	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected
66a8fc…d40307	OVERVOLTAGE_PROTECTION	Fail	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected
66a8fc…d402e2	LP_MODE	Pass	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected
66a9f6…d4039b	SLDO	Fail	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected
66a8f1…25954e	ADC_CALIBRATION	Pass	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected
66a9ff…d40690	PIXEL_FAILURE_ANALYSIS	Fail	JennyLunde	N/A	a year ago	2.2.6	No tags	Selected
66a9f9…d404bb	TUNING	Pass	JennyLunde	N/A	a year ago	2.2.6	No tags	Selected
66a9f7…d40468	MIN_HEALTH_TEST	Pass	JennyLunde	N/A	a year ago	2.2.6	No tags	Selected
66a8fb…d40267	VCAL_CALIBRATION	Pass	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected
66a8f6…259585	ANALOG_READBACK	Fail	JennyLunde	a year ago	a year ago	2.2.6	No tags	Selected

Past QC Stages and Results

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	Registered	Registered
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	Registered	Registered
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	Registered	Registered
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
6718cc…277d6c	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	JennyLunde	a year ago	a year ago	No tags	Selected
6718cd…277dfe	MODULE/FINAL_WARM	LP_MODE	JennyLunde	a year ago	a year ago	No tags	Selected
673e02…f0aa42	MODULE/FINAL_WARM	TUNING	JennyLunde	N/A	a year ago	No tags	Selected
673e04…f0aba1	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	JennyLunde	N/A	a year ago	No tags	Selected
6718d9…277f07	MODULE/FINAL_WARM	MIN_HEALTH_TEST	JennyLunde	N/A	a year ago	No tags	Selected
6718cd…277e7d	MODULE/FINAL_WARM	DATA_TRANSMISSION	JennyLunde	a year ago	a year ago	No tags	Selected
6718cd…277e41	MODULE/FINAL_WARM	UNDERSHUNT_PROTECTION	JennyLunde	a year ago	a year ago	No tags	Selected
6718cb…277cc6	MODULE/FINAL_WARM	VCAL_CALIBRATION	JennyLunde	a year ago	a year ago	No tags	Selected
6718c9…277c2c	MODULE/FINAL_WARM	SLDO	JennyLunde	a year ago	a year ago	No tags	Selected
6718c8…277b4e	MODULE/FINAL_WARM	ANALOG_READBACK	JennyLunde	a year ago	a year ago	No tags	Selected
6718c2…277ad6	MODULE/FINAL_WARM	ADC_CALIBRATION	JennyLunde	a year ago	a year ago	No tags	Selected
671a08…5a4e5f	MODULE/FINAL_COLD	DATA_TRANSMISSION	Milou van Rijnbach	a year ago	a year ago	No tags	Selected
671a34…5a5403	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	Milou van Rijnbach	N/A	a year ago	No tags	Selected
671a33…5a523f	MODULE/FINAL_COLD	MIN_HEALTH_TEST	Milou van Rijnbach	N/A	a year ago	No tags	Selected
671a34…5a52b1	MODULE/FINAL_COLD	TUNING	Milou van Rijnbach	N/A	a year ago	No tags	Selected
671a07…5a4e39	MODULE/FINAL_COLD	LP_MODE	Milou van Rijnbach	a year ago	a year ago	No tags	Selected
671a06…5a4dd3	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	Milou van Rijnbach	a year ago	a year ago	No tags	Selected
671a06…5a4d93	MODULE/FINAL_COLD	VCAL_CALIBRATION	Milou van Rijnbach	a year ago	a year ago	No tags	Selected
671a05…5a4d59	MODULE/FINAL_COLD	SLDO	Milou van Rijnbach	a year ago	a year ago	No tags	Selected
671a04…5a4d01	MODULE/FINAL_COLD	ANALOG_READBACK	Milou van Rijnbach	a year ago	a year ago	No tags	Selected
6719fe…5a4b6c	MODULE/FINAL_COLD	ADC_CALIBRATION	Milou van Rijnbach	a year ago	a year ago	No tags	Selected
6718da…278006	MODULE/FINAL_WARM	TUNING	Milou van Rijnbach	N/A	a year ago	No tags
6718f5…5a43f9	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	Milou van Rijnbach	N/A	a year ago	No tags
6717c8…277824	MODULE/THERMAL_CYCLES	PIXEL_FAILURE_ANALYSIS	Milou van Rijnbach	N/A	a year ago	No tags	Selected
6717c8…277750	MODULE/THERMAL_CYCLES	MIN_HEALTH_TEST	Milou van Rijnbach	N/A	a year ago	No tags	Selected
671661…273f8a	MODULE/WIREBOND_PROTECTION	PIXEL_FAILURE_ANALYSIS	Milou van Rijnbach	N/A	a year ago	No tags	Selected
671660…273ee0	MODULE/WIREBOND_PROTECTION	MIN_HEALTH_TEST	Milou van Rijnbach	N/A	a year ago	No tags	Selected
66f13b…076595	MODULE/POST_PARYLENE_WARM	LP_MODE	JennyLunde	a year ago	a year ago	No tags	Selected
66f18f…076bd0	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	JennyLunde	N/A	a year ago	No tags	Selected
66f18f…076a8d	MODULE/POST_PARYLENE_WARM	TUNING	JennyLunde	N/A	a year ago	No tags	Selected
66f18e…076a33	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	JennyLunde	N/A	a year ago	No tags	Selected
66f13a…076543	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	JennyLunde	a year ago	a year ago	No tags	Selected
66f13b…0765bb	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	JennyLunde	a year ago	a year ago	No tags	Selected
66f139…0764e5	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	JennyLunde	a year ago	a year ago	No tags	Selected
66f138…07648b	MODULE/POST_PARYLENE_WARM	SLDO	JennyLunde	a year ago	a year ago	No tags	Selected
66e92b…074466	MODULE/POST_PARYLENE_WARM	UNDERSHUNT_PROTECTION	JennyLunde	a year ago	a year ago	No tags	Selected
66e165…d0dcca	MODULE/POST_PARYLENE_WARM	OVERVOLTAGE_PROTECTION	JennyLunde	a year ago	a year ago	No tags	Selected
66f137…076415	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	JennyLunde	a year ago	a year ago	No tags	Selected
66f131…0763c5	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	JennyLunde	a year ago	a year ago	No tags	Selected
66ace2…9049df	MODULE/INITIAL_COLD	DATA_TRANSMISSION	JennyLunde	a year ago	a year ago	No tags	Selected
66ace2…9049b9	MODULE/INITIAL_COLD	UNDERSHUNT_PROTECTION	JennyLunde	a year ago	a year ago	No tags	Selected
66ace1…904994	MODULE/INITIAL_COLD	OVERVOLTAGE_PROTECTION	JennyLunde	a year ago	a year ago	No tags	Selected
66ace1…904970	MODULE/INITIAL_COLD	LP_MODE	JennyLunde	a year ago	a year ago	No tags	Selected
66ace0…90493a	MODULE/INITIAL_COLD	INJECTION_CAPACITANCE	JennyLunde	a year ago	a year ago	No tags	Selected
66acdf…9048b4	MODULE/INITIAL_COLD	SLDO	JennyLunde	a year ago	a year ago	No tags	Selected
66acd6…904815	MODULE/INITIAL_COLD	ADC_CALIBRATION	JennyLunde	a year ago	a year ago	No tags	Selected
66a8fb…d402aa	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	JennyLunde	a year ago	a year ago	No tags	Selected
66a8fd…d4034a	MODULE/INITIAL_WARM	DATA_TRANSMISSION	JennyLunde	a year ago	a year ago	No tags	Selected
66a8fd…d40327	MODULE/INITIAL_WARM	UNDERSHUNT_PROTECTION	JennyLunde	a year ago	a year ago	No tags	Selected
66a8fc…d40307	MODULE/INITIAL_WARM	OVERVOLTAGE_PROTECTION	JennyLunde	a year ago	a year ago	No tags	Selected
66a8fc…d402e2	MODULE/INITIAL_WARM	LP_MODE	JennyLunde	a year ago	a year ago	No tags	Selected
66a9f6…d4039b	MODULE/INITIAL_WARM	SLDO	JennyLunde	a year ago	a year ago	No tags	Selected
66a8f1…25954e	MODULE/INITIAL_WARM	ADC_CALIBRATION	JennyLunde	a year ago	a year ago	No tags	Selected
622508…573f89	TESTONWAFER	FECHIP_TEST	MarkStandke	N/A	a year ago	No tags	Selected
66e14b…d0d7be	MODULE/PARYLENE_UNMASKING	PIXEL_FAILURE_ANALYSIS	JennyLunde	N/A	a year ago	No tags	Selected
66e067…d0d6d9	MODULE/PARYLENE_UNMASKING	MIN_HEALTH_TEST	JennyLunde	N/A	a year ago	No tags	Selected
66acee…905058	MODULE/INITIAL_COLD	PIXEL_FAILURE_ANALYSIS	JennyLunde	N/A	a year ago	No tags	Selected
66ace5…904aa3	MODULE/INITIAL_COLD	MIN_HEALTH_TEST	JennyLunde	N/A	a year ago	No tags	Selected
66ace9…904b0e	MODULE/INITIAL_COLD	TUNING	JennyLunde	N/A	a year ago	No tags	Selected
66ace0…9048f8	MODULE/INITIAL_COLD	VCAL_CALIBRATION	JennyLunde	a year ago	a year ago	No tags	Selected
66acdb…904850	MODULE/INITIAL_COLD	ANALOG_READBACK	JennyLunde	a year ago	a year ago	No tags	Selected
66a9ff…d40690	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	JennyLunde	N/A	a year ago	No tags	Selected
66a9f9…d404bb	MODULE/INITIAL_WARM	TUNING	JennyLunde	N/A	a year ago	No tags	Selected
66a9f7…d40468	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	JennyLunde	N/A	a year ago	No tags	Selected
66a8fb…d40267	MODULE/INITIAL_WARM	VCAL_CALIBRATION	JennyLunde	a year ago	a year ago	No tags	Selected
66a8f6…259585	MODULE/INITIAL_WARM	ANALOG_READBACK	JennyLunde	a year ago	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0086710

MODULE/LONG_TERM_STABILITY_TEST

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Long Term Stability Test

Candidate TestRuns of this Stage

Past QC Stages and Results

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
