Database for ITk Pixel Module

Serial Number	20UPGFC0084952
ProdDB ID	d276c3…094088
LocalDB ID	6222073d80e95c000a45ebe0
Component Type	fe_chip
Parents	20UPGM22210906 20UPGB42000066
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000331

Key	Data
QC Passed	True
Date	a year ago
component ObjectId	6222073d80e95c000a45ebe0
Stage	MODULE/INITIAL_COLD
Test Type	TUNING
Institute ObjectId
User Name	Md ArifAbdullaSamy
ObjectId of this record	66a1146c10fd774f09dcbae1
ObjectId of RAW record	None
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.5rc1
TUNING_TUNED_NOISE_95_HIGH	52.251
TUNING_TUNED_NOISE_95_LOW	25.09

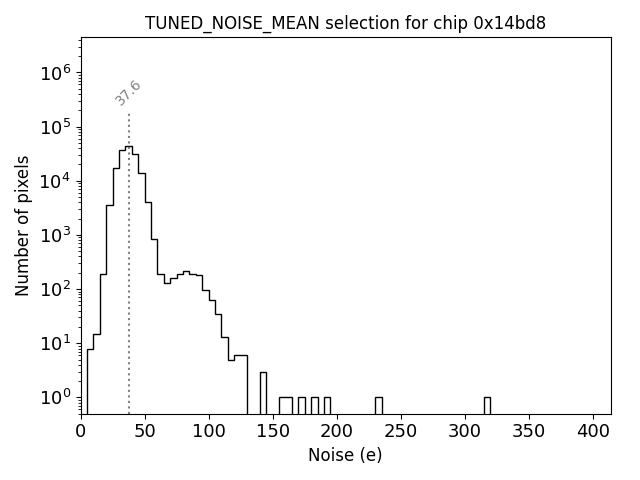

TUNING_TUNED_NOISE_MEAN	37.648
TUNING_TUNED_NOISE_SIGMA	8.079

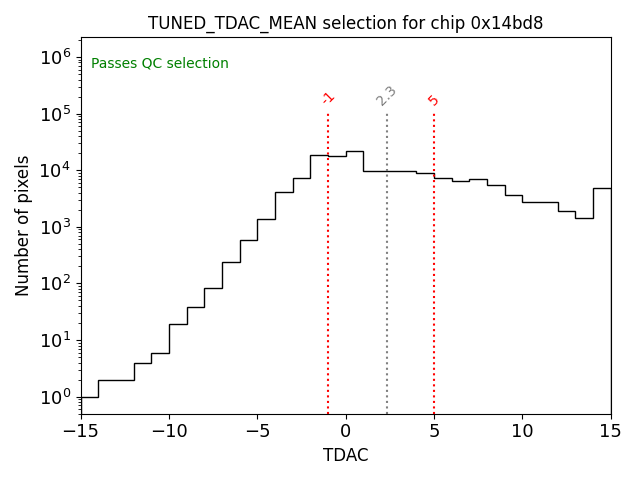

TUNING_TUNED_TDAC_MEAN	2.3
TUNING_TUNED_TDAC_SIGMA	4.7
TUNING_TUNED_THRESHOLD_95_HIGH	1568.409
TUNING_TUNED_THRESHOLD_95_LOW	1390.168
TUNING_TUNED_THRESHOLD_FAILED_FITS	9

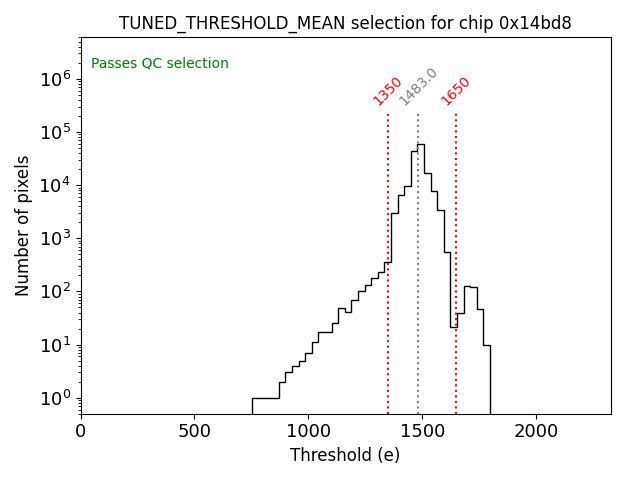

TUNING_TUNED_THRESHOLD_MEAN	1483
TUNING_TUNED_THRESHOLD_SIGMA	44
TUNING_TUNED_TOT_95_HIGH	7
TUNING_TUNED_TOT_95_LOW	7

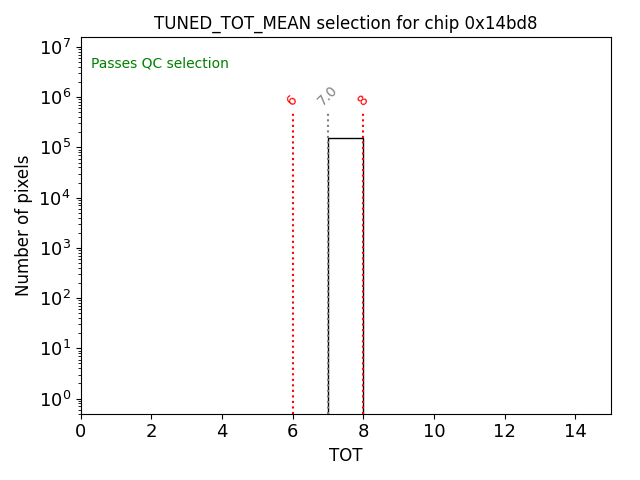

TUNING_TUNED_TOT_MEAN	7
TUNING_TUNED_TOT_SIGMA	0
TUNING_UNTUNED_NOISE_95_HIGH	60.344
TUNING_UNTUNED_NOISE_95_LOW	26.155

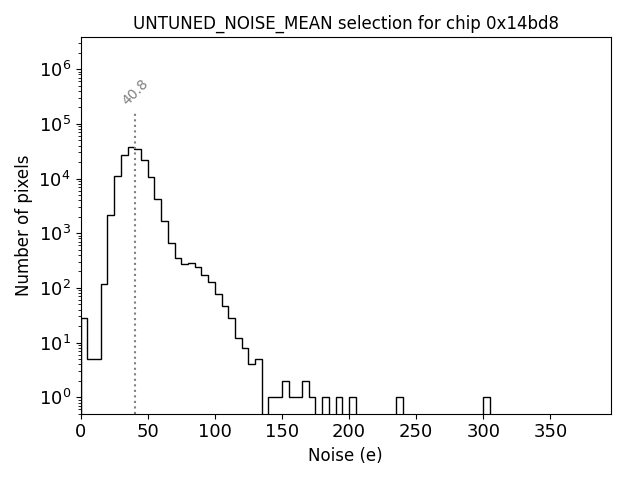

TUNING_UNTUNED_NOISE_MEAN	40.773
TUNING_UNTUNED_NOISE_SIGMA	9.382
TUNING_UNTUNED_TDAC_MEAN	0
TUNING_UNTUNED_TDAC_SIGMA	0
TUNING_UNTUNED_THRESHOLD_95_HIGH	2821.897
TUNING_UNTUNED_THRESHOLD_95_LOW	1385.123

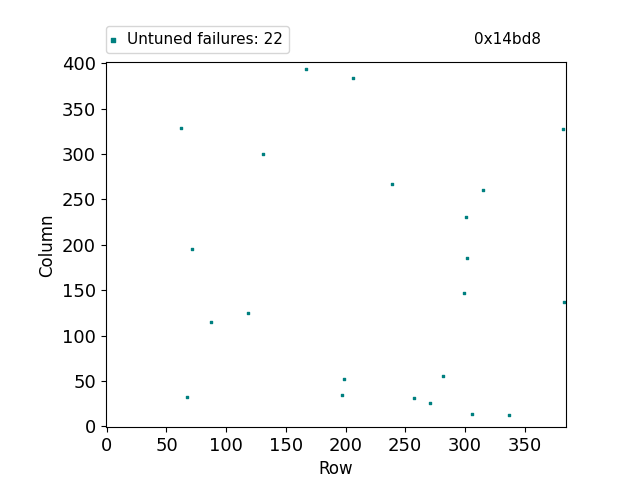

TUNING_UNTUNED_THRESHOLD_FAILED_FITS	22

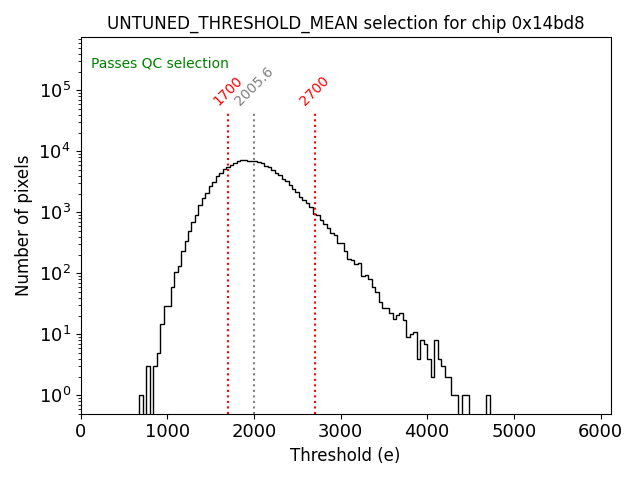

TUNING_UNTUNED_THRESHOLD_MEAN	2006
TUNING_UNTUNED_THRESHOLD_SIGMA	365

Filename	Contents
0x14bd8_MODULE/INITIAL_COLD_L2_cold.json	Download
output.log	Download
0x14bd8.log	Download
20UPGFC0084952_MODULE__INITIAL_COLD_TUNING.zip	Download

Expand ProductionDB Record

66c7470e8e33fd0043fea224

state

ready

stateTs

2024-08-22T14:11:26.220Z

stateUserIdentity

8665-7663-1

date

2024-07-24T14:49:00.000Z

testType

id	6393a09015838700361eecc5
code	TUNING
name	Tuning
state	active

institution

id	59d60ee4ed67730005160cd9
code	GL
name	Glasgow University

user

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

runNumber

66a1146c10fd774f09dcbae1

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Tuning analysis version	string	None	True	2.2.5rc1	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
TUNING_TUNED_NOISE_95_HIGH	Tuned noise 95% high	float	single	None	None	None	None	52.251	None
TUNING_TUNED_NOISE_95_LOW	Tuned noise 95% low	float	single	None	None	None	None	25.09	None
TUNING_TUNED_NOISE_MEAN	Tuned noise mean	float	single	None	None	None	None	37.648	None
TUNING_TUNED_NOISE_SIGMA	Tuned noise sigma	float	single	None	None	None	None	8.079	None
TUNING_TUNED_TDAC_MEAN	Tuned TDAC mean	float	single	None	None	None	None	2.3	None
TUNING_TUNED_TDAC_SIGMA	Tuned TDAC sigma	float	single	None	None	None	None	4.7	None
TUNING_TUNED_THRESHOLD_95_HIGH	Tuned threshold 95% high	float	single	None	None	None	None	1568.409	None
TUNING_TUNED_THRESHOLD_95_LOW	Tuned threshold 95% low	float	single	None	None	None	None	1390.168	None
TUNING_TUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the tuned threshold scan	integer	single	None	None	None	None	9	None
TUNING_TUNED_THRESHOLD_MEAN	Mean of the tuned threshold distribution	float	single	None	None	None	None	1483	None
TUNING_TUNED_THRESHOLD_SIGMA	Sigma of the tuned threshold distribution	float	single	None	None	None	None	44	None
TUNING_TUNED_TOT_95_HIGH	Tuned ToT 95% high	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_95_LOW	Tuned ToT 95% low	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_MEAN	Mean of tuned ToT distribution	float	single	None	None	None	None	7	None
TUNING_TUNED_TOT_SIGMA	Sigma of tuned ToT distribution	float	single	None	None	None	None	0	None
TUNING_UNTUNED_NOISE_95_HIGH	Untuned noise 95% high	float	single	None	None	None	None	60.344	None
TUNING_UNTUNED_NOISE_95_LOW	Noise 95% low	float	single	None	None	None	None	26.155	None
TUNING_UNTUNED_NOISE_MEAN	Untuned noise mean	float	single	None	None	None	None	40.773	None
TUNING_UNTUNED_NOISE_SIGMA	Untuned noise sigma	float	single	None	None	None	None	9.382	None
TUNING_UNTUNED_TDAC_MEAN	Untuned TDAC mean	float	single	None	None	None	None	0	None
TUNING_UNTUNED_TDAC_SIGMA	Untuned TDAC sigma	float	single	None	None	None	None	0	None
TUNING_UNTUNED_THRESHOLD_95_HIGH	Untuned threshold 95% high	float	single	None	None	None	None	2821.897	None
TUNING_UNTUNED_THRESHOLD_95_LOW	Untuned threshold 95% low	float	single	None	None	None	None	1385.123	None
TUNING_UNTUNED_THRESHOLD_FAILED_FITS	Number of failed fits from the untuned threshold scan	integer	single	None	None	None	None	22	None
TUNING_UNTUNED_THRESHOLD_MEAN	Mean of the untuned threshold distribution	float	single	None	None	None	None	2006	None
TUNING_UNTUNED_THRESHOLD_SIGMA	Sigma of the untuned threshold distribution	float	single	None	None	None	None	365	None

cts

2024-08-22T14:11:26.220Z

sys

cts	2024-08-22T14:11:26.220Z
mts	2024-08-22T14:11:34.941Z
rev	2

defects

comments

None

attachments

code

dateTime

title

description

contentType

type

url

urlCernbox

filename

user

68834d45b344cd4f254680642ffc418b

2024-08-22T14:11:31.095Z

0x14bd8_MODULE/INITIAL_COLD_L2_cold.json

{"_id":"669e4bb1337eb791fefb753c","serialNumber":"20UPGFC0084952","stage":"MODULE/INITIAL_COLD","branch":"cold","current_revision_id":"669e872bc99bc27a8dc39be3"}

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/8/8/68834d45b344cd4f254680642ffc418b?authz=zteos64:MDAwMDAyYmV4nO2QvUvDUBTFaUELnURwqQ4XUeiSj5c0L8kFwcnB0UUkBHzpe2lD27yQvC79D7q5Kbg66eIu7qKjBcWhi6MuDo6iaXFwcHT0DpfD4dzLj1O_qdYr-dL09eN6sbGQqF7G16ujrFmxbEPIwmCqz753W-RpJ5fDjCdFz-BCaWXcyHLJNR4Z1PAMb3fDdGzPE5xpccvlGiEi1jybcY21otgkrk9dy9-bVIJ9wWFHRGBRsAiaDs6EaTkhDBOOpEWoR4I5TgidmWObbjDKQlAJF6nCXEqlE4dS6ptoOT7dDhDjctAhOiFU9z2dmCGkbCBw_gd4ilDSKuzlkQMsyxC6slD4-yGXA5ak-MPpCFmCEhuKIS8VqJy1BYJMI9Fl_RiXYXw4rm1NNi_il9rbbXz5tHr3uHbyMD09X_lsnr0fHDf-y_6rsuHq-f6o9gWUft35

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/8/8/68834d45b344cd4f254680642ffc418b

68834d45b344cd4f254680642ffc418b

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

c4dd1c6f9346b44fc25aeff6604eb81c

2024-08-22T14:11:34.941Z

TestRun_66c7470e8e33fd0043fea224_Attachment_Pack.zip

/home/rd53a/localdb-tools/viewer/static/cache/thumbnail/TestRun_66c7470e8e33fd0043fea224_Attachment_Pack.zip

None

eos

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/c/4/d/c4dd1c6f9346b44fc25aeff6604eb81c?authz=zteos64:MDAwMDAyYmR4nO2QP0vDUBTFaaEOxUG6CJ0uKuiSPy9_XpI7uejQwUGQDiHgS95LGtrmheR16era0aWTX8HB1d1dEVz8ANIPYAfBWBwcHB09w-VwuPfy43Qf2t1WtfO6-rjf6ndyNS75XnteHrUs2xCyNpiasO-ZiKrIKjkreV6PDS6U1qwbZSW5xmMjMRyDDw5M16dmIqiWOh7XCBGpxoIg0ZgTpybxAupZwflTKxwKDqciBouCRdB00fLAMi03glnOkTiE-iTc4ESQfSW26YXzMgKVc1EorKRUOnEp9TwHHTvwj0PEtBG6RCeE6oGvEzOCgk0Fbv4ALxAaWoXjKnaBlSXCSNYKfz_kcsryAn8kmZANKLGhnvHGgapYIhBkEYsRm6TYg-HldHHdwX3cPnu7uhuMVhe99e7ty3rZOTxZOov3_n_Zf1U23Dw_ik_c-9q9

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/c/4/d/c4dd1c6f9346b44fc25aeff6604eb81c

c4dd1c6f9346b44fc25aeff6604eb81c

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

6222073d80e95c000a45ebe0

d276c3780b268e22329d285cb5094088

ready

2022-03-04T12:34:05.589Z

9198-3887-1

False

None

False

None

20UPGFC0084952

None

parent

component

63d148b89eb28800363f20ed

code

5f7632852f764a8528f722d588a758f4

state

ready

stateTs

2023-01-25T15:20:24.514Z

stateUserIdentity

4709-4605-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB42000066

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/ASSEMBLY
name	Bare module to module PCB assembly

highestLevelParent

component

6671723c01875b0034ea8cbc

code

0176f303092bace75fbb36e03b14b533

state

ready

stateTs

2024-06-18T11:40:44.945Z

stateUserIdentity

24-7185-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM22210906

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/ASSEMBLY
name	Bare module to module PCB assembly

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V11
name	ITkpix_V1.1

code	name	dataType	required	default	value
WAFERSN	Wafer serial number	string	False	False	20UPGFW0000331

code	MODULE/INITIAL_COLD
name	Initial Cold
order	10
initial	False
final	False

code	BONN
name	University of Bonn

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	Registered	Registered
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	Registered	Registered
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
6762f0…5952cf	MODULE/FINAL_COLD	DATA_TRANSMISSION	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
676308…5954ad	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	12 months ago	No tags	Selected
6762f9…59540c	MODULE/FINAL_COLD	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	12 months ago	No tags	Selected
6762f0…595297	MODULE/FINAL_COLD	LP_MODE	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762ef…59525f	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762ef…595204	MODULE/FINAL_COLD	VCAL_CALIBRATION	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762ec…5951a6	MODULE/FINAL_COLD	SLDO	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762e8…595137	MODULE/FINAL_COLD	ANALOG_READBACK	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762dc…59508d	MODULE/FINAL_COLD	ADC_CALIBRATION	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762be…594c72	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762bf…594caa	MODULE/FINAL_WARM	LP_MODE	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762cf…594dbb	MODULE/FINAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	12 months ago	No tags	Selected
6762cf…594ebb	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	12 months ago	No tags	Selected
6762cd…594d1d	MODULE/FINAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	12 months ago	No tags	Selected
6762bf…594ce2	MODULE/FINAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762bd…594c18	MODULE/FINAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762ba…594bba	MODULE/FINAL_WARM	SLDO	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762b6…594b4c	MODULE/FINAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762aa…594a9c	MODULE/FINAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	12 months ago	12 months ago	No tags	Selected
6762a4…594901	MODULE/LONG_TERM_STABILITY_TEST	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	12 months ago	No tags	Selected
6762a3…59488d	MODULE/LONG_TERM_STABILITY_TEST	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	12 months ago	No tags	Selected
676197…592b0d	MODULE/THERMAL_CYCLES	PIXEL_FAILURE_ANALYSIS	KennethWraight	N/A	a year ago	No tags	Selected
676197…592a99	MODULE/THERMAL_CYCLES	MIN_HEALTH_TEST	KennethWraight	N/A	a year ago	No tags	Selected
67603c…59252b	MODULE/POST_PARYLENE_COLD	INJECTION_CAPACITANCE	KennethWraight	a year ago	a year ago	No tags	Selected
676056…59277c	MODULE/POST_PARYLENE_COLD	PIXEL_FAILURE_ANALYSIS	KennethWraight	N/A	a year ago	No tags	Selected
676056…592860	MODULE/POST_PARYLENE_COLD	TUNING	KennethWraight	N/A	a year ago	No tags	Selected
676054…59270f	MODULE/POST_PARYLENE_COLD	MIN_HEALTH_TEST	KennethWraight	N/A	a year ago	No tags	Selected
676039…592481	MODULE/POST_PARYLENE_COLD	SLDO	KennethWraight	a year ago	a year ago	No tags	Selected
67603d…592593	MODULE/POST_PARYLENE_COLD	DATA_TRANSMISSION	KennethWraight	a year ago	a year ago	No tags	Selected
67603d…592563	MODULE/POST_PARYLENE_COLD	LP_MODE	KennethWraight	a year ago	a year ago	No tags	Selected
67603c…5924d8	MODULE/POST_PARYLENE_COLD	VCAL_CALIBRATION	KennethWraight	a year ago	a year ago	No tags	Selected
676035…592416	MODULE/POST_PARYLENE_COLD	ANALOG_READBACK	KennethWraight	a year ago	a year ago	No tags	Selected
676029…592385	MODULE/POST_PARYLENE_COLD	ADC_CALIBRATION	KennethWraight	a year ago	a year ago	No tags	Selected
67239a…665818	MODULE/POST_PARYLENE_WARM	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
672b75…25df18	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
672b75…25df84	MODULE/POST_PARYLENE_WARM	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6724ad…6658b9	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
672399…6657ee	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6723a5…665842	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
672399…6657b0	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6723ae…665877	MODULE/POST_PARYLENE_WARM	SLDO	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
67238e…665721	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
672382…6656cb	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5c…fb7023	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5f…fb70b5	MODULE/INITIAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5f…fb708f	MODULE/INITIAL_WARM	UNDERSHUNT_PROTECTION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5e…fb706f	MODULE/INITIAL_WARM	OVERVOLTAGE_PROTECTION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5d…fb704d	MODULE/INITIAL_WARM	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a59…fb6fa5	MODULE/INITIAL_WARM	SLDO	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a48…fb6eca	MODULE/INITIAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
622208…461209	TESTONWAFER	FECHIP_TEST	MarkStandke	N/A	a year ago	No tags	Selected
669e6a…fb775c	MODULE/INITIAL_COLD	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e6a…fb7732	MODULE/INITIAL_COLD	UNDERSHUNT_PROTECTION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669fad…fb77f0	MODULE/INITIAL_COLD	OVERVOLTAGE_PROTECTION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e67…fb7702	MODULE/INITIAL_COLD	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
66a114…dcbb20	MODULE/INITIAL_COLD	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
66a112…dcb958	MODULE/INITIAL_COLD	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
66a114…dcbae1	MODULE/INITIAL_COLD	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
669e60…fb76cc	MODULE/INITIAL_COLD	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e60…fb768e	MODULE/INITIAL_COLD	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e5d…fb764c	MODULE/INITIAL_COLD	SLDO	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e55…fb75f9	MODULE/INITIAL_COLD	ANALOG_READBACK	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e4c…fb7569	MODULE/INITIAL_COLD	ADC_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e4a…fb7453	MODULE/INITIAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
669e48…fb73d6	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
669a5b…fb6fe5	MODULE/INITIAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a50…fb6f46	MODULE/INITIAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e42…fb7269	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0084952

MODULE/FINAL_METROLOGY

Component Information

Wafer

Properties

Comments

Test: TUNING QC Passed

(Stage: MODULE/INITIAL_COLD)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

ProductionDB Record

Current Stage: Final flatness measurement

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
