20UPGFC0084951

MODULE/FINAL_METROLOGY

Component Information

Serial Number	20UPGFC0084951
ProdDB ID	c0ee9d…266dca
LocalDB ID	6222073c80e95c000a45ebdd
Component Type	fe_chip
Parents	20UPGM22210906 20UPGB42000066
Children	No match.
Flags

Wafer

Wafer Probing

Properties

Item	Value
Wafer serial number	20UPGFW0000331

Comments

Test: ANALOG_READBACK QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Key	Data
QC Passed	True
Date	a year ago
component ObjectId	6222073c80e95c000a45ebdd
Stage	MODULE/FINAL_WARM
Test Type	ANALOG_READBACK
Institute ObjectId
User Name	Md ArifAbdullaSamy
ObjectId of this record	6762b685888e9d75d4594af4
ObjectId of RAW record	6762b67c888e9d75d4594ad1
Tags	No tags

Results

Key	Data
ANALYSIS_VERSION	mqat v2.2.9
MEASUREMENT_DATE	2024-12-18T10:58:12.000+00:00
YARR_VERSION	v1.5.2
AR_NOMINAL_SETTINGS	[4e-06, 8.93e-05, 4.86e-05, 4.2e-06, 3.96e-05, 1.99e-05, 0, 3.97e-05, 7.59e-05, -999, 0, 0, 4.87e-05, 6.53e-05, 5.18e-05, 8.87e-05, 7.49e-05, 8.43e-05, 8.76e-05, 8.87e-05, 6.64e-05, 4.54e-05, 4.52e-05, 6.58e-05, 4.51e-05, 4.66e-05, -999, -999, 0.5931717, 0.0362319, 0.8583855, 0.1933782, 0.837, -999, -999, 0.837, 1.1946845, 0.1537359, 0.3238779, 0.1723856, 0.0414826, 0.0413089, 0.177858, 0.2124088, 0.2095506, 0.638517, -999, 0.6368166, -999, 0.6395078, -999, -999, -999, -999, -999, -999, -999, -999, -999, -999, -999, -999, 0.0157156, 0.472, 1.988, 1.4991487, 1.203089, 0.592852, 1.0039037, 1.5141059, 1.2101086, 0.5986229]

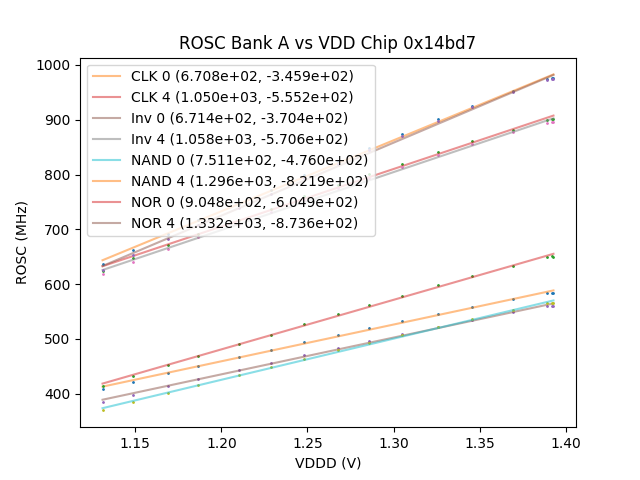

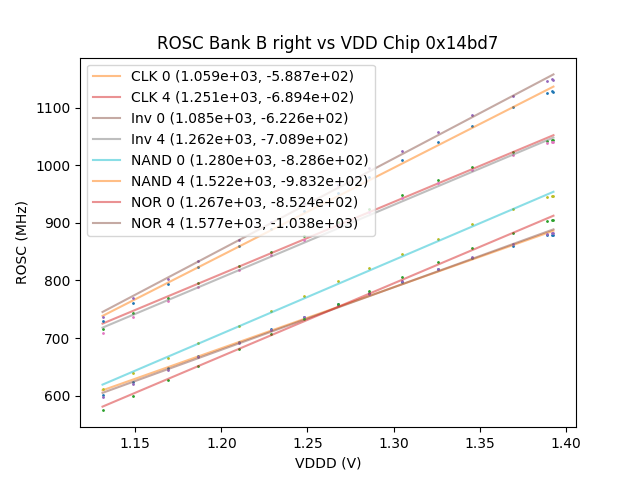

AR_ROSC_MAX_RESIDUAL	[2.7728982071981685, 4.4781245547143484, 2.7199061740018684, 4.458171866452792, 2.492264326207525, 4.273451474610048, 2.907653399102126, 4.563757671296858, 4.389879941238541, 4.367275668738252, 5.214084505977975, 5.183842757062233, 4.3128045538966155, 4.30692768391047, 5.0752395139919955, 5.166040949898555, 4.2887191141712675, 4.290789819128651, 5.0184433859334385, 5.037934035981902, 4.307841552786202, 4.221796566148742, 5.32851411316262, 5.333591064189071, 2.907392844900566, 2.8369719057917355, 3.383934572795702, 3.3270930864499504, 3.5527673612844555, 3.54905024474188, 5.020789777171647, 5.4364896545089545, 4.43237952995416, 4.83284409251203, 4.845035707726186, 4.895058993515445, 4.991684383024414, 4.934975115587456, 4.921434603859674, 4.880325240732296, 4.893118247921895, 4.887749439603669]
AR_ROSC_OFFSET	[-345.85211951270503, -555.1785859710346, -370.395494479184, -570.6464126674102, -475.99134116873705, -821.9050389068827, -604.9162388656796, -873.6066356612612, -581.5424933393092, -588.7139086654075, -689.9938046616687, -689.431526271427, -614.3512762425643, -622.6333554478989, -721.7144204243355, -708.8752134192001, -818.0707023429023, -828.5775855257358, -984.9002809323969, -983.1806825746643, -848.2383378479472, -852.3775308670778, -1045.4422417849914, -1038.0945751943113, -473.74690509932765, -471.09292027216696, -583.0724325109212, -581.2723384335525, -572.4486753217922, -564.8229384001494, -424.82839207336593, -435.34932813026296, -512.2273668119766, -547.6369281880114, -947.1007246836625, -946.939974841685, -947.3756120891051, -948.8186714421795, -947.3231339329188, -950.2524793052249, -943.6743922335293, -949.5740531453578]

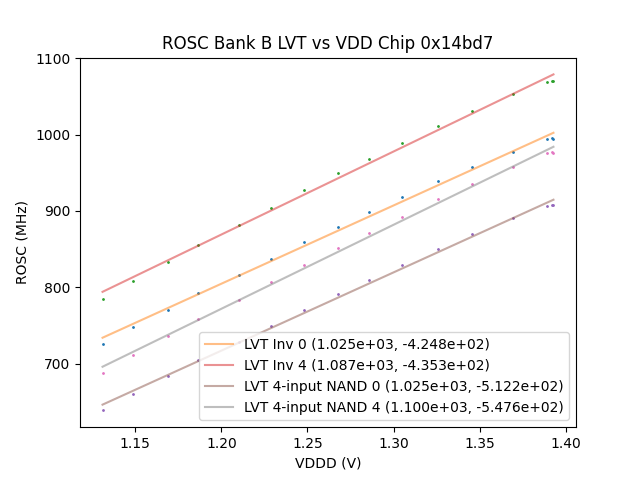

AR_ROSC_SLOPE	[670.8292173049476, 1050.2298911824867, 671.4223079799383, 1057.7638605386014, 751.1286061175837, 1295.7063985128568, 904.8111435202454, 1332.1270289970907, 1058.9244124772708, 1059.1128249398114, 1248.8998555131334, 1250.6145792728587, 1079.279619079235, 1085.1983792692458, 1262.94079010604, 1261.6108316673185, 1277.7975508923114, 1279.934223440314, 1525.5402673269796, 1522.1559055755558, 1272.8199807008782, 1267.1906246293347, 1573.14380663675, 1576.7920467200272, 786.6828159527189, 782.1180495732035, 956.5120258495939, 948.5017463075993, 947.4158544152034, 946.8221365584351, 1024.6825630438113, 1087.0909918552543, 1024.5298086414277, 1099.6984154714805, 1463.6323115987775, 1465.3457829237418, 1469.2761461633136, 1467.6823595307103, 1467.544305110536, 1468.6238677684735, 1459.4751694580825, 1461.6682014925873]
AR_TEMP_ACB	20.188
AR_TEMP_ASLDO	21.283
AR_TEMP_DSLDO	21.859
AR_TEMP_EXT	19.3
AR_TEMP_NF_ACB	1.285
AR_TEMP_NF_ASLDO	1.287
AR_TEMP_NF_BOTTOM	-999
AR_TEMP_NF_DSLDO	1.288
AR_TEMP_NF_TOP	-999
AR_TEMP_NTC	19.07
AR_TEMP_POLY_BOTTOM	-999
AR_TEMP_POLY_TOP	-999

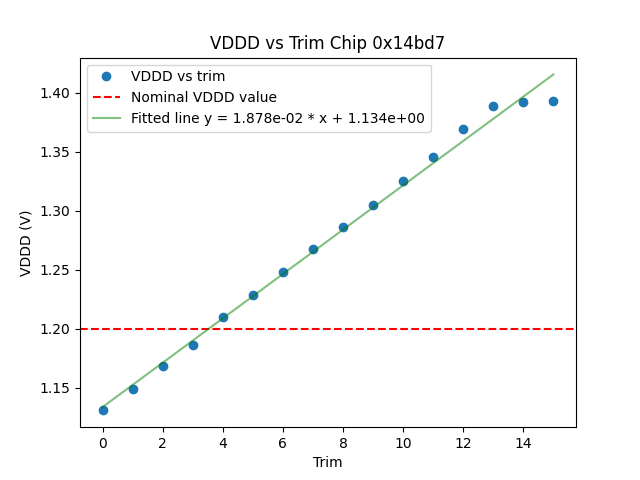

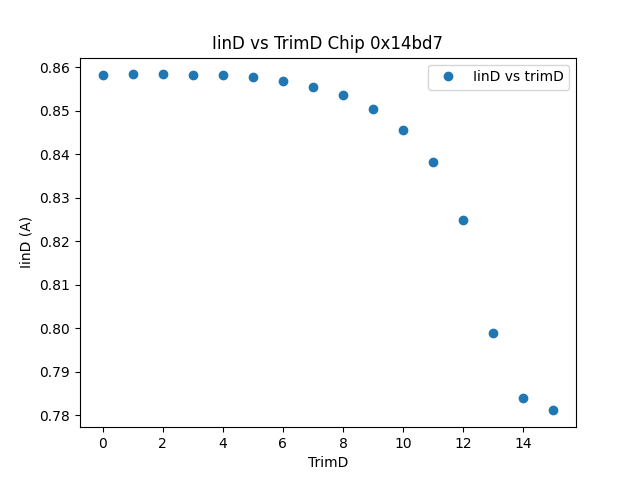

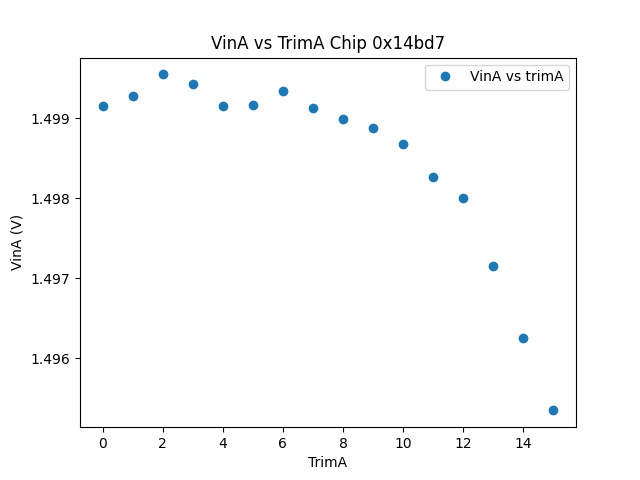

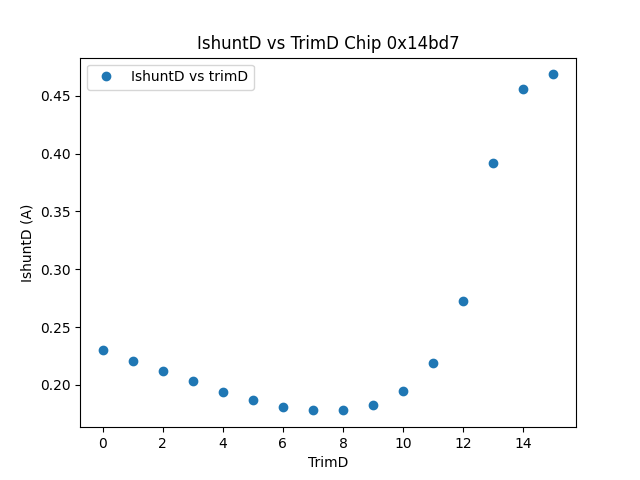

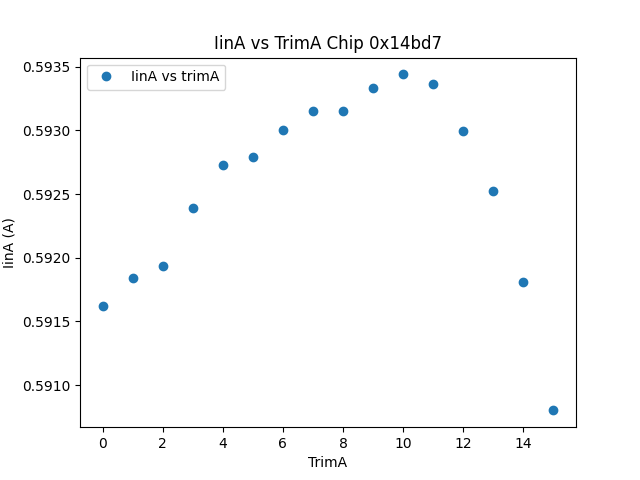

AR_VDDA_VS_TRIM	[1.074, 1.091, 1.11, 1.128, 1.147, 1.165, 1.184, 1.202, 1.221, 1.239, 1.257, 1.276, 1.294, 1.313, 1.331, 1.349]

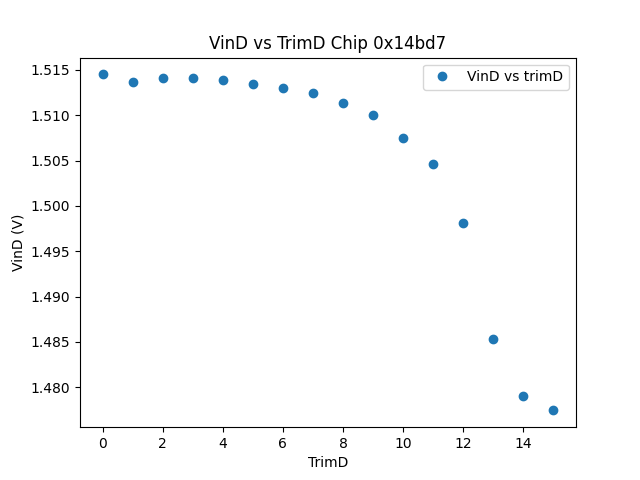

AR_VDDD_VS_TRIM	[1.131, 1.149, 1.169, 1.187, 1.21, 1.229, 1.248, 1.268, 1.286, 1.305, 1.326, 1.345, 1.369, 1.389, 1.392, 1.393]

Attachments

Filename	Contents
output.log	Download
0x14bd7.log	Download

RAW Results Record

Download RAW

_id

6762b67c888e9d75d4594ad1

raw

serialNumber

testType

subtestType

results

stage

component

dbVersion

address

sys

20UPGFC0084951

ANALOG_READBACK

AR_VMEAS

property

YARR_VERSION	v1.5.2
ANALOG_READBACK_MEASUREMENT_VERSION	2.2.7

comment

Measurements

Vmux0

X	False
Unit	V
Values	0.852479756

Vmux3

X	False
Unit	V
Values	0.434258312

Vmux4

X	False
Unit	V
Values	0.613057852

Vmux5

X	False
Unit	V
Values	0.169451475

Vmux6

X	False
Unit	V
Values	0.3395935

Vmux7

X	False
Unit	V
Values	0.188101158

Vmux8

X	False
Unit	V
Values	0.0571981892

Vmux9

X	False
Unit	V
Values	0.0570244975

Vmux10

X	False
Unit	V
Values	0.193573639

Vmux11

X	False
Unit	V
Values	0.228124395

Vmux12

X	False
Unit	V
Values	0.225266248

Vmux13

X	False
Unit	V
Values	0.654232621

Vmux15

X	False
Unit	V
Values	0.65253216

Vmux17

X	False
Unit	V
Values	0.65522337

Vmux31

X	False
Unit	V
Values	0.487324357

Vmux32

X	False
Unit	V
Values	0.612672985

Vmux33

X	False
Unit	V
Values	0.390502781

Vmux34

X	False
Unit	V
Values	0.617260098

Vmux35

X	False
Unit	V
Values	0.608567595

Vmux36

X	False
Unit	V
Values	0.266691536

Vmux37

X	False
Unit	V
Values	0.394242078

Vmux38

X	False
Unit	V
Values	0.620769918

Vmux39

X	False
Unit	V
Values	0.614338458

Vmux63

X	False
Unit	V
Values	0.533532381

Vmux30

X	False
Unit	V
Values	0.0157156046

Imux0

X	False
Unit	V
Values	0.0531171151

Imux1

X	False
Unit	V
Values	0.906887054

Imux2

X	False
Unit	V
Values	0.49946031

Imux3

X	False
Unit	V
Values	0.0558223538

Imux4

X	False
Unit	V
Values	0.409966201

Imux5

X	False
Unit	V
Values	0.212865904

Imux6

X	False
Unit	V
Values	0.0136285396

Imux7

X	False
Unit	V
Values	0.410177022

Imux8

X	False
Unit	V
Values	0.772865236

Imux10

X	False
Unit	V
Values	0.013633389

Imux11

X	False
Unit	V
Values	0.0136273112

Imux12

X	False
Unit	V
Values	0.500736892

Imux13

X	False
Unit	V
Values	0.666128516

Imux14

X	False
Unit	V
Values	0.531731367

Imux15

X	False
Unit	V
Values	0.900529563

Imux16

X	False
Unit	V
Values	0.762732685

Imux17

X	False
Unit	V
Values	0.856261075

Imux18

X	False
Unit	V
Values	0.88913995

Imux19

X	False
Unit	V
Values	0.44906801

Imux20

X	False
Unit	V
Values	0.678087413

Imux21

X	False
Unit	V
Values	0.46785292

Imux22

X	False
Unit	V
Values	0.465959489

Imux23

X	False
Unit	V
Values	0.671991408

Imux24

X	False
Unit	V
Values	0.464865386

Imux25

X	False
Unit	V
Values	0.479692996

Imux28

X	False
Unit	V
Values	0.294108689

Imux29

X	False
Unit	V
Values	0.0274550617

Imux30

X	False
Unit	V
Values	0.412421525

Imux31

X	False
Unit	V
Values	0.0861826316

Imux63

X	False
Unit	V
Values	0.0136169642

Metadata

FirmwareVersion

FirmwareIdentifier

ChannelConfig

SoftwareVersion

ChipConfigs

RD53B

GlobalConfig

AiRegionRow	0
AuroraActiveLanes	1
AuroraCBSend	0
AuroraCBWait0	4095
AuroraCBWait1	0
AuroraCCSend	3
AuroraCCWait	25
AuroraEnPrbs	0
AuroraInitWait	32
AutoRead0	137
AutoRead1	133
AutoRead2	121
AutoRead3	122
AutoRead4	124
AutoRead5	127
AutoRead6	126
AutoRead7	125
BcidCnt	0
BitFlipErrCnt	0
BitFlipWngCnt	0
CapMeasEn	0
CapMeasEnPar	0
CdrClkSel	0
CdrCp	40
CdrCpBuff	200
CdrCpFd	400
CdrOverwriteLimit	0
CdrPhaseDetSel	0
CdrVco	1023
CdrVcoBuff	500
ChSyncLockThr	31
CmdErrCnt	0
CmlBias0	800
CmlBias1	400
CmlBias2	0
DataEnBcid	0
DataEnBinaryRo	0
DataEnEos	1
DataEnHitRemoval	0
DataEnIsoHitRemoval	0
DataEnL1id	0
DataEnRaw	0
DataMaxHits	0
DataMaxTot	0
DataMergeEn	0
DataMergeEnBond	0
DataMergeEnClkGate	0
DataMergeInMux0	0
DataMergeInMux1	1
DataMergeInMux2	2
DataMergeInMux3	3
DataMergeInPol	0
DataMergeOutMux0	2
DataMergeOutMux1	3
DataMergeOutMux2	0
DataMergeOutMux3	1
DataMergeSelClk	0
DataReadDelay	0
DiffComp	500
DiffFbCapEn	0
DiffLcc	100
DiffLccEn	0
DiffPreComp	350
DiffPreampL	550
DiffPreampM	550
DiffPreampR	550
DiffPreampT	550
DiffPreampTL	550
DiffPreampTR	550
DiffTh1L	309
DiffTh1M	242
DiffTh1R	309
DiffTh2	50
DiffVff	60
EfuseConfig	3855
EfuseReadData0	55044
EfuseReadData1	4427
EfuseWriteData0	0
EfuseWriteData1	0
EnChipId	0
EnCoreCol0	65535
EnCoreCol1	65535
EnCoreCol2	65535
EnCoreCol3	63
EnCoreColCal0	0
EnCoreColCal1	0
EnCoreColCal2	0
EnCoreColCal3	0
ErrWngMask	0
EvenMask	0
FineDelayClk	0
FineDelayData	0
GcrDefaultConfig	44149
GcrDefaultConfigB	21386
GlobalPulseConf	0
GlobalPulseWidth	10
GpCmosDs	0
GpCmosEn	1
GpCmosRoute	34
GpLvdsBias	7
GpLvdsEn	15
GpLvdsPad0	0
GpLvdsPad1	1
GpLvdsPad2	33
GpLvdsPad3	35
GpValReg	5
HitOrCnt0	0
HitOrCnt1	0
HitOrCnt2	0
HitOrCnt3	0
HitOrMask0	0
HitOrMask1	0
HitOrMask2	0
HitOrMask3	0
InjAnaMode	0
InjDigEn	0
InjFineDelay	5
InjVcalHigh	851
InjVcalMed	200
InjVcalRange	1
Latency	500
LinComp	110
LinCompTa	110
LinFc	20
LinGdacL	408
LinGdacM	408
LinGdacR	408
LinKrumCurr	50
LinLdac	100
LinPreampL	300
LinPreampM	300
LinPreampR	300
LinPreampT	300
LinPreampTL	300
LinPreampTR	300
LinRefKrum	300
LockLossCnt	0
MonAdcTrim	0
MonSensAcbDem	0
MonSensAcbEn	0
MonSensAcbSelBias	0
MonSensSldoAnaDem	0
MonSensSldoAnaEn	0
MonSensSldoAnaSelBias	0
MonSensSldoDigDem	0
MonSensSldoDigEn	0
MonSensSldoDigSelBias	0
MonitorEnable	1
MonitorI	63
MonitorV	32
MonitoringDataAdc	0
NtcDac	100
NumOfEventsInStream	1
OddMask	0
PixAutoRow	1
PixBroadcast	0
PixConfMode	1
PixDefaultConfig	40162
PixDefaultConfigB	25373
PixPortal	44445
PixRegionCol	199
PixRegionRow	0
PtotCoreColEn0	0
PtotCoreColEn1	0
PtotCoreColEn2	0
PtotCoreColEn3	0
RdWrFifoErrCnt	0
ReadTrigCnt	0
ReadTrigLatency	1000
RingOscAClear	0
RingOscAEn	0
RingOscAOut	0
RingOscARoute	0
RingOscBClear	0
RingOscBEnBl	0
RingOscBEnBr	0
RingOscBEnCapA	0
RingOscBEnFf	0
RingOscBEnLvt	0
RingOscBOut	0
RingOscBRoute	0
RstCoreCol0	0
RstCoreCol1	0
RstCoreCol2	0
RstCoreCol3	0
SelfTrigDelay	512
SelfTrigDigThr	1
SelfTrigDigThrEn	0
SelfTrigEn	0
SelfTrigMulti	4
SelfTrigPattern	65534
SerEnLane	4
SerEnTap	1
SerInvTap	1
SerSelOut0	1
SerSelOut1	1
SerSelOut2	1
SerSelOut3	1
ServiceBlockEn	1
ServiceBlockPeriod	50
SkippedTrigCnt	0
SldoEnUndershuntA	0
SldoEnUndershuntD	0
SldoTrimA	7
SldoTrimD	4
TotEn6b4b	0
TotEn80	0
TotEnPtoa	0
TotEnPtot	0
TotPtotLatency	500
TrigCnt	0
TruncTimeoutConf	0
TwoLevelTrig	0
VrefIn	1
VrefRsensBot	0
VrefRsensTop	0

Parameter

ADCcalPar	8.0 0.193 10000.0
ChipId	12
EnforceNameIdCheck	True
InjCap	7.38
IrefTrim	11
KSenseInA	21147.564
KSenseInD	21523.963
KSenseShuntA	26182.7
KSenseShuntD	26648.717
KShuntA	1063.279
KShuntD	1067.81
Name	0x14bd7
NfACB	1.2850404
NfASLDO	1.2873867
NfDSLDO	1.287916
NtcCalPar	0.0007489 0.0002769 7.0595e-08
VcalPar	-0.0 0.2

SoftwareType

ChipID

Name

0x14bd7

Institution

ModuleSN

20UPGM22210906

TimeStart

1734519492

TimeEnd

1734519933

useCalibAdc

False

MODULE/FINAL_WARM

6222073c80e95c000a45ebdd

1.01

64657cef8d79bac1f3f00550

mts	2024-12-18 11:48:12.616000
cts	2024-12-18 11:48:12.616000
rev	0

20UPGFC0084951

ANALOG_READBACK

AR_TEMP

property

YARR_VERSION	v1.5.2
ANALOG_READBACK_MEASUREMENT_VERSION	2.2.7

comment

Measurements

Vmux2

X	False
Unit	V
Values	0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647 0.149614647

Vmux30

X	False
Unit	V
Values	0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538 0.0157138538

Imux9

X	False
Unit	V
Values	0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859 0.120089859

Imux63

X	False
Unit	V
Values	0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485 0.0136118485

Vmux14

X	False
Unit	V
Values	0.225711003 0.225286558 0.225613222 0.225523904 0.225818962 0.224423856 0.224126026 0.225079104 0.226221383 0.225357547 0.225321963 0.224600822 0.224818647 0.225849018 0.225439891 0.225540712 0.313725084 0.313774824 0.313724369 0.313741118 0.313690424 0.313750416 0.313793868 0.313740045 0.313710898 0.313760996 0.313752949 0.313827634 0.313821584 0.313797534 0.313810766 0.313756585

Vmux16

X	False
Unit	V
Values	0.22384572 0.224611208 0.225260437 0.225181609 0.224482358 0.226330996 0.223984122 0.225002095 0.225070029 0.223735645 0.224668145 0.224234477 0.224024951 0.224225342 0.224533543 0.22388716 0.313292265 0.313279539 0.313201845 0.313187033 0.313263029 0.313151747 0.313246816 0.31318152 0.313237518 0.313318908 0.313224077 0.31325689 0.313269734 0.313259214 0.313223898 0.313281149

Vmux18

X	False
Unit	V
Values	0.23009257 0.231301978 0.230494872 0.230542108 0.230735511 0.230650574 0.2298996 0.230107859 0.230446324 0.231135309 0.23019278 0.230171859 0.23065336 0.230966255 0.231034458 0.230034739 0.318531662 0.318402916 0.318510354 0.318555683 0.318504333 0.318492442 0.318557262 0.318591505 0.318534106 0.318508804 0.318534076 0.318510205 0.318477541 0.318446875 0.318430573 0.318484187

MonSensSldoAnaSelBias

X	False
Unit	-
Values	0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

MonSensSldoDigSelBias

X	False
Unit	-
Values	0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

MonSensAcbSelBias

X	False
Unit	-
Values	0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

MonSensSldoAnaDem

X	False
Unit	-
Values	0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

MonSensSldoDigDem

X	False
Unit	-
Values	0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

MonSensAcbDem

X	False
Unit	-
Values	0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

TExtExtNTC

X	False
Unit	C
Values	19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3 19.3

Metadata

FirmwareVersion

FirmwareIdentifier

ChannelConfig

SoftwareVersion

ChipConfigs

RD53B

GlobalConfig

AiRegionRow	0
AuroraActiveLanes	1
AuroraCBSend	0
AuroraCBWait0	4095
AuroraCBWait1	0
AuroraCCSend	3
AuroraCCWait	25
AuroraEnPrbs	0
AuroraInitWait	32
AutoRead0	137
AutoRead1	133
AutoRead2	121
AutoRead3	122
AutoRead4	124
AutoRead5	127
AutoRead6	126
AutoRead7	125
BcidCnt	0
BitFlipErrCnt	0
BitFlipWngCnt	0
CapMeasEn	0
CapMeasEnPar	0
CdrClkSel	0
CdrCp	40
CdrCpBuff	200
CdrCpFd	400
CdrOverwriteLimit	0
CdrPhaseDetSel	0
CdrVco	1023
CdrVcoBuff	500
ChSyncLockThr	31
CmdErrCnt	0
CmlBias0	800
CmlBias1	400
CmlBias2	0
DataEnBcid	0
DataEnBinaryRo	0
DataEnEos	1
DataEnHitRemoval	0
DataEnIsoHitRemoval	0
DataEnL1id	0
DataEnRaw	0
DataMaxHits	0
DataMaxTot	0
DataMergeEn	0
DataMergeEnBond	0
DataMergeEnClkGate	0
DataMergeInMux0	0
DataMergeInMux1	1
DataMergeInMux2	2
DataMergeInMux3	3
DataMergeInPol	0
DataMergeOutMux0	2
DataMergeOutMux1	3
DataMergeOutMux2	0
DataMergeOutMux3	1
DataMergeSelClk	0
DataReadDelay	0
DiffComp	500
DiffFbCapEn	0
DiffLcc	100
DiffLccEn	0
DiffPreComp	350
DiffPreampL	550
DiffPreampM	550
DiffPreampR	550
DiffPreampT	550
DiffPreampTL	550
DiffPreampTR	550
DiffTh1L	309
DiffTh1M	242
DiffTh1R	309
DiffTh2	50
DiffVff	60
EfuseConfig	3855
EfuseReadData0	55044
EfuseReadData1	4427
EfuseWriteData0	0
EfuseWriteData1	0
EnChipId	0
EnCoreCol0	65535
EnCoreCol1	65535
EnCoreCol2	65535
EnCoreCol3	63
EnCoreColCal0	0
EnCoreColCal1	0
EnCoreColCal2	0
EnCoreColCal3	0
ErrWngMask	0
EvenMask	0
FineDelayClk	0
FineDelayData	0
GcrDefaultConfig	44149
GcrDefaultConfigB	21386
GlobalPulseConf	0
GlobalPulseWidth	10
GpCmosDs	0
GpCmosEn	1
GpCmosRoute	34
GpLvdsBias	7
GpLvdsEn	15
GpLvdsPad0	0
GpLvdsPad1	1
GpLvdsPad2	33
GpLvdsPad3	35
GpValReg	5
HitOrCnt0	0
HitOrCnt1	0
HitOrCnt2	0
HitOrCnt3	0
HitOrMask0	0
HitOrMask1	0
HitOrMask2	0
HitOrMask3	0
InjAnaMode	0
InjDigEn	0
InjFineDelay	5
InjVcalHigh	851
InjVcalMed	200
InjVcalRange	1
Latency	500
LinComp	110
LinCompTa	110
LinFc	20
LinGdacL	408
LinGdacM	408
LinGdacR	408
LinKrumCurr	50
LinLdac	100
LinPreampL	300
LinPreampM	300
LinPreampR	300
LinPreampT	300
LinPreampTL	300
LinPreampTR	300
LinRefKrum	300
LockLossCnt	0
MonAdcTrim	0
MonSensAcbDem	0
MonSensAcbEn	0
MonSensAcbSelBias	0
MonSensSldoAnaDem	0
MonSensSldoAnaEn	0
MonSensSldoAnaSelBias	0
MonSensSldoDigDem	0
MonSensSldoDigEn	0
MonSensSldoDigSelBias	0
MonitorEnable	1
MonitorI	63
MonitorV	32
MonitoringDataAdc	0
NtcDac	100
NumOfEventsInStream	1
OddMask	0
PixAutoRow	1
PixBroadcast	0
PixConfMode	1
PixDefaultConfig	40162
PixDefaultConfigB	25373
PixPortal	44445
PixRegionCol	199
PixRegionRow	0
PtotCoreColEn0	0
PtotCoreColEn1	0
PtotCoreColEn2	0
PtotCoreColEn3	0
RdWrFifoErrCnt	0
ReadTrigCnt	0
ReadTrigLatency	1000
RingOscAClear	0
RingOscAEn	0
RingOscAOut	0
RingOscARoute	0
RingOscBClear	0
RingOscBEnBl	0
RingOscBEnBr	0
RingOscBEnCapA	0
RingOscBEnFf	0
RingOscBEnLvt	0
RingOscBOut	0
RingOscBRoute	0
RstCoreCol0	0
RstCoreCol1	0
RstCoreCol2	0
RstCoreCol3	0
SelfTrigDelay	512
SelfTrigDigThr	1
SelfTrigDigThrEn	0
SelfTrigEn	0
SelfTrigMulti	4
SelfTrigPattern	65534
SerEnLane	4
SerEnTap	1
SerInvTap	1
SerSelOut0	1
SerSelOut1	1
SerSelOut2	1
SerSelOut3	1
ServiceBlockEn	1
ServiceBlockPeriod	50
SkippedTrigCnt	0
SldoEnUndershuntA	0
SldoEnUndershuntD	0
SldoTrimA	7
SldoTrimD	4
TotEn6b4b	0
TotEn80	0
TotEnPtoa	0
TotEnPtot	0
TotPtotLatency	500
TrigCnt	0
TruncTimeoutConf	0
TwoLevelTrig	0
VrefIn	1
VrefRsensBot	0
VrefRsensTop	0

Parameter

ADCcalPar	8.0 0.193 10000.0
ChipId	12
EnforceNameIdCheck	True
InjCap	7.38
IrefTrim	11
KSenseInA	21147.564
KSenseInD	21523.963
KSenseShuntA	26182.7
KSenseShuntD	26648.717
KShuntA	1063.279
KShuntD	1067.81
Name	0x14bd7
NfACB	1.2850404
NfASLDO	1.2873867
NfDSLDO	1.287916
NtcCalPar	0.0007489 0.0002769 7.0595e-08
VcalPar	-0.0 0.2

SoftwareType

ChipID

Name

0x14bd7

Institution

ModuleSN

20UPGM22210906

TimeStart

1734521683

TimeEnd

1734522492

useCalibAdc

False

MODULE/FINAL_WARM

6222073c80e95c000a45ebdd

1.01

64657cef8d79bac1f3f00550

mts	2024-12-18 11:48:12.616000
cts	2024-12-18 11:48:12.616000
rev	0

20UPGFC0084951

ANALOG_READBACK

AR_VDD

property

YARR_VERSION	v1.5.2
ANALOG_READBACK_MEASUREMENT_VERSION	2.2.7

comment

Measurements

Vmux34

X	False
Unit	V
Values	0.552512348 0.561430395 0.570557892 0.579768717 0.589358926 0.598443925 0.607580662 0.61671716 0.626065493 0.635018229 0.644348502 0.653960645 0.662516952 0.672210634 0.68108058 0.690261245

Vmux38

X	False
Unit	V
Values	0.581228018 0.590187073 0.600176752 0.609053731 0.620771587 0.630093277 0.639688194 0.649547994 0.658670485 0.668230116 0.678499877 0.688440502 0.700248718 0.710164905 0.711820126 0.712113261

Vmux30

X	False
Unit	V
Values	0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344 0.0157191344

Vmux33

X	False
Unit	V
Values	0.39050588 0.390537381 0.390605509 0.390575528 0.390508264 0.39051044 0.390554488 0.390500903 0.390465617 0.390438586 0.390386641 0.3902843 0.390218079 0.390005499 0.389782995 0.38955602

Vmux37

X	False
Unit	V
Values	0.39434725 0.394149631 0.394241542 0.394243628 0.394189328 0.394092739 0.393976003 0.393828064 0.39357087 0.393236876 0.392594486 0.391870826 0.390254259 0.387051553 0.385473758 0.385082245

Imux63

X	False
Unit	V
Values	0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868 0.0136131868

Imux28

X	False
Unit	V
Values	0.293370277 0.293475896 0.29351896 0.293736905 0.293894142 0.293924987 0.294025391 0.294096202 0.294095814 0.29417941 0.294231147 0.294196218 0.294019848 0.293799788 0.293461353 0.292984486

Imux29

X	False
Unit	V
Values	0.0333537124 0.0321120434 0.0311081093 0.0302944835 0.0294636451 0.0286615007 0.0279039126 0.0273551401 0.02680289 0.0264185779 0.0262318756 0.0262401048 0.0268070884 0.0279249642 0.0299840961 0.0334000774

Imux30

X	False
Unit	V
Values	0.412288159 0.412376076 0.412382007 0.412349164 0.412274927 0.412132829 0.411726266 0.411081463 0.410212576 0.408695757 0.406414241 0.403069735 0.396804422 0.384741575 0.377876431 0.376521915

Imux31

X	False
Unit	V
Values	0.100018464 0.0965585634 0.0930298045 0.0898134932 0.0863292366 0.0837470144 0.081559442 0.0804086477 0.0804439113 0.0822948664 0.0868200362 0.0958033353 0.115988374 0.160711303 0.184610128 0.189393491

SldoTrimA

X	False
Unit	-
Values	0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

SldoTrimD

X	False
Unit	-
Values	0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

ROSC0

X	False
Unit	MHz
Values	408.133 422.167 437.233 450.8 466.633 479.8 494.233 507.633 519.733 532.533 546.167 558.867 572.367 583.3 584.133 584.1

ROSC1

X	False
Unit	MHz
Values	624.8 647.1 670.933 691.733 716.967 737.767 760.233 781.3 800.333 819.933 841.433 861.1 882.033 899.4 900.833 900.533

ROSC2

X	False
Unit	MHz
Values	384.2 398.467 413.533 426.833 442.767 456.033 470.4 483.9 495.967 508.367 522.467 535.067 548.5 559.733 560.633 560.367

ROSC3

X	False
Unit	MHz
Values	617.9 640.467 664.2 685.3 710.567 731.3 754.1 775.433 794.5 814.167 836.0 855.833 877.133 894.4 895.867 895.433

ROSC4

X	False
Unit	MHz
Values	369.5 384.8 401.067 415.733 433.433 447.8 463.933 479.033 492.367 506.9 522.433 536.9 552.167 565.2 566.133 565.9

ROSC5

X	False
Unit	MHz
Values	636.7 663.1 691.2 716.3 746.433 771.7 799.3 825.233 848.8 873.467 900.5 925.533 951.833 973.967 975.767 975.433

ROSC6

X	False
Unit	MHz
Values	413.933 432.067 451.733 469.167 490.3 507.867 527.0 545.167 561.567 579.1 597.867 615.3 633.8 649.133 650.6 650.233

ROSC7

X	False
Unit	MHz
Values	625.767 652.8 681.933 707.833 739.067 764.967 793.367 819.933 844.367 869.433 897.367 922.967 950.2 972.567 974.333 973.933

ROSC8

X	False
Unit	MHz
Values	608.733 631.033 654.4 675.867 700.633 722.0 744.2 766.2 784.733 805.033 826.767 846.633 867.7 885.1 886.6 886.3

ROSC9

X	False
Unit	MHz
Values	601.633 624.0 647.533 669.0 693.867 715.233 737.3 759.033 777.767 798.133 819.8 839.5 860.733 878.2 879.833 879.467

ROSC10

X	False
Unit	MHz
Values	713.633 740.0 767.6 793.133 822.467 847.6 873.9 899.0 921.467 945.5 970.9 994.333 1019.33 1039.67 1041.6 1041.1

ROSC11

X	False
Unit	MHz
Values	716.167 742.7 770.233 795.6 825.033 850.267 876.5 901.667 924.1 948.367 973.9 997.067 1022.37 1042.67 1044.43 1044.13

ROSC12

X	False
Unit	MHz
Values	599.0 621.9 645.5 667.0 692.3 714.533 736.533 758.733 777.9 799.067 820.967 841.1 862.9 880.633 882.2 881.867

ROSC13

X	False
Unit	MHz
Values	597.167 620.267 644.233 666.2 691.433 713.267 736.0 757.6 777.233 798.267 820.433 840.733 862.8 880.633 882.333 881.733

ROSC14

X	False
Unit	MHz
Values	697.833 724.867 752.233 778.133 807.633 833.1 859.5 884.933 907.7 931.767 957.8 981.267 1006.87 1027.8 1029.53 1029.1

ROSC15

X	False
Unit	MHz
Values	709.1 735.833 763.7 789.367 818.833 844.433 870.733 896.267 918.9 942.933 968.833 992.567 1017.87 1038.6 1040.47 1039.93

ROSC16

X	False
Unit	MHz
Values	620.1 646.533 673.667 699.1 728.633 754.1 780.233 806.6 829.467 854.367 880.6 904.9 931.2 952.667 954.767 954.433

ROSC17

X	False
Unit	MHz
Values	612.033 638.467 665.467 691.2 720.567 746.467 772.8 798.8 821.6 846.267 872.8 897.4 923.533 945.467 947.333 946.633

ROSC18

X	False
Unit	MHz
Values	732.4 763.6 796.267 826.533 861.433 891.967 923.667 954.567 981.367 1011.3 1043.23 1072.27 1103.83 1129.4 1131.77 1131.17

ROSC19

X	False
Unit	MHz
Values	730.267 761.467 793.9 824.0 859.167 889.7 921.1 952.133 978.967 1008.73 1040.4 1069.23 1100.8 1126.5 1128.77 1128.13

ROSC20

X	False
Unit	MHz
Values	584.7 610.4 637.8 662.833 692.167 717.867 744.067 769.967 792.633 817.667 843.967 868.3 894.633 915.567 917.633 916.967

ROSC21

X	False
Unit	MHz
Values	574.267 600.1 626.833 652.033 681.2 706.6 733.133 758.633 781.233 806.1 832.133 856.533 882.633 903.667 905.633 905.4

ROSC22

X	False
Unit	MHz
Values	725.267 757.533 791.2 822.467 858.3 890.133 922.867 954.567 982.533 1013.53 1046.03 1076.0 1108.47 1134.4 1137.1 1136.57

ROSC23

X	False
Unit	MHz
Values	737.0 768.967 802.7 833.867 870.267 901.8 934.767 966.567 994.8 1025.63 1058.37 1088.07 1120.8 1147.1 1149.43 1148.8

ROSC24

X	False
Unit	MHz
Values	411.233 427.5 444.533 460.367 478.6 494.467 510.8 526.733 540.7 556.133 572.4 587.1 603.067 616.2 617.3 617.2

ROSC25

X	False
Unit	MHz
Values	408.7 425.0 442.0 457.6 475.7 491.467 507.8 523.5 537.5 552.633 568.9 583.533 599.333 612.633 613.833 613.567

ROSC26

X	False
Unit	MHz
Values	493.167 513.0 533.533 552.667 574.733 594.133 613.833 633.233 650.267 668.733 688.667 706.767 726.5 742.367 743.8 743.367

ROSC27

X	False
Unit	MHz
Values	485.9 505.7 526.033 544.933 566.9 586.033 605.667 624.7 641.7 660.067 679.867 697.633 717.3 733.067 734.5 734.2

ROSC28

X	False
Unit	MHz
Values	493.1 512.9 533.5 552.433 574.6 593.833 613.4 632.633 649.2 667.767 687.233 705.2 724.467 740.233 741.5 741.233

ROSC29

X	False
Unit	MHz
Values	500.033 519.933 540.567 559.3 581.467 600.6 620.167 639.267 656.333 674.667 694.167 712.0 731.367 746.967 748.3 748.0

ROSC30

X	False
Unit	MHz
Values	725.3 747.667 770.833 792.0 816.667 837.6 859.0 879.633 898.067 917.767 938.6 957.333 977.633 993.633 994.867 994.4

ROSC31

X	False
Unit	MHz
Values	784.633 808.433 833.233 855.5 881.7 903.933 926.8 949.067 968.1 989.067 1011.27 1031.0 1052.53 1069.27 1070.67 1070.27

ROSC32

X	False
Unit	MHz
Values	639.0 660.767 683.7 704.367 728.467 749.167 770.5 791.4 809.9 829.633 850.7 869.633 890.367 906.433 907.867 907.6

ROSC33

X	False
Unit	MHz
Values	687.933 711.467 735.767 758.267 784.067 806.4 829.4 851.9 871.367 892.7 915.367 935.8 957.533 975.267 976.633 976.133

ROSC34

X	False
Unit	MHz
Values	700.667 730.467 761.633 790.633 824.3 853.633 883.733 913.667 939.667 968.367 998.933 1026.6 1056.53 1081.5 1083.6 1083.03

ROSC35

X	False
Unit	MHz
Values	702.667 732.4 763.767 792.967 826.7 855.967 886.2 915.9 941.9 970.8 1001.47 1029.07 1059.13 1083.97 1086.07 1085.5

ROSC36

X	False
Unit	MHz
Values	706.6 736.433 767.9 796.967 830.933 860.267 890.933 920.767 946.7 975.767 1006.17 1034.0 1063.9 1088.9 1090.93 1090.5

ROSC37

X	False
Unit	MHz
Values	703.433 733.233 764.733 793.6 827.433 856.967 887.267 917.4 943.067 971.9 1002.67 1030.5 1060.4 1085.2 1087.37 1086.9

ROSC38

X	False
Unit	MHz
Values	704.7 734.633 766.1 794.9 828.867 858.3 888.6 918.633 944.4 973.233 1003.73 1031.83 1061.9 1086.53 1088.73 1088.1

ROSC39

X	False
Unit	MHz
Values	703.0 733.067 764.367 793.4 827.233 856.533 887.067 916.933 942.967 971.467 1002.33 1030.2 1060.5 1085.27 1087.2 1086.8

ROSC40

X	False
Unit	MHz
Values	699.367 729.167 760.133 789.067 822.733 851.833 882.233 911.667 937.767 966.4 996.8 1024.47 1054.83 1078.9 1081.2 1080.43

ROSC41

X	False
Unit	MHz
Values	696.033 725.7 756.733 785.8 819.333 848.7 879.167 908.7 934.733 963.3 993.7 1021.53 1051.83 1076.07 1078.13 1077.87

Metadata

FirmwareVersion

FirmwareIdentifier

ChannelConfig

SoftwareVersion

ChipConfigs

RD53B

GlobalConfig

AiRegionRow	0
AuroraActiveLanes	1
AuroraCBSend	0
AuroraCBWait0	4095
AuroraCBWait1	0
AuroraCCSend	3
AuroraCCWait	25
AuroraEnPrbs	0
AuroraInitWait	32
AutoRead0	137
AutoRead1	133
AutoRead2	121
AutoRead3	122
AutoRead4	124
AutoRead5	127
AutoRead6	126
AutoRead7	125
BcidCnt	0
BitFlipErrCnt	0
BitFlipWngCnt	0
CapMeasEn	0
CapMeasEnPar	0
CdrClkSel	0
CdrCp	40
CdrCpBuff	200
CdrCpFd	400
CdrOverwriteLimit	0
CdrPhaseDetSel	0
CdrVco	1023
CdrVcoBuff	500
ChSyncLockThr	31
CmdErrCnt	0
CmlBias0	800
CmlBias1	400
CmlBias2	0
DataEnBcid	0
DataEnBinaryRo	0
DataEnEos	1
DataEnHitRemoval	0
DataEnIsoHitRemoval	0
DataEnL1id	0
DataEnRaw	0
DataMaxHits	0
DataMaxTot	0
DataMergeEn	0
DataMergeEnBond	0
DataMergeEnClkGate	0
DataMergeInMux0	0
DataMergeInMux1	1
DataMergeInMux2	2
DataMergeInMux3	3
DataMergeInPol	0
DataMergeOutMux0	2
DataMergeOutMux1	3
DataMergeOutMux2	0
DataMergeOutMux3	1
DataMergeSelClk	0
DataReadDelay	0
DiffComp	500
DiffFbCapEn	0
DiffLcc	100
DiffLccEn	0
DiffPreComp	350
DiffPreampL	550
DiffPreampM	550
DiffPreampR	550
DiffPreampT	550
DiffPreampTL	550
DiffPreampTR	550
DiffTh1L	309
DiffTh1M	242
DiffTh1R	309
DiffTh2	50
DiffVff	60
EfuseConfig	3855
EfuseReadData0	55044
EfuseReadData1	4427
EfuseWriteData0	0
EfuseWriteData1	0
EnChipId	0
EnCoreCol0	65535
EnCoreCol1	65535
EnCoreCol2	65535
EnCoreCol3	63
EnCoreColCal0	0
EnCoreColCal1	0
EnCoreColCal2	0
EnCoreColCal3	0
ErrWngMask	0
EvenMask	0
FineDelayClk	0
FineDelayData	0
GcrDefaultConfig	44149
GcrDefaultConfigB	21386
GlobalPulseConf	0
GlobalPulseWidth	10
GpCmosDs	0
GpCmosEn	1
GpCmosRoute	34
GpLvdsBias	7
GpLvdsEn	15
GpLvdsPad0	0
GpLvdsPad1	1
GpLvdsPad2	33
GpLvdsPad3	35
GpValReg	5
HitOrCnt0	0
HitOrCnt1	0
HitOrCnt2	0
HitOrCnt3	0
HitOrMask0	0
HitOrMask1	0
HitOrMask2	0
HitOrMask3	0
InjAnaMode	0
InjDigEn	0
InjFineDelay	5
InjVcalHigh	851
InjVcalMed	200
InjVcalRange	1
Latency	500
LinComp	110
LinCompTa	110
LinFc	20
LinGdacL	408
LinGdacM	408
LinGdacR	408
LinKrumCurr	50
LinLdac	100
LinPreampL	300
LinPreampM	300
LinPreampR	300
LinPreampT	300
LinPreampTL	300
LinPreampTR	300
LinRefKrum	300
LockLossCnt	0
MonAdcTrim	0
MonSensAcbDem	0
MonSensAcbEn	0
MonSensAcbSelBias	0
MonSensSldoAnaDem	0
MonSensSldoAnaEn	0
MonSensSldoAnaSelBias	0
MonSensSldoDigDem	0
MonSensSldoDigEn	0
MonSensSldoDigSelBias	0
MonitorEnable	1
MonitorI	63
MonitorV	32
MonitoringDataAdc	0
NtcDac	100
NumOfEventsInStream	1
OddMask	0
PixAutoRow	1
PixBroadcast	0
PixConfMode	1
PixDefaultConfig	40162
PixDefaultConfigB	25373
PixPortal	44445
PixRegionCol	199
PixRegionRow	0
PtotCoreColEn0	0
PtotCoreColEn1	0
PtotCoreColEn2	0
PtotCoreColEn3	0
RdWrFifoErrCnt	0
ReadTrigCnt	0
ReadTrigLatency	1000
RingOscAClear	0
RingOscAEn	0
RingOscAOut	0
RingOscARoute	0
RingOscBClear	0
RingOscBEnBl	0
RingOscBEnBr	0
RingOscBEnCapA	0
RingOscBEnFf	0
RingOscBEnLvt	0
RingOscBOut	0
RingOscBRoute	0
RstCoreCol0	0
RstCoreCol1	0
RstCoreCol2	0
RstCoreCol3	0
SelfTrigDelay	512
SelfTrigDigThr	1
SelfTrigDigThrEn	0
SelfTrigEn	0
SelfTrigMulti	4
SelfTrigPattern	65534
SerEnLane	4
SerEnTap	1
SerInvTap	1
SerSelOut0	1
SerSelOut1	1
SerSelOut2	1
SerSelOut3	1
ServiceBlockEn	1
ServiceBlockPeriod	50
SkippedTrigCnt	0
SldoEnUndershuntA	0
SldoEnUndershuntD	0
SldoTrimA	7
SldoTrimD	4
TotEn6b4b	0
TotEn80	0
TotEnPtoa	0
TotEnPtot	0
TotPtotLatency	500
TrigCnt	0
TruncTimeoutConf	0
TwoLevelTrig	0
VrefIn	1
VrefRsensBot	0
VrefRsensTop	0

Parameter

ADCcalPar	8.0 0.193 10000.0
ChipId	12
EnforceNameIdCheck	True
InjCap	7.38
IrefTrim	11
KSenseInA	21147.564
KSenseInD	21523.963
KSenseShuntA	26182.7
KSenseShuntD	26648.717
KShuntA	1063.279
KShuntD	1067.81
Name	0x14bd7
NfACB	1.2850404
NfASLDO	1.2873867
NfDSLDO	1.287916
NtcCalPar	0.0007489 0.0002769 7.0595e-08
VcalPar	-0.0 0.2

SoftwareType

ChipID

Name

0x14bd7

Institution

ModuleSN

20UPGM22210906

TimeStart

1734519933

TimeEnd

1734521683

useCalibAdc

False

MODULE/FINAL_WARM

6222073c80e95c000a45ebdd

1.01

64657cef8d79bac1f3f00550

mts	2024-12-18 11:48:12.616000
cts	2024-12-18 11:48:12.616000
rev	0

rawHash

feaba07c594cf79f791403bb09ea97a9

stage

MODULE/FINAL_WARM

ProductionDB Record

Expand ProductionDB Record

6762d65d80ca29484585b7d5

state

ready

stateTs

2024-12-18T14:04:13.795Z

stateUserIdentity

8665-7663-1

date

2024-12-18T11:48:00.000Z

testType

id	6393a07c15838700361eebef
code	ANALOG_READBACK
name	Analog Readback
state	active

institution

id	59d60ee4ed67730005160cd9
code	GL
name	Glasgow University

user

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

runNumber

6762b685888e9d75d4594af4

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Analog Readback Analysis Version	string	None	True	2.2.9	None	None
MEASUREMENT_DATE	Date measurement performed	datetime	None	False	2024-12-18T10:58:12.000+00:00	None	None
YARR_VERSION	Yarr Version	string	None	False	v1.5.2	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
AR_NOMINAL_SETTINGS	Analog readback at nominal settings	float	array	1	None	None	None	4e-06 8.93e-05 4.86e-05 4.2e-06 3.96e-05 1.99e-05 0 3.97e-05 7.59e-05 -999 0 0 4.87e-05 6.53e-05 5.18e-05 8.87e-05 7.49e-05 8.43e-05 8.76e-05 8.87e-05 6.64e-05 4.54e-05 4.52e-05 6.58e-05 4.51e-05 4.66e-05 -999 -999 0.5931717 0.0362319 0.8583855 0.1933782 0.837 -999 -999 0.837 1.1946845 0.1537359 0.3238779 0.1723856 0.0414826 0.0413089 0.177858 0.2124088 0.2095506 0.638517 -999 0.6368166 -999 0.6395078 -999 -999 -999 -999 -999 -999 -999 -999 -999 -999 -999 -999 0.0157156 0.472 1.988 1.4991487 1.203089 0.592852 1.0039037 1.5141059 1.2101086 0.5986229	None
AR_ROSC_MAX_RESIDUAL	Ring Oscillator Max Residual	float	array	1	None	None	None	2.7728982071981685 4.4781245547143484 2.7199061740018684 4.458171866452792 2.492264326207525 4.273451474610048 2.907653399102126 4.563757671296858 4.389879941238541 4.367275668738252 5.214084505977975 5.183842757062233 4.3128045538966155 4.30692768391047 5.0752395139919955 5.166040949898555 4.2887191141712675 4.290789819128651 5.0184433859334385 5.037934035981902 4.307841552786202 4.221796566148742 5.32851411316262 5.333591064189071 2.907392844900566 2.8369719057917355 3.383934572795702 3.3270930864499504 3.5527673612844555 3.54905024474188 5.020789777171647 5.4364896545089545 4.43237952995416 4.83284409251203 4.845035707726186 4.895058993515445 4.991684383024414 4.934975115587456 4.921434603859674 4.880325240732296 4.893118247921895 4.887749439603669	None
AR_ROSC_OFFSET	Ring Oscillator Offset	float	array	1	None	None	None	-345.85211951270503 -555.1785859710346 -370.395494479184 -570.6464126674102 -475.99134116873705 -821.9050389068827 -604.9162388656796 -873.6066356612612 -581.5424933393092 -588.7139086654075 -689.9938046616687 -689.431526271427 -614.3512762425643 -622.6333554478989 -721.7144204243355 -708.8752134192001 -818.0707023429023 -828.5775855257358 -984.9002809323969 -983.1806825746643 -848.2383378479472 -852.3775308670778 -1045.4422417849914 -1038.0945751943113 -473.74690509932765 -471.09292027216696 -583.0724325109212 -581.2723384335525 -572.4486753217922 -564.8229384001494 -424.82839207336593 -435.34932813026296 -512.2273668119766 -547.6369281880114 -947.1007246836625 -946.939974841685 -947.3756120891051 -948.8186714421795 -947.3231339329188 -950.2524793052249 -943.6743922335293 -949.5740531453578	None
AR_ROSC_SLOPE	Ring Oscillator Slope	float	array	1	None	None	None	670.8292173049476 1050.2298911824867 671.4223079799383 1057.7638605386014 751.1286061175837 1295.7063985128568 904.8111435202454 1332.1270289970907 1058.9244124772708 1059.1128249398114 1248.8998555131334 1250.6145792728587 1079.279619079235 1085.1983792692458 1262.94079010604 1261.6108316673185 1277.7975508923114 1279.934223440314 1525.5402673269796 1522.1559055755558 1272.8199807008782 1267.1906246293347 1573.14380663675 1576.7920467200272 786.6828159527189 782.1180495732035 956.5120258495939 948.5017463075993 947.4158544152034 946.8221365584351 1024.6825630438113 1087.0909918552543 1024.5298086414277 1099.6984154714805 1463.6323115987775 1465.3457829237418 1469.2761461633136 1467.6823595307103 1467.544305110536 1468.6238677684735 1459.4751694580825 1461.6682014925873	None
AR_TEMP_ACB	Temperature ACB	float	single	None	None	None	None	20.188	None
AR_TEMP_ASLDO	Temperature Ana SLDO	float	single	None	None	None	None	21.283	None
AR_TEMP_DSLDO	Temperature Dig SLDO	float	single	None	None	None	None	21.859	None
AR_TEMP_EXT	Control temperature (external NTC from the FE)	float	single	None	None	None	None	19.3	None
AR_TEMP_NF_ACB	Temperature calibration constant (ACB)	float	single	None	None	None	None	1.285	None
AR_TEMP_NF_ASLDO	Temperature calibration constant (ana SLDO)	float	single	None	None	None	None	1.287	None
AR_TEMP_NF_BOTTOM	Temperature calibration constant (poly bottom)	float	single	None	None	None	None	-999	None
AR_TEMP_NF_DSLDO	Temperature calibration constant (dig SLDO)	float	single	None	None	None	None	1.288	None
AR_TEMP_NF_TOP	Temperature calibration constant (poly top)	float	single	None	None	None	None	-999	None
AR_TEMP_NTC	Temperature NTC	float	single	None	None	None	None	19.07	None
AR_TEMP_POLY_BOTTOM	Temperature poly bottom	float	single	None	None	None	None	-999	None
AR_TEMP_POLY_TOP	Temperature poly top	float	single	None	None	None	None	-999	None
AR_VDDA_VS_TRIM	VDDA vs trim	float	array	1	None	None	None	1.074 1.091 1.11 1.128 1.147 1.165 1.184 1.202 1.221 1.239 1.257 1.276 1.294 1.313 1.331 1.349	None
AR_VDDD_VS_TRIM	VDDD vs trim	float	array	1	None	None	None	1.131 1.149 1.169 1.187 1.21 1.229 1.248 1.268 1.286 1.305 1.326 1.345 1.369 1.389 1.392 1.393	None

cts

2024-12-18T14:04:13.795Z

sys

cts	2024-12-18T14:04:13.795Z
mts	2024-12-18T14:04:17.006Z
rev	2

defects

comments

None

attachments

code

680f53887d66e862f5bb020509fdc9fa

dateTime

2024-12-18T14:04:14.509Z

title

TestRun_6762d65d80ca29484585b7d5_Attachment_Pack.zip

description

/home/rd53a/localdb-tools/viewer/static/cache/thumbnail/TestRun_6762d65d80ca29484585b7d5_Attachment_Pack.zip

contentType

None

type

eos

url

https://eosatlas.cern.ch/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/8/0/680f53887d66e862f5bb020509fdc9fa?authz=zteos64:MDAwMDAyYmV4nO2QO0vEUBCFyfoothILi20cxULQPG5unlPZKGKhIIhgSJHk3uyG3c0Nyd1msbIQOxtttLKztrPQUvwB2q4_wB8gFoJxsbCwtHSKw_BxZjic5mOjqZQzb68fd9OtqUx2C7bYGBbLikl1Lio9kr3oWxNe5u1SDAqWVV2dcanWdr0oBVNZrDu6pxtbS4nrecS0LTW13EQlhKeqRwxfjaw4NYjrO67p7z4pwT5nsMFjMB0wCRoULQqmYdohDDKGxCKOR4JxnBDaX4QabjAsQpAZ47nEUgipEdt2bUrRodRZCxDTetAmGiGO5nsaMULIoz7H8R9gOUKdVmK3jG2IigKhIyqJvx8y0Y-yHH-QNhdo2IRCNWD1BrKMEo4g8ph3ol6KszB3s3d9u3B5dLK9ujM6O5g_HMnh6Yty_zCRX6y_r2y2_sv-q7Lh6vz4efITvoPZew%3d%3d

urlCernbox

https://cernbox.cern.ch/files/spaces/eos/atlas/atlascerngroupdisk/det-itk/prod-db/6/8/0/680f53887d66e862f5bb020509fdc9fa

filename

680f53887d66e862f5bb020509fdc9fa

user

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

code

8c2f98b12d8ee6bac81279e4d9aa2d6b

dateTime

2024-12-18T14:04:16.797Z

title

RAW

description

RAW

contentType

text/plain

type

file

binaryStoreg02

True

filename

20UPGFC0084951_MODULE__FINAL_WARM_ANALOG_READBACK_6762d65d80ca29484585b7d5_6762b67c888e9d75d4594ad1.json

user

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

components

code

state

stateTs

stateUserIdentity

dummy

completed

completedTs

completedUserIdentity

trashed

trashedTs

serialNumber

alternativeIdentifier

ancestorMap

project

subproject

componentType

type

properties

testedAtStage

institution

6222073c80e95c000a45ebdd

c0ee9d8734892bf05d122be80d266dca

ready

2022-03-04T12:34:04.596Z

9198-3887-1

False

None

False

None

20UPGFC0084951

None

parent

component

63d148b89eb28800363f20ed

code

5f7632852f764a8528f722d588a758f4

state

ready

stateTs

2023-01-25T15:20:24.514Z

stateUserIdentity

4709-4605-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGB42000066

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	BARE_MODULE
name	Bare Module

type

code	QUAD_BARE_MODULE
name	Quad bare module

testedAtStage

code	MODULE/LONG_TERM_STABILITY_TEST
name	Long Term Stability Test

highestLevelParent

component

6671723c01875b0034ea8cbc

code

0176f303092bace75fbb36e03b14b533

state

ready

stateTs

2024-06-18T11:40:44.945Z

stateUserIdentity

24-7185-1

dummy

False

completed

False

completedTs

None

completedUserIdentity

None

trashed

False

trashedTs

None

trashedUserIdentity

None

serialNumber

20UPGM22210906

alternativeIdentifier

None

project

code	P
name	Pixels

subproject

code	PG
name	Pixel general

componentType

code	MODULE
name	Module

type

code	OUTER_SYSTEM_QUAD_MODULE
name	Outer system quad module

testedAtStage

code	MODULE/LONG_TERM_STABILITY_TEST
name	Long Term Stability Test

code	P
name	Pixels

code	PG
name	Pixel general

code	FE_CHIP
name	Front-end Chip

code	ITKPIX_V11
name	ITkpix_V1.1

code	name	dataType	required	default	value
WAFERSN	Wafer serial number	string	False	False	20UPGFW0000331

code	MODULE/FINAL_WARM
name	Final Warm
order	19
initial	False
final	False

code	BONN
name	University of Bonn

Current Stage: Final flatness measurement

No tests are allocated for this stage.

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Final Warm (MODULE/FINAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Thermal Cycles (MODULE/THERMAL_CYCLES)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Test	Local Result	ProdDB Record
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	Registered	Registered
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	No result	N/A
Analog Readback (ANALOG_READBACK)	No result	N/A
Data Transmission (DATA_TRANSMISSION)	No result	N/A
Injection Capacitance (INJECTION_CAPACITANCE)	No result	N/A
Low Power Mode (LP_MODE)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	No result	N/A
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	No result	N/A
SLDO (SLDO)	No result	N/A
Tuning (TUNING)	No result	N/A
Undershunt Protection (UNDERSHUNT_PROTECTION)	No result	N/A
VCAL Calibration (VCAL_CALIBRATION)	No result	N/A

Initial Warm (MODULE/INITIAL_WARM)

Test	Local Result	ProdDB Record
ADC Calibration (ADC_CALIBRATION)	Registered	Registered
Analog Readback (ANALOG_READBACK)	Registered	Registered
Data Transmission (DATA_TRANSMISSION)	Registered	Registered
Injection Capacitance (INJECTION_CAPACITANCE)	Registered	Registered
Low Power Mode (LP_MODE)	Registered	Registered
Minimal Health Test (MIN_HEALTH_TEST)	Registered	Registered
Overvoltage Protection (OVERVOLTAGE_PROTECTION)	Registered	Registered
Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)	Registered	Registered
SLDO (SLDO)	Registered	Registered
Tuning (TUNING)	Registered	Registered
Undershunt Protection (UNDERSHUNT_PROTECTION)	Registered	Registered
VCAL Calibration (VCAL_CALIBRATION)	Registered	Registered

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Test	Local Result	ProdDB Record
Analog Readback (ANALOG_READBACK)	No result	N/A
Minimal Health Test (MIN_HEALTH_TEST)	No result	N/A

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

Test	Local Result	ProdDB Record
Electrical FE chip tests (FECHIP_TEST)	Registered	Registered

LocalDB Test ID	Stage	Test Name	Inspector	Measurement Date	Analysis Date	Tags	QC Registration
6762f0…5952ab	MODULE/FINAL_COLD	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
676308…595498	MODULE/FINAL_COLD	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6762f9…5953ea	MODULE/FINAL_COLD	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6762f0…595285	MODULE/FINAL_COLD	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762ef…595233	MODULE/FINAL_COLD	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762ee…5951d4	MODULE/FINAL_COLD	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762ec…59517a	MODULE/FINAL_COLD	SLDO	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762e8…5950df	MODULE/FINAL_COLD	ANALOG_READBACK	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762dc…59506d	MODULE/FINAL_COLD	ADC_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762be…594c46	MODULE/FINAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762be…594c98	MODULE/FINAL_WARM	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762cf…594e0e	MODULE/FINAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6762cf…594f01	MODULE/FINAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6762cd…594d47	MODULE/FINAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6762bf…594cbe	MODULE/FINAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762bd…594be8	MODULE/FINAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762ba…594b8e	MODULE/FINAL_WARM	SLDO	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762b6…594af4	MODULE/FINAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762aa…594a7c	MODULE/FINAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6762a4…59495f	MODULE/LONG_TERM_STABILITY_TEST	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6762a3…59487a	MODULE/LONG_TERM_STABILITY_TEST	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
676197…592b34	MODULE/THERMAL_CYCLES	PIXEL_FAILURE_ANALYSIS	KennethWraight	N/A	a year ago	No tags	Selected
676196…592a87	MODULE/THERMAL_CYCLES	MIN_HEALTH_TEST	KennethWraight	N/A	a year ago	No tags	Selected
67603c…592506	MODULE/POST_PARYLENE_COLD	INJECTION_CAPACITANCE	KennethWraight	a year ago	a year ago	No tags	Selected
676056…592798	MODULE/POST_PARYLENE_COLD	PIXEL_FAILURE_ANALYSIS	KennethWraight	N/A	a year ago	No tags	Selected
676056…59287b	MODULE/POST_PARYLENE_COLD	TUNING	KennethWraight	N/A	a year ago	No tags	Selected
676054…592712	MODULE/POST_PARYLENE_COLD	MIN_HEALTH_TEST	KennethWraight	N/A	a year ago	No tags	Selected
676039…59245d	MODULE/POST_PARYLENE_COLD	SLDO	KennethWraight	a year ago	a year ago	No tags	Selected
67603d…592577	MODULE/POST_PARYLENE_COLD	DATA_TRANSMISSION	KennethWraight	a year ago	a year ago	No tags	Selected
67603d…592551	MODULE/POST_PARYLENE_COLD	LP_MODE	KennethWraight	a year ago	a year ago	No tags	Selected
67603c…5924af	MODULE/POST_PARYLENE_COLD	VCAL_CALIBRATION	KennethWraight	a year ago	a year ago	No tags	Selected
676035…5923c5	MODULE/POST_PARYLENE_COLD	ANALOG_READBACK	KennethWraight	a year ago	a year ago	No tags	Selected
676029…59236d	MODULE/POST_PARYLENE_COLD	ADC_CALIBRATION	KennethWraight	a year ago	a year ago	No tags	Selected
67239a…665806	MODULE/POST_PARYLENE_WARM	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
672b75…25df0d	MODULE/POST_PARYLENE_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
672b75…25dfba	MODULE/POST_PARYLENE_WARM	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
6724ad…6658a8	MODULE/POST_PARYLENE_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
672399…6657d0	MODULE/POST_PARYLENE_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6723a5…66582e	MODULE/POST_PARYLENE_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
672399…66578e	MODULE/POST_PARYLENE_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
6723ae…66585b	MODULE/POST_PARYLENE_WARM	SLDO	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
67238e…6656f0	MODULE/POST_PARYLENE_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
672382…6656b9	MODULE/POST_PARYLENE_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5c…fb7005	MODULE/INITIAL_WARM	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5f…fb70a1	MODULE/INITIAL_WARM	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5f…fb707f	MODULE/INITIAL_WARM	UNDERSHUNT_PROTECTION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5d…fb705f	MODULE/INITIAL_WARM	OVERVOLTAGE_PROTECTION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a5d…fb703b	MODULE/INITIAL_WARM	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a59…fb6f89	MODULE/INITIAL_WARM	SLDO	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a48…fb6eb8	MODULE/INITIAL_WARM	ADC_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
622208…4611be	TESTONWAFER	FECHIP_TEST	MarkStandke	N/A	a year ago	No tags	Selected
669e6a…fb7746	MODULE/INITIAL_COLD	DATA_TRANSMISSION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e6a…fb7720	MODULE/INITIAL_COLD	UNDERSHUNT_PROTECTION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e67…fb7714	MODULE/INITIAL_COLD	OVERVOLTAGE_PROTECTION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e67…fb76f0	MODULE/INITIAL_COLD	LP_MODE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
66a114…dcbb56	MODULE/INITIAL_COLD	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
66a112…dcb953	MODULE/INITIAL_COLD	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
66a114…dcbaae	MODULE/INITIAL_COLD	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
669e60…fb76ae	MODULE/INITIAL_COLD	INJECTION_CAPACITANCE	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e60…fb766c	MODULE/INITIAL_COLD	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e5d…fb762e	MODULE/INITIAL_COLD	SLDO	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e55…fb75ad	MODULE/INITIAL_COLD	ANALOG_READBACK	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e4c…fb7557	MODULE/INITIAL_COLD	ADC_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669e43…fb72c4	MODULE/INITIAL_WARM	PIXEL_FAILURE_ANALYSIS	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
669e4a…fb7489	MODULE/INITIAL_WARM	TUNING	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
669e48…fb73c3	MODULE/INITIAL_WARM	MIN_HEALTH_TEST	Md ArifAbdullaSamy	N/A	a year ago	No tags	Selected
669a5b…fb6fc3	MODULE/INITIAL_WARM	VCAL_CALIBRATION	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected
669a50…fb6efc	MODULE/INITIAL_WARM	ANALOG_READBACK	Md ArifAbdullaSamy	a year ago	a year ago	No tags	Selected

Stage	Tests
TESTONWAFER	Electrical FE chip tests (FECHIP_TEST)
HYBRIDISATION
UNUSABLE
BAREMODULEASSEMBLY
BAREMODULERECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK)
MODULE/INIT
MODULE/ASSEMBLY
MODULE/WIREBONDING	ADC Calibration (ADC_CALIBRATION) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO) Low Power Mode (LP_MODE) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/INITIAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/QC_CROSSCHECK	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
MODULE/INITIAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_MASKING	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Low Power Mode (LP_MODE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/PARYLENE_COATING
MODULE/PARYLENE_UNMASKING	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE)
MODULE/WIREBOND_PROTECTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) Low Power Mode (LP_MODE) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION)
MODULE/POST_PARYLENE_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE)
MODULE/POST_PARYLENE_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) VCAL Calibration (VCAL_CALIBRATION) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) SLDO (SLDO) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/THERMAL_CYCLES	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Cold startup (COLD_STARTUP)
MODULE/LONG_TERM_STABILITY_TEST	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) SLDO (SLDO) Tuning (TUNING) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) Analog Readback (ANALOG_READBACK) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Undershunt Protection (UNDERSHUNT_PROTECTION) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Tuning (TUNING) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Undershunt Protection (UNDERSHUNT_PROTECTION) Tuning (TUNING) Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Data Transmission (DATA_TRANSMISSION) Cold startup (COLD_STARTUP)
MODULE/FINAL_METROLOGY	Data Transmission (DATA_TRANSMISSION) ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Injection Capacitance (INJECTION_CAPACITANCE) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Injection Capacitance (INJECTION_CAPACITANCE) Analog Readback (ANALOG_READBACK)
MODULE/QC_STATUS
MODULE/UNHAPPY	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) Data Transmission (DATA_TRANSMISSION) VCAL Calibration (VCAL_CALIBRATION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Injection Capacitance (INJECTION_CAPACITANCE)
MODULE/NOTCONSIDEREDINYIELDS	ADC Calibration (ADC_CALIBRATION) VCAL Calibration (VCAL_CALIBRATION) SLDO (SLDO) Undershunt Protection (UNDERSHUNT_PROTECTION) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Analog Readback (ANALOG_READBACK) Overvoltage Protection (OVERVOLTAGE_PROTECTION) Low Power Mode (LP_MODE) Injection Capacitance (INJECTION_CAPACITANCE) Data Transmission (DATA_TRANSMISSION)
MODULE/GRAVEYARD
MODULE/COMPLETE
MODULE/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Data Transmission (DATA_TRANSMISSION) Tuning (TUNING)
MODULE/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
LLS/PRE_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Low Power Mode (LP_MODE) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/PRE_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_WARM	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/POST_TC_COLD	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
LLS/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Analog Readback (ANALOG_READBACK) SLDO (SLDO) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/INIT
OB_LOADED_MODULE_CELL/ASSEMBLY
OB_LOADED_MODULE_CELL/THERMAL_CYCLES
OB_LOADED_MODULE_CELL/FINAL_WARM	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/FINAL_COLD	ADC Calibration (ADC_CALIBRATION) Analog Readback (ANALOG_READBACK) SLDO (SLDO) VCAL Calibration (VCAL_CALIBRATION) Injection Capacitance (INJECTION_CAPACITANCE) Low Power Mode (LP_MODE) Data Transmission (DATA_TRANSMISSION) Minimal Health Test (MIN_HEALTH_TEST) Tuning (TUNING) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS)
OB_LOADED_MODULE_CELL/THERMAL_COLD
OB_LOADED_MODULE_CELL/THERMAL_WARM
OB_LOADED_MODULE_CELL/ENVELOPE_CHECK
OB_LOADED_MODULE_CELL/QC_STATUS
OB_LOADED_MODULE_CELL/UNHAPPY
OB_LOADED_MODULE_CELL/COMPLETE
OB_LOADED_MODULE_CELL/RECEPTION	Minimal Health Test (MIN_HEALTH_TEST) Pixel Failure Analysis (PIXEL_FAILURE_ANALYSIS) SLDO (SLDO)
OB_LOADED_MODULE_CELL/TAB_CUTTING	Minimal Health Test (MIN_HEALTH_TEST)
OB_LOADED_MODULE_CELL/PIGTAIL_INSERTION
TEST_AFTER_LOADED_LOCAL_SUPPORT_ASSEMBLY	OB:Loaded local support QC electrical connectivity (OBLoadedLocalSupportQC_ElectricalConnectivity) OB:Loaded local support QC electrical performance (OBLoadedLocalSupportQC_ElectricalPerformance) OB:Loaded local support reception at the integration site (OBLoadedLocalSupport_IntegrationSite) OB:Loaded local support QC electrical low power (OBLoadedLocalSupport_QCElectricalLowPower)
TEST_JM_OEC_FE

20UPGFC0084951

MODULE/FINAL_METROLOGY

Component Information

Wafer

Properties

Comments

Test: ANALOG_READBACK QC Passed

(Stage: MODULE/FINAL_WARM)

Basic View Only: custom view for this TestRun is not prepared.

Metadata

Results

Attachments

RAW Results Record

ProductionDB Record

Current Stage: Final flatness measurement

Past QC Stages and Results

Final Cold (MODULE/FINAL_COLD)

Final Warm (MODULE/FINAL_WARM)

Long Term Stability Test (MODULE/LONG_TERM_STABILITY_TEST)

Thermal Cycles (MODULE/THERMAL_CYCLES)

Post-Parylene Cold (MODULE/POST_PARYLENE_COLD)

Post-Parylene Warm (MODULE/POST_PARYLENE_WARM)

Wirebond Protection (alt) (MODULE/WIREBOND_PROTECTION)

Parylene Unmasking (MODULE/PARYLENE_UNMASKING)

Parylene Coating (MODULE/PARYLENE_COATING)

Parylene Masking (MODULE/PARYLENE_MASKING)

Initial Cold (MODULE/INITIAL_COLD)

QC cross-check (module swapping) (MODULE/QC_CROSSCHECK)

Initial Warm (MODULE/INITIAL_WARM)

Wire Bonding (MODULE/WIREBONDING)

Bare module to module PCB assembly (MODULE/ASSEMBLY)

Initial state to associate flex to bare module (MODULE/INIT)

Reception at ITk institute (BAREMODULERECEPTION)

Bare module assembly (BAREMODULEASSEMBLY)

Not to be used for detector (UNUSABLE)

Hybridisation (HYBRIDISATION)

Testing on wafer (TESTONWAFER)

All Registered QC Tests

Check QC Flow

Back to top page of this component
