Database for ITk Pixel Module

Serial Number	20UPGFC0084804
ProdDB ID	489935…eaf6ba
LocalDB ID	622206cb80e95c000a45eaa2
Component Type	fe_chip
Parents	20UPGM22211262 20UPGB42000065
Children	No match.
Flags

Item	Value
Wafer serial number	20UPGFW0000331

Key	Data
QC Passed	True
Date	a year ago
component ObjectId	622206cb80e95c000a45eaa2
Stage	MODULE/INITIAL_WARM

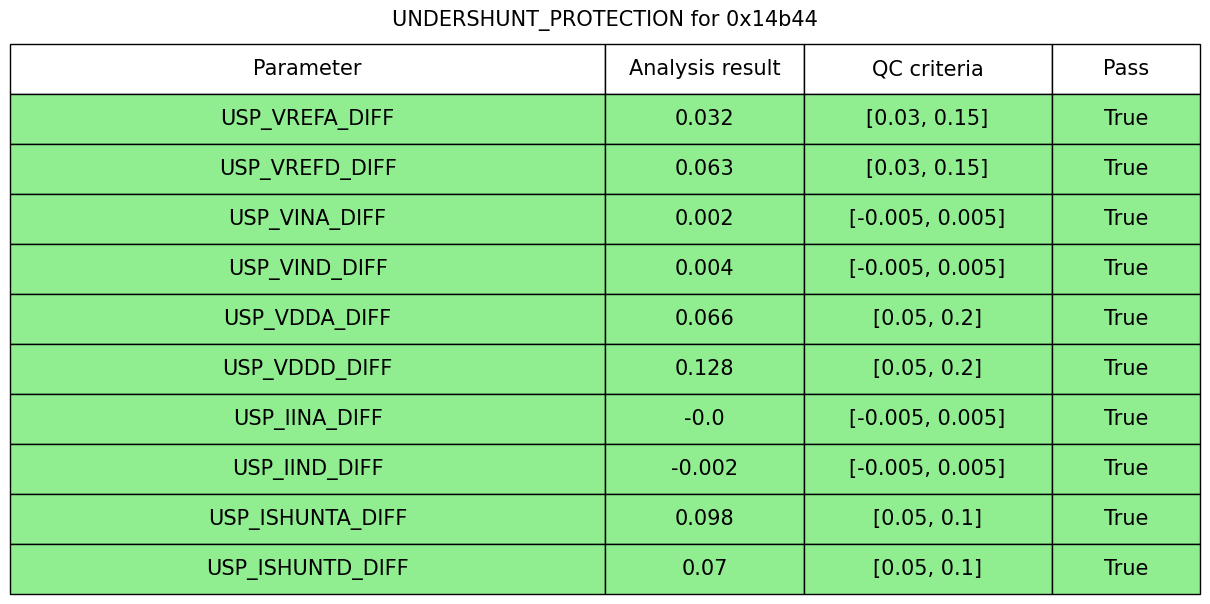

Test Type	UNDERSHUNT_PROTECTION
Institute ObjectId
User Name	Md ArifAbdullaSamy
ObjectId of this record	66a25af56c61429177014453
ObjectId of RAW record	66a25af16c6142917701444c
Tags	No tags

Key	Data
ANALYSIS_VERSION	mqat v2.2.5rc1
USP_IINA_DIFF	0
USP_IINA_NOM	0.2278
USP_IIND_DIFF	-0.002
USP_IIND_NOM	0.2993
USP_ISHUNTA_DIFF	0.098
USP_ISHUNTA_NOM	0.1101
USP_ISHUNTD_DIFF	0.07
USP_ISHUNTD_NOM	0.0806
USP_VDDA_DIFF	0.066
USP_VDDA_NOM	1.198
USP_VDDD_DIFF	0.128
USP_VDDD_NOM	1.1876
USP_VINA_DIFF	0.002
USP_VINA_NOM	1.47
USP_VIND_DIFF	0.004
USP_VIND_NOM	1.4684
USP_VREFA_DIFF	0.032
USP_VREFA_NOM	0.5916
USP_VREFD_DIFF	0.063
USP_VREFD_NOM	0.5892

Filename	Contents
output.log	Download
0x14b44.log	Download

Expand ProductionDB Record

66a369b2ebdf600043688f9b

state

ready

stateTs

2024-07-26T09:17:38.550Z

stateUserIdentity

8665-7663-1

date

2024-07-25T14:02:00.000Z

testType

id	63c858b76cde87003613a4e9
code	UNDERSHUNT_PROTECTION
name	Undershunt Protection
state	active

institution

id	59d60ee4ed67730005160cd9
code	GL
name	Glasgow University

user

id	6086c45fe87a6a000aa959a8
userIdentity	8665-7663-1
firstName	Md Arif
middleName	Abdulla
lastName	Samy

runNumber

66a25af56c61429177014453

passed

True

problems

False

properties

code	name	dataType	valueType	required	value	rangeMin	rangeMax
ANALYSIS_VERSION	Undershunt Protection Analysis Version	string	single	False	2.2.5rc1	None	None

results

code	name	dataType	valueType	arrayDimensions	additional	rangeMin	rangeMax	value	associateChild
USP_IINA_DIFF	USP Iin Analog Difference	float	single	None	None	None	None	0	None
USP_IINA_NOM	USP Iin Analog	float	single	None	None	None	None	0.2278	None
USP_IIND_DIFF	USP Iin Digital Difference	float	single	None	None	None	None	-0.002	None
USP_IIND_NOM	USP Iin Digital	float	single	None	None	None	None	0.2993	None
USP_ISHUNTA_DIFF	USP Ishunt Analog Difference	float	single	None	None	None	None	0.098	None
USP_ISHUNTA_NOM	USP Ishunt Analog	float	single	None	None	None	None	0.1101	None
USP_ISHUNTD_DIFF	USP Ishunt Digital Difference	float	single	None	None	None	None	0.07	None
USP_ISHUNTD_NOM	USP Ishunt Digital	float	single	None	None	None	None	0.0806	None
USP_VDDA_DIFF	USP VDDA Difference	float	single	None	None	None	None	0.066	None
USP_VDDA_NOM	USP VDDA	float	single	None	None	None	None	1.198	None
USP_VDDD_DIFF	USP VDDD Difference	float	single	None	None	None	None	0.128	None
USP_VDDD_NOM	USP VDDD	float	single	None	None	None	None	1.1876	None
USP_VINA_DIFF	USP Vin Analog Difference	float	single	None	None	None	None	0.002	None
USP_VINA_NOM	USP Vin Analog	float	single	None	None	None	None	1.47	None
USP_VIND_DIFF	USP Vin Digital Difference	float	single	None	None	None	None	0.004	None
USP_VIND_NOM	USP Vin Digital	float	single	None	None	None	None	1.4684	None
USP_VREFA_DIFF	USP Vref Analog Difference	float	single	None	None	None	None	0.032	None
USP_VREFA_NOM	USP Vref Analog	float	single	None	None	None	None	0.5916	None
USP_VREFD_DIFF	USP Vref Digital Difference	float	single	None	None	None	None	0.063	None
USP_VREFD_NOM	USP Vref Digital	float	single	None	None	None	None	0.5892	None

cts

2024-07-26T09:17:38.551Z

sys

cts	2024-07-26T09:17:38.551Z
mts	2024-10-07T05:30:46.339Z
rev	3

defects

comments

None
